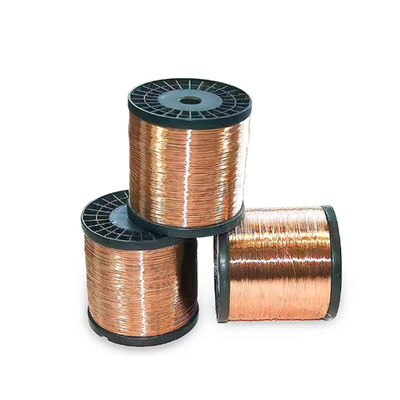

0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified

  • 0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified
  • 0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number Coaxial Cable
Minimum Order Quantity 1Roll
Price $0.20 - $1.00/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Material Copper Clad Aluminum Conductor CCA/CU/CCAM
Length 1000M/2000M MOQ 100Roll
Application Transmission Of CATV Signal And Large-capacity Communication Network Signal Product Name CCA
High Light

2.05MM Copper Clad Aluminum Wire

,

TUV Copper Clad Aluminum Wire

,

2.05MM copper clad aluminium cable
Leave a Message
Product Description
Product Description
Copper Clad Aluminum Magnesium Wire 0.12mm 0.18mm 0.6mm Stranded Raw Material 0.08-2.05MM CCAM CCA Wire
Technical Characteristics
Clad type
Plated type
15H
15A
Hard(H)
Anneal(A)
Size range(mm)
0.12-8.00
0.12-8.00
0.12-8.00
0.12-8.00
Copper content(%) by weight
36-40
36-40
6-15
6-15
Conductivity(%)at 20℃
55
55
35-43
35-43
DC Resistivity(Ωmm2/m)
0.03085
0.03085
0.04718
0.04718
Tensile strength (Mpa)
≥220
≥160
≥250
≥180
Elongation(%)
≥1
≥8
≥1
≥8
Density(g/cm3)
3.63
3.63
2.85
2.85
Specification


Copper in volume(%)
Copper in mass(%)
(%)


Length comparison


Density (g/cm3)
Max.DC resistivity Ω.mm2/m (20°C)


Conductivity (%IACS) Min
CCA-10%Copper volume


8~12


27


2.65:1


3.32


0.02743


63
CCA-15%Copper volume


13-17


37


2.45:1


3.63


0.02676


65
Copper wire
100
100
1:1
8.89
0.17241
100
AS A CABLE MANUFACTURE, WE NOT ONLY CAN SUPPLY CABLE MACHINE FOR YOU, WE ALSO SUPPLY YOU THE ONE-STOP SUPPLY FOR CABLE MATERIAL
SUCH AS :PVC ,HDPE ,LDPE,PP ,LSZH ,PBT,FRP,STEEL TAPE,STEEL WIRE ,OIL JELLY,CCA WIRES,COPPER WIRES.....


Application:
In high frequency signal transmission field, it is applied to:
* Standard Material of Conductor in CATV Coaxial Cable;
* 50 Ohm Radio Frequency Aerial;
* Leaky Cable;
* Soft Coaxial Radio Frequency Cable;
* Data Cable

In power transmission field, it can be applied to:
* Stranded wire;
* Power Cable;
* Control Cable;
* automotive cable;
* Building distribution wire;
* Busbar;
* Radio Frequency shielding;

In special electromagnetic wire, it can be applied to:
* Coils in motor and fans, mahjong machine, Loudspeakers
* Voice coils (e.g. in Headphone, Headset, …)
* Windings
Conductor
Characteristic
COPPER WIRE
(Annealed)
CCAM IRE
(Annealed)
ALUMINUM WIRE
(Annealed)
Copper Percent in Volume(%)
100
15
0
Density(g/cm3)
8.89
3.5
2.70
Length Comparison based on same Diameter and same weight
1:1
2.5:1
3.29:1
Resistivity(ohm.mm2/m)
0.01724
0.035
0.02740
Tensile strength(Mpa)
215-265
≥160
68-107
Elongation(%)
≥20
≥10
≥15



Classification
Copper clad aluminum wire according to the different types of copper layer volume ratio (10%, 15%, 20%) and soft and hard state (soft state A, hard state H)

type
commentary
value
10A
Soft copper-clad aluminum wire with a copper layer volume ratio of 10%
10%
10H
Hard copper-clad aluminum wire with a copper layer volume ratio of 10%
10%
15A
Soft copper-clad aluminum wire with a copper layer volume ratio of 15%
15%
15H
Hard copper-clad aluminum wire with a copper layer volume ratio of 15%
15%
20A
Soft copper-clad aluminum wire with a copper layer volume ratio of 20%
20%
20H
Hard copper-clad aluminum wire with a copper layer volume ratio of 20%
20%
0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified 0
0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified 1
Product Show
0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified 2
0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified 3
0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified 4
0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified 5
0.15mm - 1.00mm 0.08-2.05MM Copper Clad Aluminum Wire Cable TUV Certified 6
FAQ

Q: Are you a manufacturer?
A: Yes, we have our own factory and we promise to sell directly with competitive price. Welcome to visit our factory at any time.

Q: Can I get the product on my own request?
A: Of course.

Q: How is your after-sales service?
A: Our sales are online 24 hours a day.
