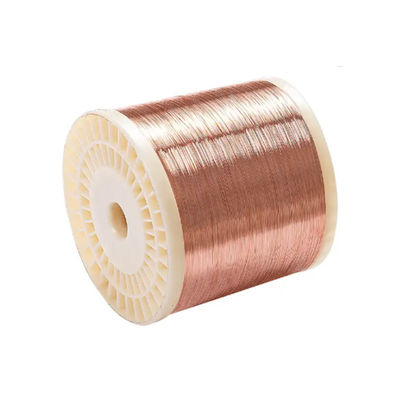

10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number Coaxial Cable
Minimum Order Quantity 1Roll
Price $0.20 - $1.00/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wire Gauge 0.1-15mm Model Number CCA CCAM HCCA
MOQ 100Roll Application Transmission Of CATV Signal And Large-capacity Communication Network Signal
Product Name Copper Clad Copper/CCC Processing Service Bending, Decoiling, Welding, Punching, Cutting
DELIVERY TIME 7-15 Days Purity 10-20%
High Light

HCCA Copper Clad Aluminum Wire

,

Copper Clad Aluminum Wire 0.12mm

,

CCAM copper coated aluminum wire

Leave a Message
Product Description

Low price 10-20% copper CCA CCAM HCCA raw material 0.12mm - 2.05mm for Electrical cable network cable coaxial cable



Product Description



Copper-clad aluminum wire is widely used in the cable TV industry, and copper-clad aluminum wire has become the standard material for coaxial cables in the United States. Because the high-frequency signal transmission runs on the outer layer of the wire, the copper-clad aluminum wire can replace the copper wire of the same specification. In low-frequency applications, the carrying capacity of copper-clad aluminum is 65% of that of copper wires of the same specification. Because of its light weight, it is also softer than copper when large wire sizes are required. Copper-clad aluminum is used for battery cables, welding cables, building cables and electromagnetic wires. Because copper-clad aluminum is a composite wire that combines the properties of two metals. Copper accounts for 10% of the cross section of the wire, and its thickness is at least 3.5% of the wire. The density of copper clad aluminum wire is 12 pounds per cubic inch (3.32 grams per cubic centimeter), which is 37% of copper wire. Because of its economy, light weight, easy operation and installation, it is very cost-effective to replace copper wires in practical applications, and can be made into various products, including concentric stranded wires, braided and meshed structures, so it is widely used .



Specializing in the production of copper clad aluminum, tinned copper clad aluminum, copper clad aluminum magnesium, copper clad aluminum busbar, copper clad aluminum (magnesium) wire busbar, small wire, copper clad copper, tinned wire and other products.



Copper-clad aluminum wire refers to a wire with an aluminum core wire as the main body and a certain proportion of copper layer on the outside. It can be used as a conductor for coaxial cables and a wire and cable conductor for electrical equipment. The aluminum wire has a small specific gravity, but its welding performance is not good, so the aluminum wire is covered with a copper layer. This copper-clad aluminum wire can not only take advantage of the small specific gravity of aluminum, but also improve the welding performance.



Physical proerty:
Type
Copper Volume
Copper in
Volume
Copper in
mass %
Length
Comparison
Density %
(g/cm3)
Max. DC
Resistivity
Ω.mm2/m(20℃)
Min.
Conductivity
(% IACS)
CCA -10% 8 ~ 12 27 2.65:1 3.32 0.02743 63
CCA -15% 13 ~ 17 37 2.45:1 3.63 0.02676 65
Copper 100 100 1:1 8.89 0.01724 100



10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable 0
Category : CCAM CCA CU

Conductor OD:
0.12mm 0.16mm 0.2mm 0.4-1mm

Copper Clad Aluminum and Magnesium alloy wire is an electrical conductor which has an outer sleeve of coppermetallurgically bonded
to a solid aluminum alloy core.

The combination of these two metals make it uniquely suited to many electrical applications
The mechanical property of CCAM fine wire can meet the requirement of producing stranded wire, braided wire(on high speed braiding machine).

We can produce CCAM wire based on customer’s requirement.
Technical Characteristics
Clad type
Plated type
15H
15A
Hard(H)
Anneal(A)
Size range(mm)
0.12-8.00
0.12-8.00
0.12-8.00
0.12-8.00
Copper content(%) by weight
36-40
36-40
6-15
6-15
Conductivity(%)at 20℃
55
55
35-43
35-43
DC Resistivity(Ωmm2/m)
0.03085
0.03085
0.04718
0.04718
Tensile strength (Mpa)
≥220
≥160
≥250
≥180
Elongation(%)
≥1
≥8
≥1
≥8
Density(g/cm3)
3.63
3.63
2.85
2.85

Specification



10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable 1
10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable 2
10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable 3
10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable 4
10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable 5

Packing & Delivery

10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable 6
10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable 7
10-20% CCAM HCCA Copper Clad Aluminum Wire 0.12mm - 2.05mm For Electrical Cable 8
