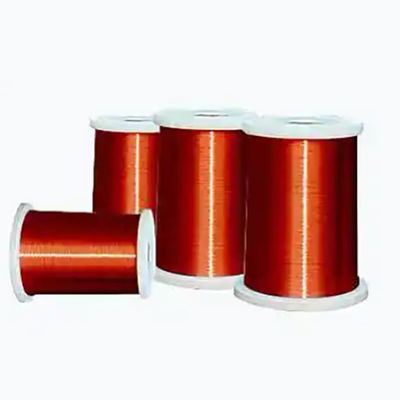

AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer

  • AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer
  • AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer
  • AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number Coaxial Cable
Minimum Order Quantity 1Roll
Price $311 - $552/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alloy Or Not Non-Alloy Application Motor Transformer
Product Name Enameled Aluminum Wire Packaging Packing Standard
Delivery Time 8-14 Days Colors Optional
Material Alminum Type List(aluminum Wire)
High Light

AWG Enameled Aluminum Wire

,

Motor transformer Enameled Aluminum Wire

,

Motor Transformer enamelled aluminum wire
Leave a Message
Product Description

Low price AWG rectangular flat round enameled aluminum wire winding Enameled copper clad aluminum wire for motor transfo

Product Description

Application fields of copper clad aluminum wire:

High frequency signal transmission:

Flexible coaxial radio frequency cable material; leaky cable inner conductor material; inner conductor material of network cable; inner conductor material of micro coaxial cable; preferred inner conductor material of cable television coaxial cable; S0s2 radio frequency cable, flexible radio frequency coaxial cable inner conductor material.



AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 0
Enameled aluminum wire

Diameter: 0.8-8mm
Temperature Class : 180 , 200 , 220
Standard : IEC 60317-0-2 ,IEC 60317-29 , MW36-A
UL NO : E345303
Bobbin :150kg wooden spool , plastic spool .
Application : Transformer , generator , refrigeration system
Specifications of enameled aluminum wire

(1)High resistance to heat shock
(2)High temperature
(3)Good performace at softening breakdown
(4)Suitable for high-speed automated routing
(5)Able to be direct weld, with no pinhole
(6)Resistive to high frequency, wearing, refrigerants and electronics corona
(7)High breakdown voltage, small dielectric loss angle
(8)Few customers are now on the market can produce side line! Throughout China on 1-2, we are one of them
(9)We can produce the standars of a(b): 0.2mm-8.0mm
Item
Description
Remark
Compliance
NEMA (National Electrical Manufacturers Association)IEC 60317 (International Electrotechnical Commission)
GB/T 6109.4 / GB 4074(国标)
JIS C 3202. (Japanese Industrial Standards)
FED JW-1177
Other regional compliance
IEC 60317-4;
IEC 60317-20;
IEC 60317-51.
NEMA MW 75-C;
NEMA MW 79-C;
NEMA MW 82-C.
Shape
Round, Rectangle, Flat, Square
Customized
Conductor Material
Copper, Aluminum, CCA, Alloy
Customized
Conductor Diameter
AWG #56 (0.012 mm) - #9 (2.878 mm)
International unit system (mm)
American Wire Gauge (AWG)
British Standard Wire Gauge (SWG)
Customized
Thickness standard
SINGLE, HEAVY, TRIPLE, QUADRUPLEGRADE 1, GRADE 2, GRADE 3
TYPE K, TYPE K2, TYPE K3, TYPE K4

CLASS 0,1,2,3
Customized
Insulation Material
Polyurethane UEW
Polyester PEW
Polyester imine EIW
Polyimide PIW
polyamide-imide EIAIW
QA
QZ
QZY
QXY
QXY
Bonding Material
Polyvinyl butyral 100-120Polyamide 150-180
Aromatic Polyamide 180-200
Polyamide-Epoxy 180-220
°C
Bonding Mechanism
Solvent/ methanol, ethanol
Heat/ hot-melt self-adhesive, hot air pipe and mold
bonding temp.
100 - 220 °C
Thermal class
90Y, 105A, 120E, 130B, 155F, 180H, 200/220C, 240
°C
Breaking strength
>290
g
DC Resistance
from 15
Ω/m
Elongation
>4
%
Min tensile strength
>35
g / N/mm²
Breakdown voltages
>300 (At temperatures of 20 °C relative humidity of 35%)
KV
Pinhole test(5m)
Customized
holes/3m
Heat shock
≥175, 200 @30min good cond.
°C
Cut through
≥170, 200, 230, 240, 265, 320 @ 30min good cond.
°C
Solderability
Easy soldering 2.0 seconds @ 370-470
°C
Features
◆ Excellent insulation.
◆ Very good thermal properties.
◆ Good mechanical characteristic.

◆ Self-bonding optional

Applications
Voice coils, Aerospace and military applications, etc.

Registered branding
FTNCORE

Certificate
ISO 9001, ISO 14001, RoHS, HF, REACH, TÜV Rheinland

Advantages of insulated aluminum wire
a)Square Wire are available
b)Varieties of wires,Stable quality
c)Timely,continuous after-sales service
d)Safe and variety packing terms are available
e)Double or Three Type Insultaions covered wires are available
f)NEMA/IEC/JIS/GB and any Local Standards base on requirements

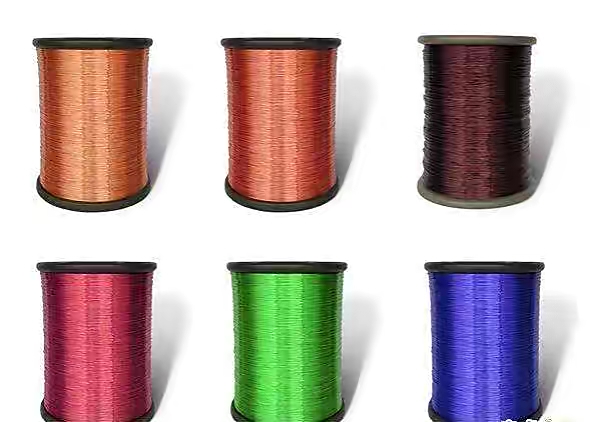

AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 1

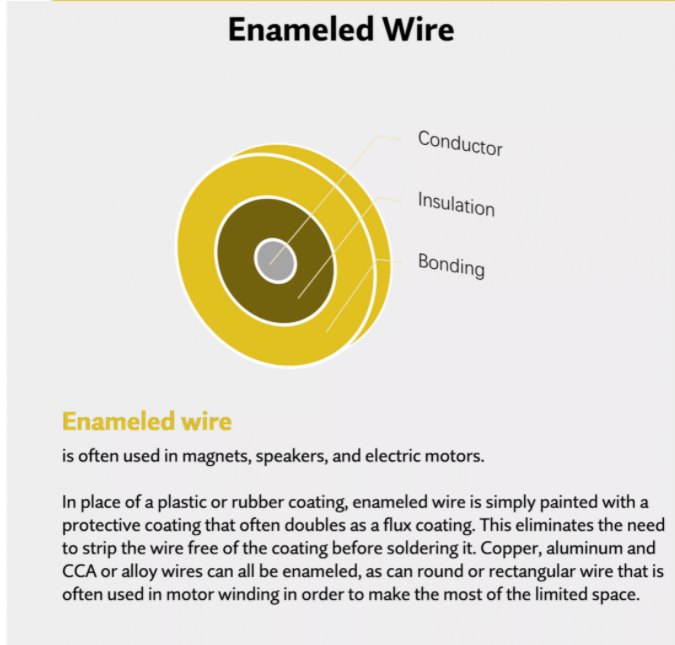

AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 2

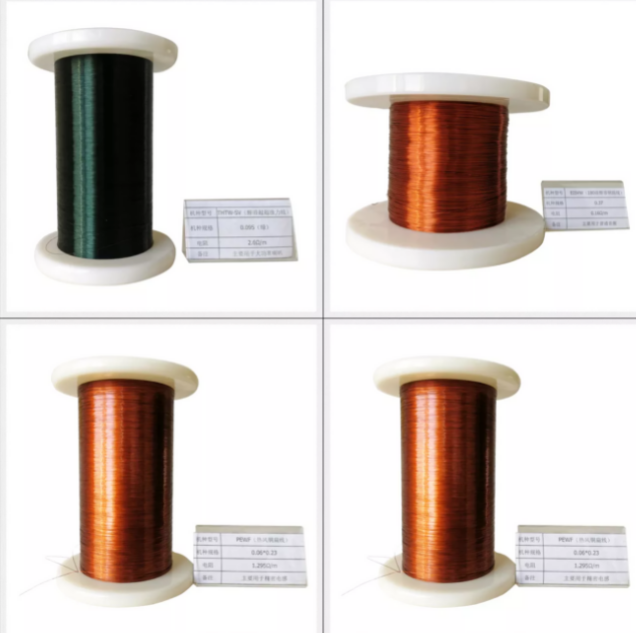

AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 3

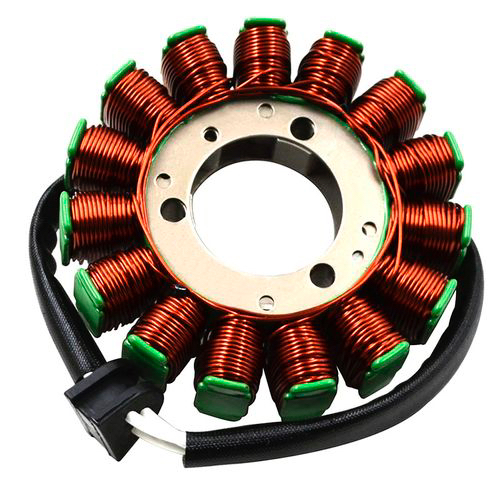

AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 4
Product Show

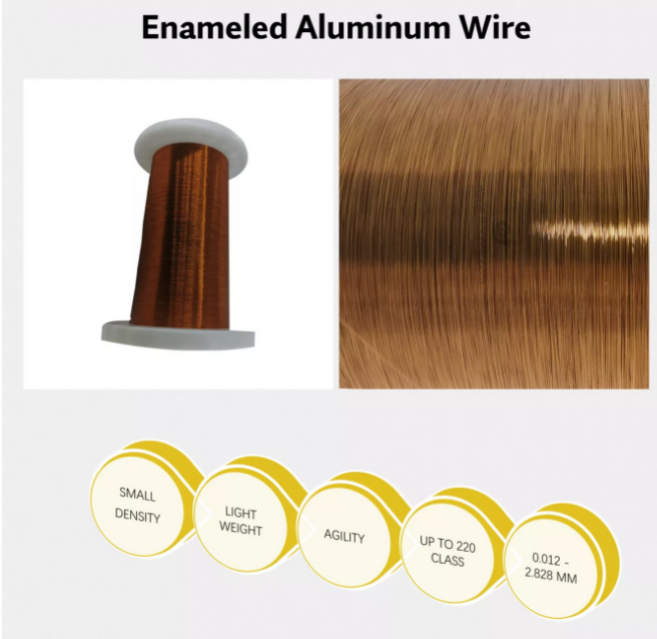

AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 5

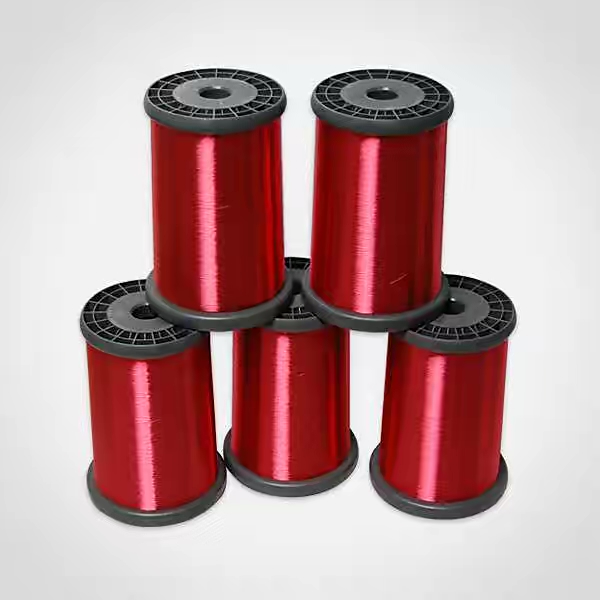

AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 6
AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 7
AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 8
AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 9
AWG Rectangular Flat Round Enameled Aluminum Wire For Motor Transformer 10



FAQ:
Q: Are you a manufacturer?
A: Yes, we have our own factory and we promise to sell directly with competitive price. Welcome to visit our factory at any time.

Q: Can I get the product on my own request?
A: Of course.

Q: How is your after-sales service?
A: Our sales are online 24 hours a day.
