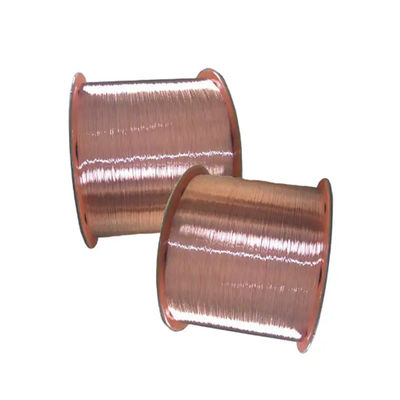

CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length

  • CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length
  • CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length
  • CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length
  • CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length
  • CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number Coaxial Cable
Minimum Order Quantity 1Roll
Price $0.20 - $1.00/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Cable Conductor Application Wire And Cable
Package Plastic Reel Packing Certification CE，CCC，SABS，TUV，RoHS
Conductor Material Copper Clad Aluminum Conductor CCA/CU/CCAM
Length 1000M/2000M MOQ 100Roll
High Light

Copper Clad Aluminium Cable 1000M

,

SABS Copper Clad Aluminium Cable
Leave a Message
Product Description

Product Description



CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 0
Category : CCAM CCA CU

Conductor OD:
0.12mm 0.16mm 0.2mm 0.4-1mm

Copper Clad Aluminum and Magnesium alloy wire is an electrical conductor which has an outer sleeve of coppermetallurgically bonded
to a solid aluminum alloy core.

The combination of these two metals make it uniquely suited to many electrical applications
The mechanical property of CCAM fine wire can meet the requirement of producing stranded wire, braided wire(on high speed braiding machine).

We can produce CCAM wire based on customer’s requirement.
Technical Characteristics
Clad type
Plated type
15H
15A
Hard(H)
Anneal(A)
Size range(mm)
0.12-8.00
0.12-8.00
0.12-8.00
0.12-8.00
Copper content(%) by weight
36-40
36-40
6-15
6-15
Conductivity(%)at 20℃
55
55
35-43
35-43
DC Resistivity(Ωmm2/m)
0.03085
0.03085
0.04718
0.04718
Tensile strength (Mpa)
≥220
≥160
≥250
≥180
Elongation(%)
≥1
≥8
≥1
≥8
Density(g/cm3)
3.63
3.63
2.85
2.85



Factory supplier CCA COPPER conductor Raw Material
Copper Clad Aluminum and Magnesium alloy wire is an electrical conductor which has an outer sleeve of coppermetallurgically bonded to a solid aluminum alloy core. The combination of these two metals make it uniquely suited to many electrical applications
The mechanical property of CCAM fine wire can meet the requirement of producing stranded wire, braided wire(on high speed braiding machine).We can produce CCAM wire based on customer’s requirement.



Specification



CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 1
CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 2
CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 3
CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 4
CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 5

Packing & Delivery

CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 6
CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 7
CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 8

Company Profile

00:00

00:10

HUIZHOU ADP OPTICAL COMMUNICATIONS CO.,LTD was established in 2002 and is a professional manufacturer of Power cable 1mm2-500mm2, Optical fiber cable 2-288 cores, Telecommunication Cable 1-1200 pairs, Coaxial Cable and accessories Our total manufacturing area covers 8000 square meters, with a lot of international standards cable equipment, such as high speed cross product lines, high speed cross supervisor data return line systems (Zumbach), and a Cat6 twisters system. Our products strictly adhere to UL,ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 20 technical personnel. Our annual production value researches to USD 200,000,000, giving us stable development and increased competitive power within the market. For the past ten years since its foundation. we have been sticking to"equality. mutual benefit and Quality First" foreign trade policies and we have established extensive business relation with countries and regions all over the world.Welcome to visit our factory.
CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 9
CE CCC SABS 0.2mm Copper Clad Aluminium Cable 1000M 2000M Length 10

FAQ

Q: Are you a manufacturer?
A: Yes, we have our own factory and we promise to sell directly with competitive price. Welcome to visit our factory at any time.

Q: Can I get the product on my own request?
A: Of course.

Q: How is your after-sales service?
A: Our sales are online 24 hours a day.
