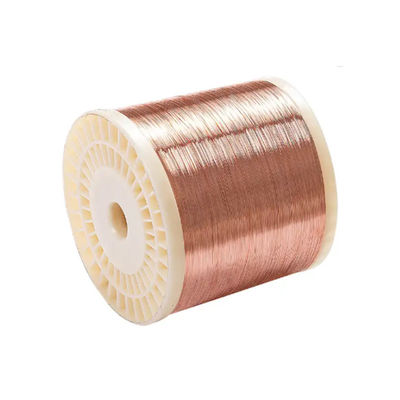

Copper Clad Aluminum Wire 0.18mm 0.6mm

  • Copper Clad Aluminum Wire 0.18mm 0.6mm
  • Copper Clad Aluminum Wire 0.18mm 0.6mm
  • Copper Clad Aluminum Wire 0.18mm 0.6mm
  • Copper Clad Aluminum Wire 0.18mm 0.6mm
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number Coaxial Cable
Minimum Order Quantity 1Roll
Price $0.20 - $1.00/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor CCA/CU/CCAM Length 1000M/2000M
MOQ 100Roll Application Transmission Of CATV Signal And Large-capacity Communication Network Signal
Product Name CCA Insulation Material PE
High Light

Copper Clad Aluminum Wire 0.18mm

,

0.6mm Copper Clad Aluminum Wire
Leave a Message
Product Description
Product Description
Copper Clad Aluminum Magnesium Wire 0.12mm 0.18mm 0.6mm Stranded Raw Material CCAM CCA Wire
Technical Characteristics
Clad type
Plated type
15H
15A
Hard(H)
Anneal(A)
Size range(mm)
0.12-8.00
0.12-8.00
0.12-8.00
0.12-8.00
Copper content(%) by weight
36-40
36-40
6-15
6-15
Conductivity(%)at 20℃
55
55
35-43
35-43
DC Resistivity(Ωmm2/m)
0.03085
0.03085
0.04718
0.04718
Tensile strength (Mpa)
≥220
≥160
≥250
≥180
Elongation(%)
≥1
≥8
≥1
≥8
Density(g/cm3)
3.63
3.63
2.85
2.85
AS A CABLE MANUFACTURE, WE NOT ONLY CAN SUPPLY CABLE MACHINE FOR YOU, WE ALSO SUPPLY YOU THE ONE-STOP SUPPLY FOR CABLE MATERIAL
SUCH AS :PVC ,HDPE ,LDPE,PP ,LSZH ,PBT,FRP,STEEL TAPE,STEEL WIRE ,OIL JELLY,CCA WIRES,COPPER WIRES.....


Application:
In high frequency signal transmission field, it is applied to:
* Standard Material of Conductor in CATV Coaxial Cable;
* 50 Ohm Radio Frequency Aerial;
* Leaky Cable;
* Soft Coaxial Radio Frequency Cable;
* Data Cable

In power transmission field, it can be applied to:
* Stranded wire;
* Power Cable;
* Control Cable;
* automotive cable;
* Building distribution wire;
* Busbar;
* Radio Frequency shielding;

In special electromagnetic wire, it can be applied to:
* Coils in motor and fans, mahjong machine, Loudspeakers
* Voice coils (e.g. in Headphone, Headset, …)
* Windings
Conductor
Characteristic
COPPER WIRE
(Annealed)
CCAM IRE
(Annealed)
ALUMINUM WIRE
(Annealed)
Copper Percent in Volume(%)
100
15
0
Density(g/cm3)
8.89
3.5
2.70
Length Comparison based on same Diameter and same weight
1:1
2.5:1
3.29:1
Resistivity(ohm.mm2/m)
0.01724
0.035
0.02740
Tensile strength(Mpa)
215-265
≥160
68-107
Elongation(%)
≥20
≥10
≥15
Copper Clad Aluminum Wire 0.18mm 0.6mm 0
Copper Clad Aluminum Wire 0.18mm 0.6mm 1
Product Show
Copper Clad Aluminum Wire 0.18mm 0.6mm 2
Copper Clad Aluminum Wire 0.18mm 0.6mm 3
Copper Clad Aluminum Wire 0.18mm 0.6mm 4
Copper Clad Aluminum Wire 0.18mm 0.6mm 5
Copper Clad Aluminum Wire 0.18mm 0.6mm 6



FAQ:
Q: Are you a manufacturer?
A: Yes, we have our own factory and we promise to sell directly with competitive price. Welcome to visit our factory at any time.

Q: Can I get the product on my own request?
A: Of course.

Q: How is your after-sales service?
A: Our sales are online 24 hours a day.
