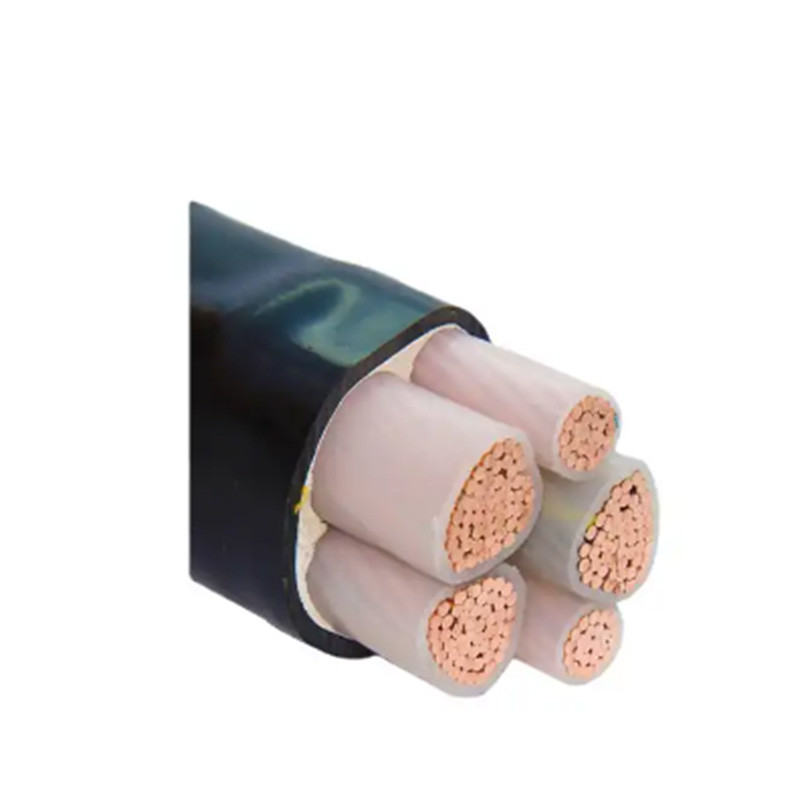

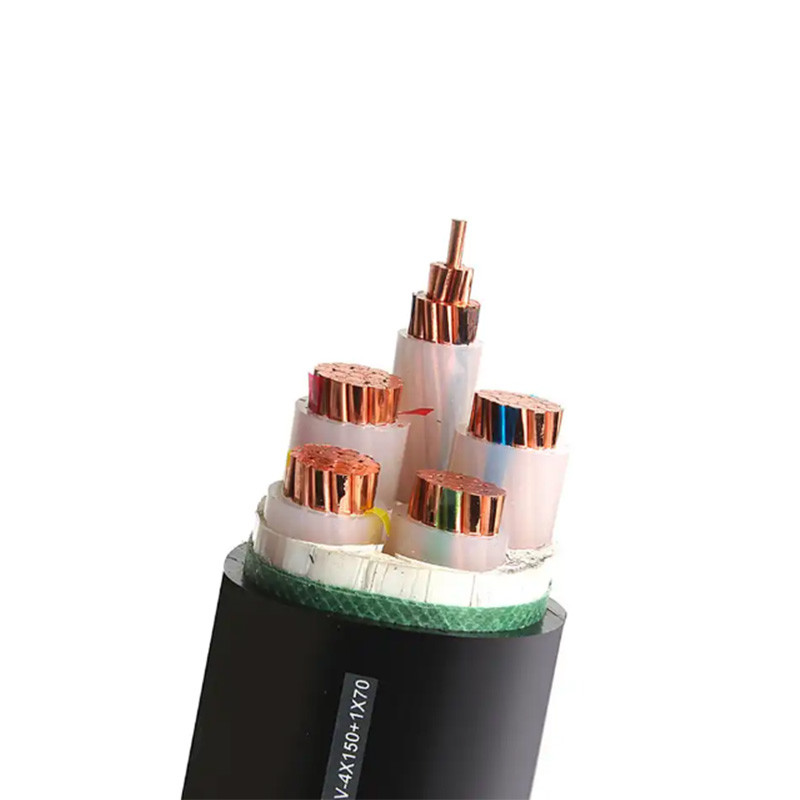

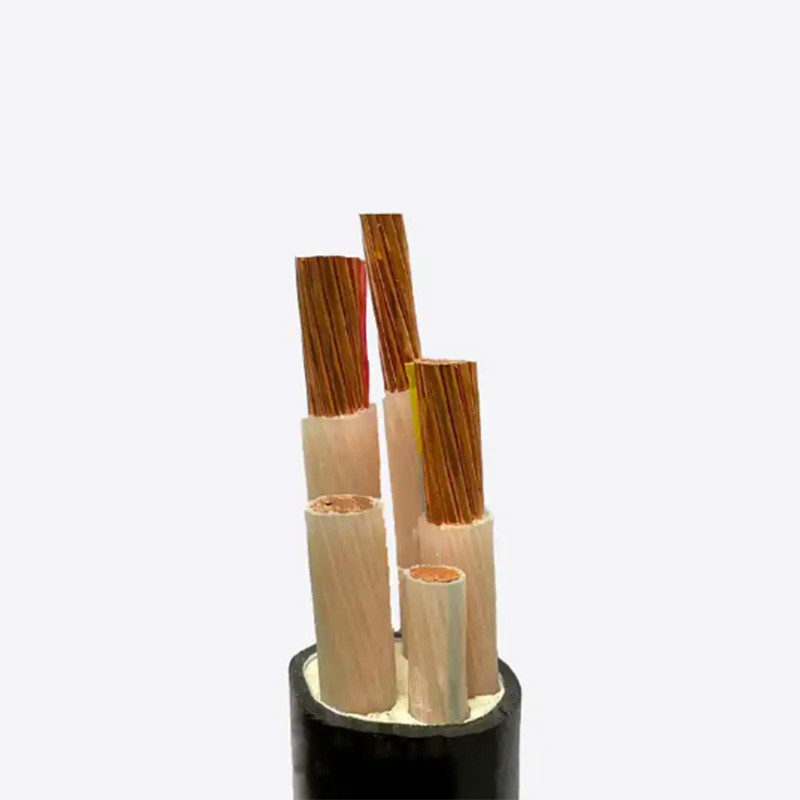

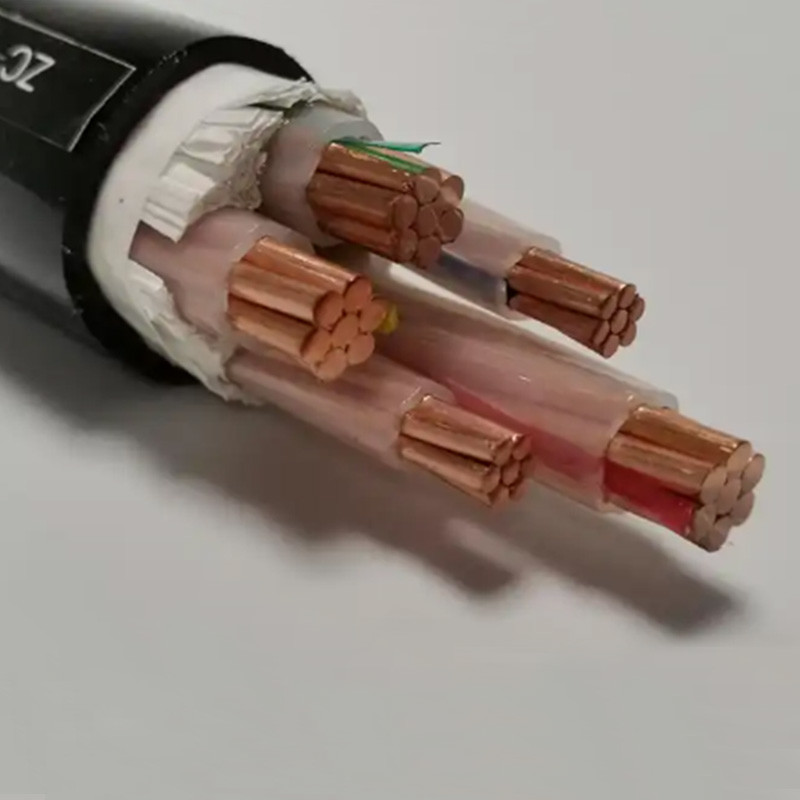

10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number YJV
Minimum Order Quantity 100 Meters
Price $0.35/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Industrial And Distribution Boards Material Standard Copper
Place Of Origin China Temperature 90℃
Color Requirement Type LOW VOLTAGE
Soil Thermal Resistivity 1.0°C.m/W. Direct Burial Depth 0.7m.
Cable Color Black Cable Core 4
Cable Diameter 2.5mm Cable Flame Retardant Yes
Cable Flame Retardant Rating V-0 Cable Jacket PVC
Cable Length 10m Cable Shield Unshielded
Cable Structure Twisted Cable Temperature Rating 105℃
Cable Type Single-Core Current 10A
Insulation Material PVC Power 2200W
Voltage 220V
High Light

1 Core power cable insulation

,

10mm2 armoured xlpe cable

,

630mm2 armoured xlpe cable

Leave a Message
Product Description

Cu Conductor XLPE Insulated Power Cable 10mm2 YJV 1Core/1.0-630mm2

Products Description

Model: YJV

Voltage level: 0.6/1kV

Cable structure: copper conductor / XLPE insulation / PVC outer sheath

Insulation material: XLPE cross-linked polyethylene

Number of cable cores: 1 core, 2 cores, 3 cores, 3+1 cores, 4 cores, 3+2 cores, 4+1 cores, 5 cores



XLPE insulated power cables have excellent thermal-mechanical properties, excellent electrical properties and chemical corrosion resistance, and also have the advantages of simple structure, light weight, and laying without drop restrictions. They are widely used in urban power grids, mines and Novelty cables from the factory.
Cable insulation-cross-linked polyethylene is to use chemical and physical methods to convert polyethylene with a linear molecular structure into a cross-linked polyethylene with a three-dimensional network structure, thereby greatly improving the thermomechanical properties of polyethylene, thereby maintaining excellent electrical performance.
The maximum rated operating temperature of XLPE insulated power cable conductors is 90°C, which is higher than that of PVC insulated and PE insulated cables, so the carrying capacity of the cables is further improved.

10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 0

10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 1




YJV
0.6/1kv YJV 1core/1.0-630mm2 Cu Conductor XLPE insulated PVC sheathed 10mm2 power cable .
Product model and application
Model

Name

APPLICATION
Copper core

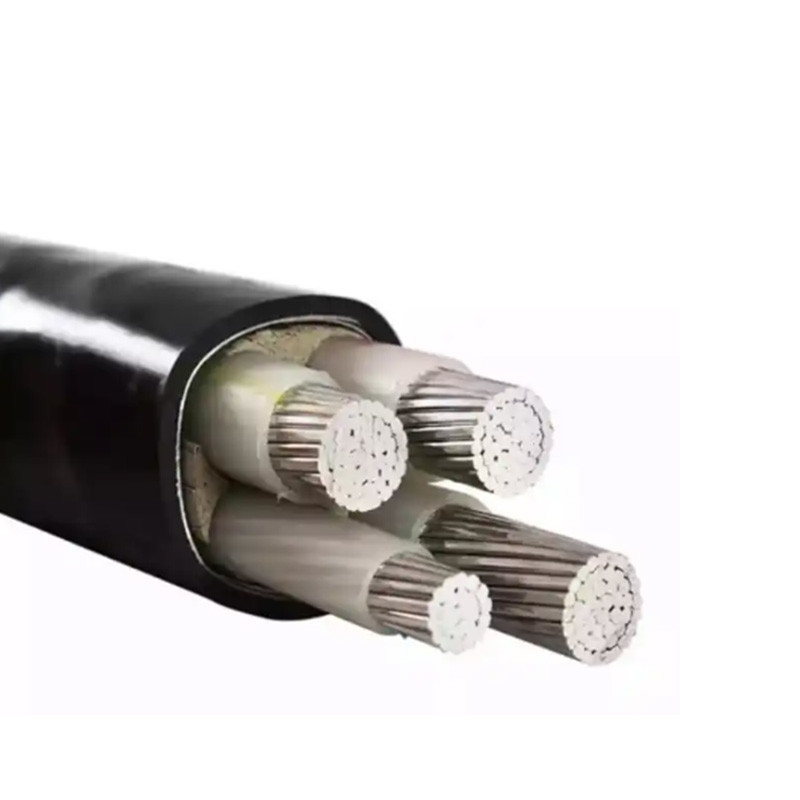

aluminium core
YJV
YJLV
XLPE insulated PVC sheathed power cable
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
YJY
YJLY
XLPE insulated PE sheathed power cable
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
YJV22
YJLV22
XLPE insulated steel tape armored PVC sheathed power cable
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
YJV23
YJLV23
XLPE insulated steel tape armored PE sheathed power cable
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
YJV32
YJLV32
XLPE insulated fine steel wire armored PVC sheathed power cable
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 2
10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 3
10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 4
10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 5
More Models
10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 6
Application

For laying in doors,in tunnel and in ducts,able to bear a certain traction during laying but not external mechanical force .It is impermissible to lay single core cable in magnetic ducts.

10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 7
Quality Inspection
10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 9
10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 10
Certifications
10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 11
10mm2 Armoured Xlpe Cable YJV 1 Core /1.0-630mm2 12
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc

2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.

3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.

5. Are you a factory or trading company?
We are a factory located in Wuxi, Jiangsu, integrating R&D, manufacturing and sales of various wires and cables.


Product advantages
1. Industry leader with strong strength
2. Complete varieties and sufficient inventory
3. Professional team, service first
4. High-quality products, high-quality prices
5. Efficient logistics, fast and safe
