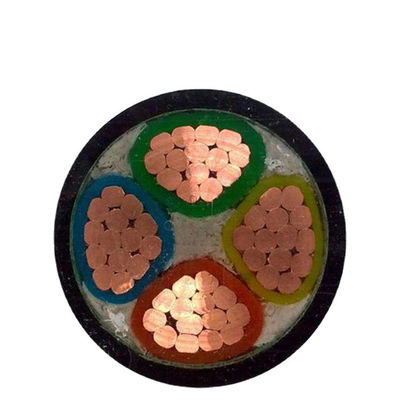

Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number VV
Minimum Order Quantity 100 Meters
Price $0.3/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number VV Application Underground
Conductor Type Solid Product Name Copper Core PVC Insulation Wire
Conductor Copper Jacket Pvc Jacket
Material Standard Copper Usage Industrail Usage
Type Insulated Conductor Material Copper
Insulation Material Other Color Requirement
Insulation PVC Insulation Cable Standard GB\CCC\IEC\UL
Core 1/2/3/4/5 Cores
High Light

Vlv22 120mm 4 core cable

,

120mm 4 core cable IEC60502

,

Electrical Power Cable IEC60502

Leave a Message
Product Description
Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502 0
Products Description
1.Standards
The cable is manufactured according to the standard GB 12706-91 or IEC60502.
It is suitable to be installed in the power transmission and distribution lines with rated voltage below(including) 0.6/1KV (U0/U).
2.Application
For laying indoors, in tunnels and in ducts, unable to bear external mechanical forces.
3.Operation Characteristic
The maximum operating temperature of the cable for long period use shall not exceed 70 ℃,the circuit temperature for 5 seconds not exceed 160 ℃. The cable is not limited by the difference of level when installed and the ambient temperature shall not be below 0℃. The minimum bending radius for single core cable is 40(D+d)mm, for multi core cable is 30(D+d)mm, (D and d are nominal outer diameter of main conductor of cable respectively if the main conductor is not round d=1.13 /s.S is the moninal cross sectional area of the main conductor ductor in mm).The single core armoured cable are only suitable for D.C.lines.

Cable model and name

Model Name Scope of application
VV Copper core PVC insulated PVC sheathed power cable Indoors, tunnels and cable trenches, etc., do not need to bear external mechanical force. Single-core cables are not permitted to be laid in magnetic conduits.
VLV Aluminum core PVC insulated PVC sheathed power cable
VY Copper core PVC insulated PE sheathed power cable
VLY Aluminum core PVC insulated PE sheathed power cable
Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502 1








VV
PVC insulated PVC Sheathed power cable
Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502 2
Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502 3
Application
Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502 4
Quality Inspection
Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502 6
Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502 7
Company Profile
Certifications
Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502 8
Vv Vlv Vv22 Vlv22 120mm 4 Core Cable Low Voltage Electrical Power Cable IEC60502 9
Product packaging
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 35KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc

2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.

3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
