XLPE Insulated Power Cable 500mm2
| Place of Origin | Jiangsu China |
|---|---|
| Brand Name | Jiangnan |
| Certification | CE，CCC，SABS，TUV，RoHS |
| Model Number | YJV |
| Minimum Order Quantity | 100 Meters |
| Price | $0.55/meter |
| Packaging Details | Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters) |
| Supply Ability | 50000meters<7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | YJV | Application | For Laying In Doors,in Tunnels And In Ducts |
|---|---|---|---|
| Conductor Type | Stranded | Material | Standard Copper |
| Core | 1Core | Temperature | 90℃ |
| Usage | Building Wire Home Appliances | Type | Insulated |
| Conductor Material | Copper | Insulation Material | PVC |
| Certification | IEC GB | Packing | 100m/roll |
| Voltage | 0.6/1KV | Color | Requirement |
| Jacket | PVC Jacket | ||
| Highlight | XLPE Insulated Power Cable 500mm2,500mm2 xlpe electrical cable |
||
Product Description

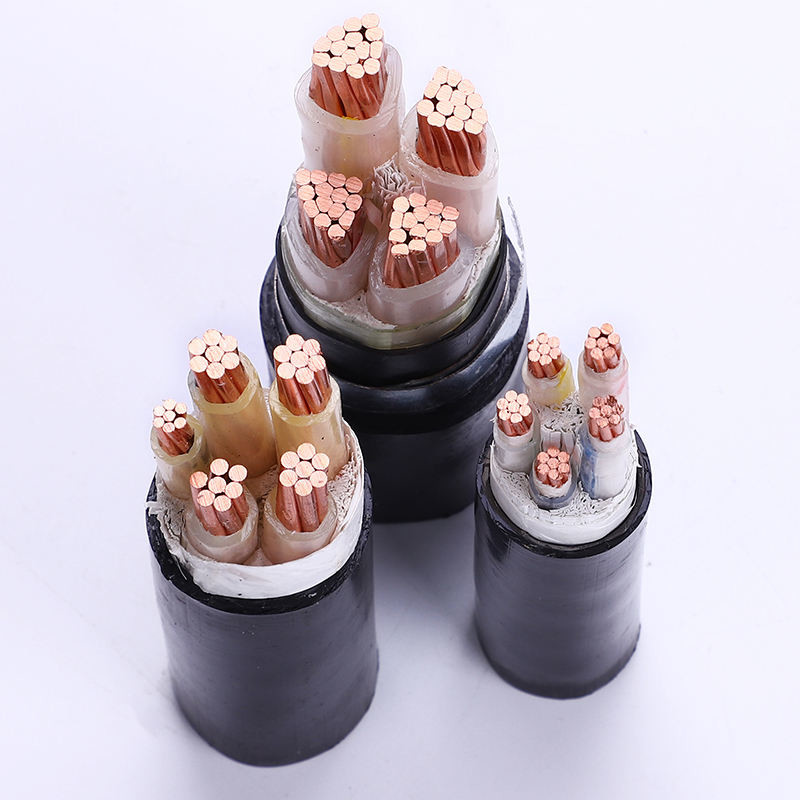

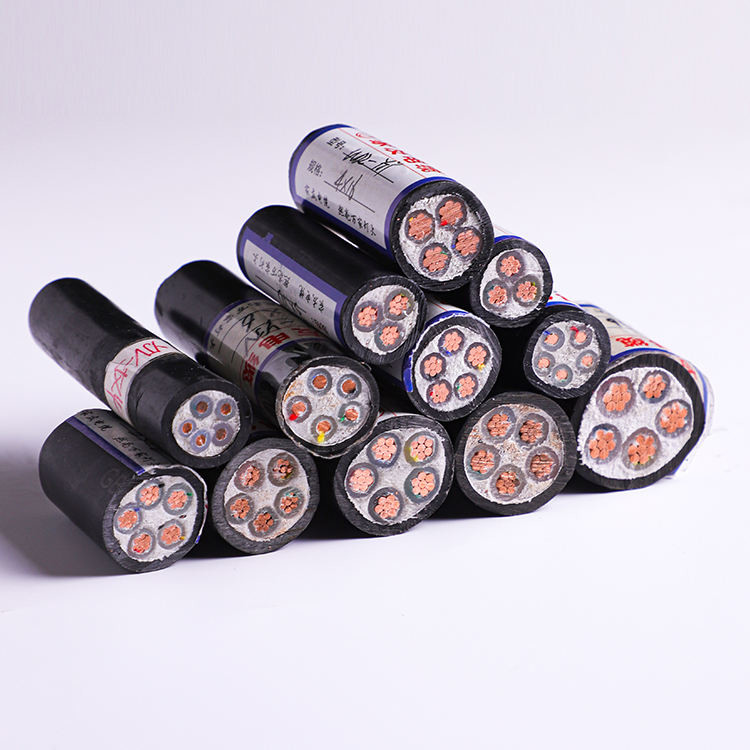

0.6/1kv YJV 1core/500mm2 Cu Conductor XLPE insulated PVC sheathed 500mm2 power cable
Products Description
1.Standards
The cable is manufactured according to the standard GB 12706-91 or IEC60502.It is suitable to be installed in the power transmission and distribution lines with rated voltage of 0.6/1KV(U0/U).
2.Application
For laying in doors,in tunnel and in ducts,able to bear a certain traction during laying but not external mechanical force .It is impermissible to lay single core cable in magnetic ducts.
3.Operation Characteristic
Maximum rated temperature The maximum operating temperature of cores shall not exceed 90"C, when the cable is used for long period. The temperature of cores shall not exceed 250℃ at short circuit fors seconds. The installation of cables is not limited by the difference of level along the route. The ambient temperature should not be below 0℃ during installation. The minimum bending radius shall not be less than 10 times of the cable overall diameter when laying.
Storage and transportation
During storage, the cable should be packaged in a standardized manner to avoid long-term exposure to the sun in the open air, and the two ends should be reliably sealed. Long-term storage in a humid environment is not allowed, and the cable reel cannot be laid flat. The height of the tray should be considered during transportation and should be fixed effectively. During hoisting, several trays are not allowed to be hoisted at the same time, and it is strictly forbidden to push down from a high place.
During storage, the cable should be packaged in a standardized manner to avoid long-term exposure to the sun in the open air, and the two ends should be reliably sealed. Long-term storage in a humid environment is not allowed, and the cable reel cannot be laid flat. The height of the tray should be considered during transportation and should be fixed effectively. During hoisting, several trays are not allowed to be hoisted at the same time, and it is strictly forbidden to push down from a high place.
Laying and installation
Special tools should be used for cable laying, such as pay-off racks, guide rollers, etc., to prevent mechanical damage during laying and keep away from heat sources.
When the cable is laid through the pipe, the inner diameter of the pipe shall not be less than 1.5 times the outer diameter of the cable. When multiple cables are passed through the pipe, it is forbidden to squeeze the cables. The total area of the cables shall not exceed 40% of the total area of the pipe.
Product model and application
More Models
Application
Quality Inspection
Certifications
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc
2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
5. Are you a factory or trading company?
We are a factory located in Wuxi, Jiangsu, integrating R&D, manufacturing and sales of various wires and cables.
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc
2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
5. Are you a factory or trading company?
We are a factory located in Wuxi, Jiangsu, integrating R&D, manufacturing and sales of various wires and cables.
