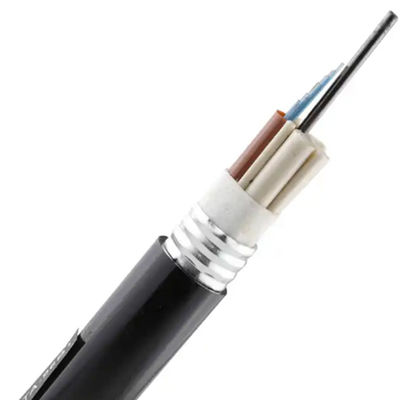

Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km

  • Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km
  • Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km
  • Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km
  • Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number Fiber optic cable
Minimum Order Quantity 1 Roll
Price $0.08 - $0.10/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number GYXTC8S Place Of Origin Jiangsu China
Number Of Conductors ≥ 10 Application Networking
Jacket LSZH PVC Color Black
Fiber Count 2-288 Cores Certification CE/ROHS/ISO9001
High Light

armoured fiber optic cable GYXTC8S

,

GYXTC8S 24 core armoured cable

,

armoured fiber optic cable 1km
Leave a Message
Product Description
Product Details

The structure of GYTC8S optical cable is to put 250um optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforcing core, loose tubes (and filling ropes) are twisted around the central reinforcing core to form a compact and circular cable core, and the cable core is longitudinally wrapped with a layer of plastic-coated steel strip (PSP), and steel wire The stranded wires are integrated into a figure-eight polyethylene sheath.

Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km 0
Cable Data
1. Structure Characters:
* Water proof layer between steel tape and cable core
* “8”Figure cross section
* Steel messenger wire
* Double coated PE corrugated steeltape under PE sheath

2.Properties:
* Excellent wter proof layer
* Steel tape armored, excellent anti-crush properties
* Good anti-bullet properties
* Messenger wire as the supoort member made excellent anti-pull performance and easy installation
Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km 1
Specifications
Fiber range
Steel messenger specs
Cable outer diameter
Messenger wire outer diameter
Min. Bending radius
Allowable tension
Safe tension
Max. Crushed loading force




Static
Dynamic


Short term
Long term
2-12
1x7-3.0
8.3
5.0
10D
20D
3000
1000
2000
1000



Number of cores structure outer diameter weight(kg/km) Tensile force(N) Flattening force(N) bending radius(mm)
(mm) long term short term long term short term static dynamic
2-30 1+5 6.4×9.8 139 1500 5000 300 1000 10D 20D
32-36 1+6 6.4×10.3 152 1500 5000 300 1000 10D 20D
38-60 1+5 6.4×10.7 152 1500 5000 300 1000 10D 20D
62-72 1+6 6.4×10.8 172 1500 5000 300 1000 10D 20D
74-84 1+7 6.4×11.3 186 1500 5000 300 1000 10D 20D
86-96 1+8 6.4×12.9 198 1500 5000 300 1000 10D 20D
Product Show
Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km 2
Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km 3



FAQ

 Single Mode 24 Core Armoured Fiber Optic Cable GYXTC8S 1km 4
