Single Mode 2core Adss Gyty53 FTTH Fiber Optic Cable For Networking

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number Fiber optic cable
Minimum Order Quantity 1 Roll
Price $0.08 - $0.10/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number GYTA53 Place Of Origin Jiangsu China
Number Of Conductors ≥ 10 Application Networking
Type Fiber Optic Cable Color Black
Fiber Count 2-288 Cores Certification CE/ROHS/ISO9001
High Light

Gyty53 FTTH Fiber Optic Cable

,

2core FTTH Fiber Optic Cable

,

Gyty53 Adss Fiber Optic Cable

Leave a Message
Product Description

24 Core Fiber Optic Cable Single Mode 2core Adss Gyty53 Outdoor Dual 8 Core Fiber Optic Cable Price Per Meter

Product Details
Single Mode 2core Adss Gyty53 FTTH Fiber Optic Cable For Networking 0
Cable Properties
1. Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying
environment.
2. Optical fiber ribbon have accurate geometric dimension.
3. Loose tube has good flexibility.
4. Easy to draw out, splice and clean, low cost of installation.
5. Reliable water blocking performance.
6. Corrugated steel tape armoring enhance the water blocking and mechanical performance.
7.Recmmeded laying methods: direct-burial
Specification
Model Number
GYTA53
Place of Origin
Guangzhou, China
Brand Name
SZADP
Fiber Range
2-288
Type
Fiber Optic Cable
Application
long-distance communication
Jacket color
Black Color
Operating temperature
-20℃~+70℃
Fiber Type
G652D, G657A1

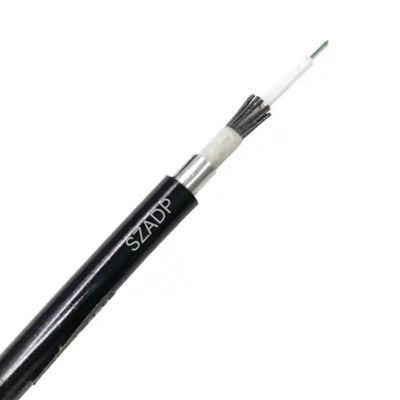

The structure of GYTY53 Asia-Pacific optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.

The center of the cable core is a metal strengthening core. For some optical cables with a certain number of cores, a layer of polyethylene (PE) needs to be extruded outside the metal strengthening core.

Loose tubes (and filler ropes) are stranded around a central reinforcing core to form a compact and circular core with gaps in the core filled with water-blocking filler.

A layer of polyethylene inner sheath is extruded on the outside of the cable core, and the polyethylene sheath is extruded into a cable after being wrapped longitudinally by double-sided plastic-coated steel tape (PSP).



Product Show
Single Mode 2core Adss Gyty53 FTTH Fiber Optic Cable For Networking 1
Single Mode 2core Adss Gyty53 FTTH Fiber Optic Cable For Networking 2
Single Mode 2core Adss Gyty53 FTTH Fiber Optic Cable For Networking 3
Single Mode 2core Adss Gyty53 FTTH Fiber Optic Cable For Networking 4

FAQ:
Q: Are you a manufacturer?
A: Yes, we have our own factory and we promise to sell directly with competitive price. Welcome to visit our factory at any time.

Q: Can I get the product on my own request?
A: Of course.

Q: How is your after-sales service?
A: Our sales are online 24 hours a day.
