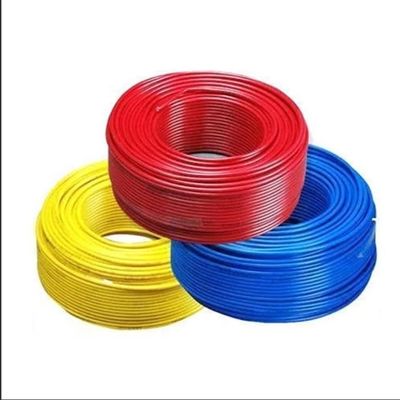

Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated

  • Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated
  • Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated
  • Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated
  • Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number RV-105
Minimum Order Quantity 1 Roll
Price $0.18/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number RV-105 Application Underground
Conductor Type Solid Product Name RV-105
Conductor Copper Jacket Pvc
Packing 100/200/305/500Meter Standard GB/T5023
Type Insulated Conductor Material Copper
Insulation Material PVC Color Requirement
Rated Voltage 450/750 Rated Temperature 105
High Light

105 Degrees Flexible Power Cable

,

Heat Resistant Flexible Power Cable

,

105 Degrees PVC Insulated Power Cable
Leave a Message
Product Description

China Best Selling Copper Core Heat-Resistant 105 Degrees PVC Insulated Flexible Connecting Wire Cable And Wire

Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated 0
Products Description

RV-105 Cable is also known as RV-105 Red, RV-105 Yellow, RV-105 Blue, RV-105 Green, RV-105 Black, RV-105 Dual, RV-105 White, RV-105 Brown, RV-105 Gray , RV-105 orange, RV-105 purple, the Chinese name of the RV-105 cable is heat-resistant 105 ℃ copper conductor PVC insulated PVC insulated connection cord



RV-105 cable voltage
300/500V, 450/750V,



Common Specifications for RV-105 Cables
1*0.12;1*0.2;1*0.3;1*0.4;1*0.5;1*0.75;1*1.0;1*1.5;1*2.5;1*4

Product Name
Multiple strands copper conductor PVC insulated wire
Material
Copper+PVC
Colour
red/yellow/blue/green/yellow green
Adaptable Voltage (v)
450/750
Specification
2.5㎟--70㎟
MOQ
100m
Global recruitment of brand agents ,OA Payment acceptable
1. Product use
A)The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and
including 450/750V.
B)The permissible continuous operating temperature of cables: BV-105 is not more than 150C, others are not more than 70℃
2.Manufacture length:
A)Coil length of cable (wire) is 100m, filled reel length not less than 100m. Short length not less than 10m can be delivered.
B)Any length can be delivered against agreement. Length error not more than +0.5%
3.Product structure, size and reference data
Construction and Dimension( BVR) Rated Voltage:450/750V
Nomnialcross-sectionakarea mm²
Construction of conductor No.ofwires/dia mm
Insulation thickness mm
Outer diameter mm
Max.d.c, resistance at 20℃ Ω /km
Min.insulation resistance at70℃ MΩ-km
Current ratingin air at 25℃ A
Approx.cable weight kg/km
2.5
19/0.41
0.8
4.2
7.41
0.011
34
33
4
19/0.52
0.8
4.8
4.61
0.009
45
49
6
19/0.64
0.8
5.6
3.08
0.0084
58
71
10
49/0.52
1
7.6
1.83
0.0072
79
125.5
16
49/0.64
1
8.8
1.15
0.0062
111
181
25
98/0.58
1.2
11
0.727
0.0058
146
302
35
133/0.58
1.2
12.5
0.524
0.0052
180
395
50
133/0.68
1.4
14.5
0.387
0.0051
225
544
70
189/0.68
1.4
16.5
0.268
0.0045
280
723
Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated 1
Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated 2
Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated 3
Application
Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated 4
Quality Inspection
Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated 6
Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated 7
Certifications
Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated 8
Heat Resistant 105 Degrees Flexible Power Cable PVC Insulated 9
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc

2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.

3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
