300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number RVS
Minimum Order Quantity 100 Meters
Price $0.16/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number ZR-RVS Application Heating
Conductor Type Solid Product Name Copper Core PVC Insulated PVC Sheathed Flat Cables
Conductor Copper 99.995% Material Copper+PVC
Rated Voltage 300/300V 300/500V Usage Building Wire Home Appliances
Type Insulated Conductor Material Other
Insulation Material PVC Color Requirement
Insulation PVC Insulation Cable Jacket Jacket
Standard GB/T 5023.3-2008 Rated Temperature 70'C
High Light

2.5mm Fire Alarm Cable

,

RVS Flexible Twisted Pair Cable

,

RVS Fire Alarm Cable

Leave a Message
Product Description

300/500V 2 Core 0.5 0.75 1 1.5 2.5 mmCopper Conductor PVC Insulated fire alarm cable RVS twisted pair Flexible Wire

Products Description

The letter S stands for twisted pair
The letter R stands for soft wire
The letter V stands for PVC (insulator)
Standard: JB/T 8734.3-2016


● ODM/OEM service available based on official & legal authorization.
●Strict quality control system.
●Rapid delivery and feedback.
●Excellent quality with reasonable price.
●Professional teamwork service for you actively.
●Stock available, Free sample is available.

RVVB Copper core PVC insulated PVC sheathed flat flexible connecting cable

1.Standard
This cable is manufactured acoording to the requirements of Chinese standard GB5023-97 or IEC227(1979) and used for power devices and illuminating system, operating at rated voltage up to 450/750V(and lower).

2.Operation Characteristic
These products are used for connecting house eletric appliances , small electric tools ,meters, and instruments and lighting line at A.C.Rated voltage up to 450/750V( and lower). The permissible continuous operating temperature: RV-105 not nore than 105°C,others not more than 70℃.
Type
RVS;RV;RVV;RVB;RVVP;RV-105
U0/U
0.6/1kv
Max.Working temperature
The long-term operationg temperate of conductor shall be 90 ℃
Conductor
Copper/Aluminum
Insulation Material
PVC/XLPE
Sheath
PVC
Cores
Multi cores
Packing
As your requirement
Remark
OEM/ODM
Place of Origin
China

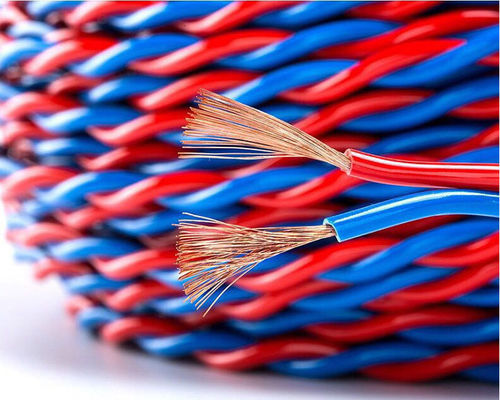

The full name of RVS wire is copper core PVC insulated stranded connection flexible wire, twisted multi-strand flexible wire, referred to as twisted pair, commonly known as "flower wire".



Structure
Conductor: Stranded bare copper wire (BC) or tinned copper wire (TC)
Insulation: PVC insulating material

300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 0
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 1
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 2
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 3
300/300V RVS Copper core PVC insulated twisted flexible connecting wires
Conductor Cores
Standard Section
external diameter
20℃ Upper Limit Of Conductor Resistance
Suggest loads (<)
Rated Voltage (V)
Meter
2x0.3mm2
4.9mm
Copper 69.2 Standard Section
Tin plated copper 71.2
600W
300/300V
100M
2x0.5mm2
5.3mm
39
1000W
300/300V
100M
2x0.75mm2
6.0mm
26
1500W
300/500V
100M
2x1.0mm2
6.6mm
19.5
2000W
300/500V
100M
2x1.5mm2
7.5mm
13.3
3000W
300/500V
100M
2x2.5mm2
8.6mm
7.98
5000W
300/500V
100M
2x4.0mm2

4.95
8000W
300/500V
100M
2x6.0mm2

3.3
12000W
300/500V
100M
2x10.0mm2

1.19
20000W
300/500V
100M
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 4
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 5
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 6
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 7
More Products
Application
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 9
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 10
Company Information
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 11
Certifications
300/500V 2 Core 0.5 - 2.5mm Fire Alarm Cable RVS Flexible Twisted Pair Cable 12
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 35KV and below power cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc

2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.

3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
