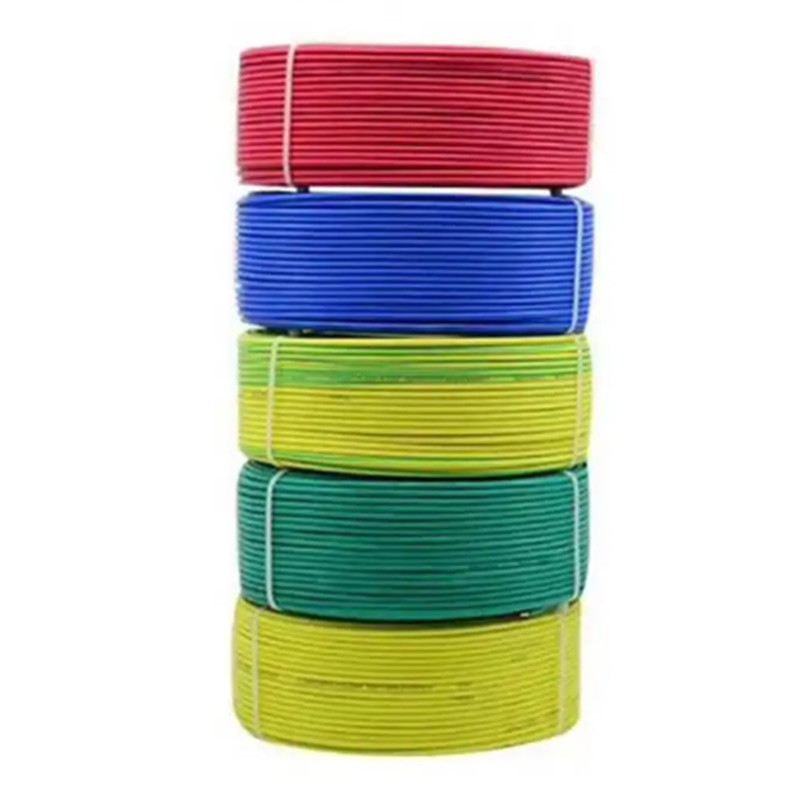

High Temperature Resistant Thhn Wire Nylon Jacket For Commercial & Industrial
| Place of Origin | Jiangsu China |
|---|---|
| Brand Name | Jiangnan |
| Certification | CE，CCC，SABS，TUV，RoHS |
| Model Number | Nylon Coated Electric Wire |
| Minimum Order Quantity | 1 Roll |
| Price | $0.10 - $2.00/ meter |
| Packaging Details | Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters) |
| Supply Ability | 50000meters<7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | THWN;THHN | Application | Building |
|---|---|---|---|
| Conductor Type | Solid Or Stranded | Conductor | 99.9% Pure Copper |
| Insulation | PVC Insulation Cable | Standard | UL83 ASMTB1,B2,B3 |
| MOQ | 1 Roll | Service | OEM ODM Accept |
| Type | Low Voltage Cable | Conductor Material | Copper |
| Insulation Material | PVC | Jacket | Nylon Jacket |
| Product Name | THHN;THWN | Color | Accept Customized |
| Sample | Free Sample | Rated Voltage | 0.6/1KV |
| High Light | high temperature resistant thhn wire,nylon jacket thhn wire |
||
Product Description
600V PVC Insulation Nylon Jacket Copper THHN Wire Manufacturers 50MM2 125MM2 150MM2 250MM2 500MM2 THHN Building Wire Cab
THWN or THHN
PVC Insulation, Nylon Jacket, 600 Volts
APPLICATION
Copper THHN/THWN-2 conductors are primarily used in conduit and cable trays, when approved, for services, feeders and branch circuits in commercial or industrial applications .
These conductors have multiple ratings
Depending upon the product application, allowable temperatures are as follows: • THHN or T90 Nylon- Dry locations not to exceed 90° C.
• THWN-2- Wet or dry locations not to exceed 90°C or locations not to exceed 75°C when exposed to oil. • THWN- Wet locations not to exceed 75°C or dry locations not to exceed 90°C or locations not to exceed 75°C when exposed to oil.
Production Description
Main purpose and usage characteristics
THHN, TFFN nylon sheathed wires and cables have better electrical and physical properties than ordinary PVC insulated wires and cables:
THHN, TFFN nylon sheathed wires and cables have good heat resistance, and have the characteristics of small weight loss at high temperature, which can improve the instantaneous thermal overload resistance of wires, and can slow down or reduce the escape or migration of PVC components.
THHN, TFFN nylon sheathed wire and cable have the characteristics of corrosion resistance, self-lubrication and oil resistance.
Compared with PVC insulated wires and cables of the same cross-section, nylon sheathed wires and cables have the characteristics of small outer diameter, light weight, and small static friction coefficient, which can improve the safety and applicability of laying.
Nylon sheathed wire rated working voltage 450/750V, used in household appliances, aerospace systems, construction and lighting,.
The long-term working temperature of THHN, TFFN nylon sheathed wire and cable is 90°C or 75°C, the laying temperature should not be lower than 0°C, and the bending radius should not be less than 4 times the outer diameter of the cable.
Implementation of standards UL83, UL62
Product Feature
Product Advantages
Our Factory
Certifications
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight.
We are a professional manufacturer. We can control your order from the first begining to the last.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight.
Pls kindly contact us.
5. Does your company accept OEM production?
5. Does your company accept OEM production?
Yes,we do.
