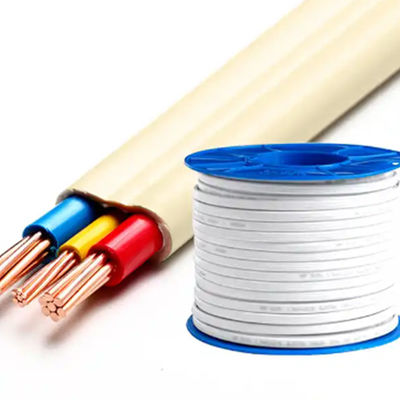

BVVB Flexible Electrical Wire PVC House 3 Core Electrical Cable 2.5 Mm

Name: BVVB Flexible Electrical Wire PVC House 3 Core Electrical Cable 2.5 Mm
Brand: Jiangnan
SKU: BVVB
Price: 1.0 USD
Availability: InStock
Rating: 4.5 (156 reviews)

Place of Origin	Jiangsu China
Brand Name	Jiangnan
Certification	CE，CCC，SABS，TUV，RoHS
Model Number	BVVB
Minimum Order Quantity	1 Roll
Price	$1.0/meter
Packaging Details	Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability	50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Model Number	BVVB	Application	Heating
Conductor Type	Solid	Product Name	Copper Core PVC Insulated PVC Sheathed Flat Cables
Conductor	Copper 99.995%	Material	Copper+PVC
Rated Voltage	300/300V 300/500V	Usage	Building Wire Home Appliances
Type	Insulated	Color	Requirement
Insulation	PVC Insulation Cable	Jacket	Jacket
Standard	GB/T 5023.3-2008	Rated Temperature	70'C
High Light	PVC House Flexible Electrical Wire , PVC House 3 Core Electrical Cable , BVVB Flexible Electrical Wire

Leave a Message

Product Description

Flexible Electrical Wires Supplies PVC House 2.5Mm Equipment three Core Cables Industry Electric Copper Wire Cable

Products Description

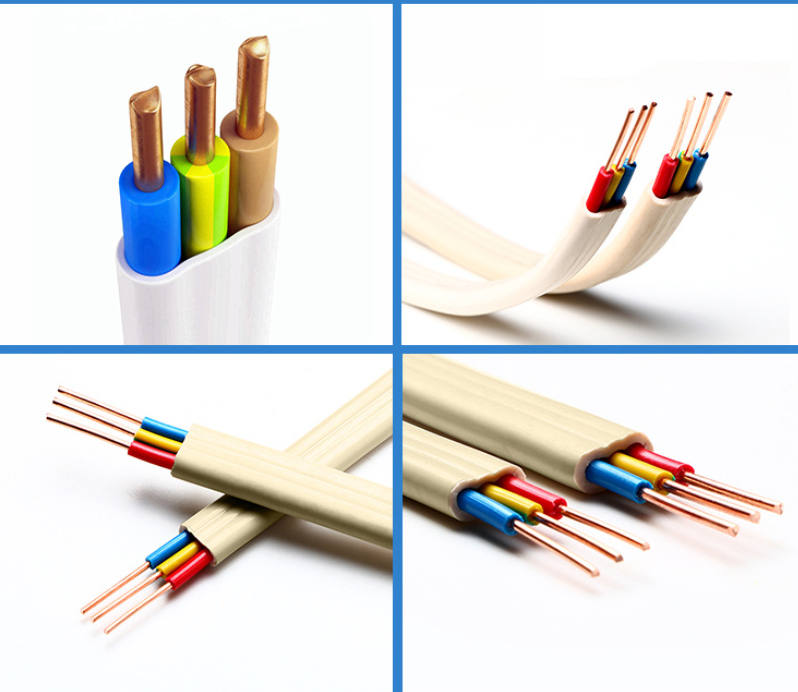

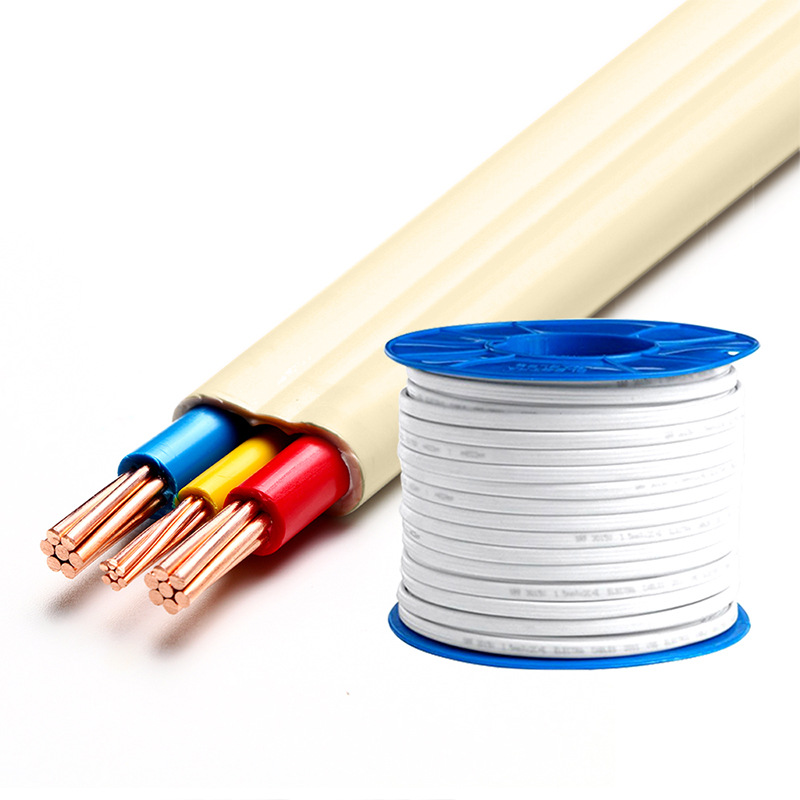

BVVB——copper core PVC insulated PVC sheathed flat wire

Product model: BVVB
Executive standard: JB8734-98/GB5023-2008
Product Features:
1. Rated voltage: 450/750V and below
2. Working temperature: The long-term allowable working temperature of wires with -90 suffix should not exceed 90°C, and the long-term allowable working temperature of other types of wires should not exceed 70°C. When the use environment of the cable can prevent thermoplastic flow and allow the insulation resistance to be reduced, the PVC compound that can be used continuously at 90°C can be increased to 105°C under the premise of shortening the total working time.
3. Conductor: single-strand bare copper wire or multi-strand stranded copper wire
4. Insulation: PVC
5. Sheath: PVC
6. Color: white/black and other colors for choice
Features/Uses:
This product is suitable for circuits with AC rated voltage of 450/750V and below for power, household electrical appliances, instruments and meters, and telecommunication equipment.

BVVB indicates that the cable is PVC insulated and PVC sheathed flat cable for fixed wiring. The first letter: B means fixed wiring, which means that the copper wire of the cable is the first type of conductor in the GB/T 395 standard, a hard conductor; the second letter V means that the cable insulation material is PVC ;The third letter V means that the sheath material is PVC; the fourth letter B means that the cable is a flat cable.

Nominal cross-sectional area mm2	conductor No.of wires/dia mm	Insulation thickness mm	Sheath thickness mm	Outer diameter mm	Max.d.c, resistance at 20℃ Ω/km	Min.insulation resistance at 70℃ ΩKM	Current rating in air at 25℃ A	Approx.cable weight kg/km
2X0.75	1/0.97	0.6	0.9	4.6 X 7.0	24.5	0.012	13	42
2X1.0	1/1.13	0.6	0.9	4.8 X 7.4	18.1	0.011	16	49
2X1.5	1/1.38	0.7	0.9	5.4 X 8.4	12.1	0.011	20	65
2X2.5	1/1.78	0.8	1	6.2 X 9.8	7.41	0.01	27.5	96
2X4	1/2.25	0.8	1	6.8X11.0	4.61	0.0085	38	130
2X4	7/0.85	0.8	1	7.2X11.5	4,61	0.0077	38	139
2X6	1/2.76	0.8	1.1	7.4X12.0	3.08	0.007	50	179
2X6	7/1.04	1.10.8	1.1	8.0X13.0	3.08	0.0065	50	190
2X10	7/1.35	1	1.2	9.6X16.0	1.83	0.0065	69	304
3X0.75	1/0.97	0.6	0.9	4.6 X 9.4	24.5	0.012	9.5	60
3X1.0	1/1.13	0.6	0.9	4.8 X 9.8	18.1	0.011	11.5	70
3X1.5	1/1.38	0.7	0.9	5.4X11.5	12.1	0.011	12.5	94
3X2.5	1/1.78	0.8	1	6.2X13.5	7.41	0.01	21	141
3X4	1/2.25	0.8	LI	7.0X15.0	4.61	0.0085	27.5	198
3X4	7/0.85	0.8	LI	7.4X16.5	4.61	0.0077	27.5	210
3X6	1/2.76	0.8	LI	7.4X17.0	3.08	0.007	34	265
3X10	7/1.35	1	1.2	9.6X22.5	1.83	0.0065	55	451
