Yjv32 Pvc Sheathed Power Cable With Xlpe Insulation & Steel Wire Armored
Place of Origin | Jiangsu China |
---|---|
Brand Name | Jiangnan |
Certification | CE,CCC,SABS,TUV,RoHS |
Model Number | YJV32 |
Minimum Order Quantity | 100 Meters |
Price | $0.10 - $2.00/ meter |
Packaging Details | Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters) |
Delivery Time | 3-7work days |
Supply Ability | 50000meters<7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xHighlight | yjv32 pvc sheathed power cable,xlpe insulation pvc sheathed power cable |
---|
YJV32

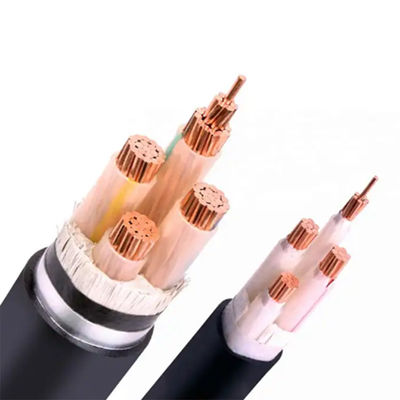

Copper core XLPE insulated thin steel wire armored PVC sheathed power cable
32 ——Thin steel wire armored PVC outer sheath
It is a power cable equipped with XLPE sheath and steel wire armor, and its inner core is generally copper core wire. This kind of cable not only has good corrosion resistance and electrical performance, but also has a relatively simple structure and is relatively light in weight. power grid and more.
Product use characteristics:
(1) When the cable is laid under the condition that the ambient temperature is not lower than 0°C, it is not necessary to pre-heat. Cable laying heights are not restricted. (2) The long-term allowable working temperature of the cable core shall not exceed the following regulations: 90°C for cables with a polyvinyl chloride sheath on the outer sheath; 80°C for cables with a polyethylene sheath on the outer sheath. (3) When the wire core is short-circuited (the longest duration is 5S), the temperature shall not exceed 250°C
Product model, name and scope of use
Model Name Application range Copper core aluminum core YJVYJLV XLPE insulated PVC sheathed power cables are fixedly laid in the air, indoors, cable trenches, tunnels or underground YJYJYLY XLPE insulated PE sheathed power cables are fixedly laid indoors , Cable trenches, tunnels or underground YJV22YJLV22 XLPE insulated steel tape armored PVC sheathed power cables are fixedly laid in places with external pressure YJV23YJLV23 XLPE insulated steel tape armored PE sheathed power cables are fixed YJV32YJLV32 XLPE insulated thin steel wire armored PVC sheathed power cables are laid in places where external forces often act YJV33YJLV33 XLPE insulated fine steel wire armored PE sheathed power cables are fixedly laid in places that are required to withstand tension Fixed laying in places that require tensile strength YJV42JYLV42 XLPE insulated thick steel wire armored PVC sheathed power cables Fixed laying in underwater, shafts or places that require tensile strength YJV43YJLV43 XLPE insulated thick steel wire armored Polyethylene sheathed power cables are fixedly laid in places that are required to withstand greater tension.
