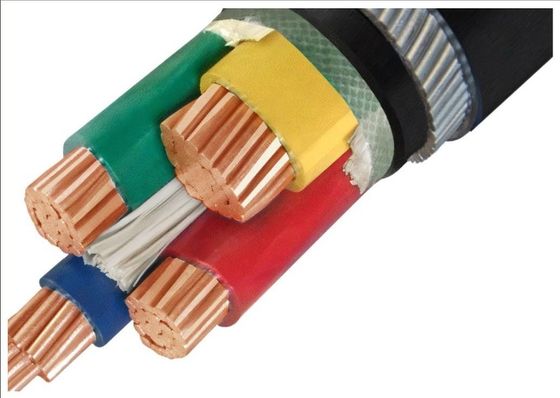

Multicore 0.08-7.5mm Steel Tape Armoured Power Cable PVC Insulated Sheathed
| Place of Origin | Jiangsu China |
|---|---|
| Brand Name | Jiangnan |
| Certification | CE，CCC，SABS，TUV，RoHS |
| Model Number | VV22 |
| Minimum Order Quantity | 100 Meters |
| Price | $0.3/meter |
| Packaging Details | Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters) |
| Supply Ability | 50000meters<7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x| Insulation Material | Xlpe | Application | Industrial |
|---|---|---|---|
| Jacket | PVC, Jacket | Packing | 100m/roll |
| Core | Multicore | Diameter | 0.08-7.5mm |
| Voltage | 450/750V | Model Number | VV22 |
| Type | LOW VOLTAGE | Conductor Material | Copper,aluminum |
| Certification | ISO9001 | Conductor | Stranded Copper |
| Material | Standard Copper | Delivery Time | 20 Days |
| High Light | Multicore Armoured Power Cable,Multicore Steel tape armoured cable,7.5mm Armoured Power Cable |
||
The cable is manufactured according GB12706-91 or IEC60502 .It is suitable to be installed in power transmission and distribution lines with rated voltage below (including)0.6/1kv.
2 .Application
For laying indoors,in tunnels and in ducts,unable to bear external mechanical force.
3.Operation Characteristic
The Maximum operating temperature of the cable for long period use shall not exceed 70℃, the circuit temperature for 5 seconds not exceed 160℃. The cable is not limited by the difference of level when installed and the ambient temperature shall not be below 0℃.The minimum bending radius for single core cable is 40(D+d)mm, for multi core cable is 30(D+d)mm,(D and d are nominal outerdiameter of main conductor of cable respectively if the main Conductor is not round D = 1.13 . S is the moninal cross sectional area of the main conductor ductor in mm). The single core armoured cables are only suitable for D.C.lines.
4.Conditions of Use:
VV22 cables are suitable for direct burial underground, and can be laid indoors, in cable trenches, tunnels and pipelines. The cables can withstand certain mechanical external forces, but cannot withstand large tensile forces.
Number of cores: one core (single core), two cores (dual core), three cores, four cores (including "3+1" and fourth cores), five cores (including "4+1", "3+ 2” and fifth core).
Production range of cables
| model | Number of cores | Nominal section mm2 | |
| copper conductor | aluminum conductor | ||
|
VV VY VV62 VV63 |
VLV VLY VLV62 VLV63 |
1 |
1.5~800 10~800 |
|
VV VY VV22 VV23 VV32 VV33 |
VLV VLY VLV22 VLV23 VLV32 VLV33 |
2
|
1.5~400 4~400 10~400 |
|
VV VY VV22 VV23 VV32 VV33 |
VLV VLY VLV22 VLV23 VLV32 VLV33 |
3 |
1.5~630 4~630 10~630 |
|
VV VY VV22 VV23 VV32 VV33 |
VLV VLY VLV22 VLV23 VLV32 VLV33 |
4 |
1.5~500 4~500 10~500 |
|
VV VY VV22 VV23 VV32 VV33 |
VLV VLY VLV22 VLV23 VLV32 VLV33 |
3+1 |
1.5~630 4~630 10~630 |
|
VV VY VV22 VV23 VV32 VV33 |
VLV VLY VLV22 VLV23 VLV32 VLV33 |
5 |
1.5~500 4~500 10~500 |
|
VV VY VV22 VV23 VV32 VV33 |
VLV VLY VLV22 VLV23 VLV32 VLV33 |
4+1 |
1.5~500 4~500 10~500 |
|
VV VY VV22 VV23 VV32 VV33 |
VLV VLY VLV22 VLV23 VLV32 VLV33 |
3+2 |
1.5~500 4~500 10~500 |
＊ Single-core armored cables are suitable for DC systems. If they are used in AC systems, they should be armored with non-magnetic materials or magnetic isolation measures.
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 35KV and below power cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc
2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
