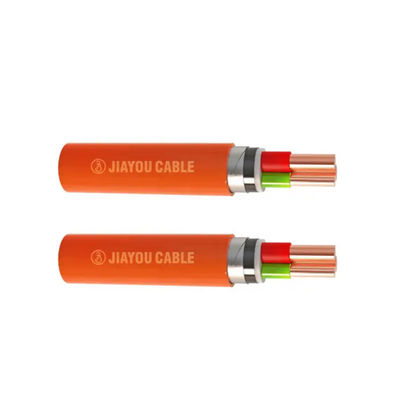

N2XBY 150 Sq Mm 4 Core Cable PVC Jacket STA Steel Tape Armoured Cable For Construction

  • N2XBY 150 Sq Mm 4 Core Cable PVC Jacket STA Steel Tape Armoured Cable For Construction
  • N2XBY 150 Sq Mm 4 Core Cable PVC Jacket STA Steel Tape Armoured Cable For Construction
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Minimum Order Quantity 100 Meters
Price $0.2/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number N2XBY Product Name Steel Tape Armoured Cable
Application Construction Insulation XLPE
Type LOW VOLTAGE Conductor Material Copper
MOQ 100 Meters B Is For Steel Tape Armor
High Light

N2XBY 150 Sq Mm 4 Core Cable

,

STA 150 Sq Mm 4 Core Cable

,

N2XBY Steel Tape Armoured Cable
Leave a Message
Product Description
Products Description

N: VDE standard
2X: Insulation is XLPE
Y: Sheath is PVC
B: steel tape armor

N2XBY 150mm2 4 core XLPE insulated PVC Jacket STA steel tape armoured power cable for construction
APPLICATION:
These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are
normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial
plants, as well as in switchgears, in applications where there is a risk of mechanical damage.
APPLICABLE STANDARDS:
IEC 60502-1 standard
CONSTRUCTION:
Conductor
Plain annealed stranded circular (rm) or sector shaped (sm) copper conductor (Class 2 to IEC 60228)

Insulation
Extruded layer of Cross-linked Polyethylene (XLPE) to IEC 60502-1.

Bedding
Extruded layer of Polyvinyl Chloride (PVC) - Type (ST2) to IEC 60502-1.

Armouring
Double layers of galvanized steel tapes.

Outer Jacket
Extruded layer of Polyvinyl Chloride (PVC) - Type (ST2) to IEC 60502-1.

Packing
In roll or in Drum. Customized packing is welcome.

Technical Date:
Nominal Cross sectional Area (mm2)
Max. Conductor Resistance
Continuous Current Ratings at 25℃
Approx. overall diameter (mm)
Approx. overall weight (kg/km)
DC at 20℃ (Ω/km)
In Air
In Ground
2x10
1.83
75
100
16.6
459.6
2x16
1.15
97
135
18.7
620.9
2x25
0.727
125
165
22.1
869.7
2x35
0.524
155
200
24.3
1112.7
2x50
0.3870
190
240
27.5
1433.3
2x70
0.268
245
295
31.5
1925.9
2x95
0.193
300
355
35
2477.3
2x120
0.153
350
405
38.4
3344.9
2x150
0.124
400
455
42.7
4056.4
2x185
0.0991
460
515
46.9
4874.7
2x240
0.0754
555
605
53.1
6163.0
2x300
0.0601
635
690
57.2
7400.0
Other sizes can be provided on specific request.
The above data is approximate and subjected to manufacturing tolerance. We reserve the right to change as a result of product development and/or changes in standard.
N2XBY 150 Sq Mm 4 Core Cable PVC Jacket STA Steel Tape Armoured Cable For Construction 0
N2XBY 150 Sq Mm 4 Core Cable PVC Jacket STA Steel Tape Armoured Cable For Construction 1
N2XBY 150 Sq Mm 4 Core Cable PVC Jacket STA Steel Tape Armoured Cable For Construction 2
More Products
N2XBY 150 Sq Mm 4 Core Cable PVC Jacket STA Steel Tape Armoured Cable For Construction 3
