ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number Bare Cable
Minimum Order Quantity 100m
Price $0.40 - $4.00/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number ACSR Sample Free Supplied
Certificate CCC/ROHS/ISO Length Custom Length
Conductor Alulminum Voltage 0.6/1kv
High Light

ACSR Bare Conductor Cable

,

25/4 Bare Conductor Cable

,

0.6KV Acsr Aluminium Conductor Steel Reinforced

Leave a Message
Product Description

Products Description



ACSR cable is a kind of aluminum stranded wire with steel core, which has simple structure, convenient erection and maintenance, low line cost, large transmission capacity, and is convenient for laying across special geographical conditions such as rivers and valleys. It has good electrical conductivity and sufficient mechanical strength. It has the characteristics of high strength, high tensile strength, and the distance between towers and rods can be enlarged. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.
Steel-cored aluminum stranded wire is made of aluminum wire and steel wire and is suitable for AC overhead transmission lines.
ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N 0
Nominal cross-sectional area aluminum/steel
mm2
structure
Roots/diameter
mm
Stranded wire outer diametermm Calculation section
mm2
reference weight
kg/km
total weightkg/km DC Resistance
no greater than
&Omega;/km
Calculate breaking force
N
aluminum steel aluminum steel aluminum steel
10/2 6/1.50 1/1.50 4.50 10.60 1.77 29.09 13.78 42.87 2.706 4120
16/3 6/1.85 1/1.85 5.55 16.13 2.69 44.62 20.97 65.23 1.779 6130
25/4 6/2.32 1/2.32 6.96 25.36 4.23 69.60 32.97 102.57 1.131 9290
35/6 6/2.72 1/2.72 8.16 34.86 5.81 96.67 45.32 141.99 0.8230 12630
50/8 6/3.20 1/3.20 9.60 48.25 8.04 132.41 62.73 195.14 0.5946 16820
50/30 12/2.32 7/2.32 11.60 50.73 29.59 140.09 231.87 371.96 0.5692 42620
70/10 6/3.80 1/3.80 11.40 68.05 11.34 186.72 88.46 275.18 0.4217 23390
70/40 12/2.72 7/2.72 13.60 69.73 40.67 192.56 318.71 511.27 0.4141 58300
95/15 26/2.15 7/1.67 24.26 94.39 15.33 260.64 120.14 380.78 0.3058 35000
95/20 7/4.16 7/1.85 13.61 95.14 18.82 261.47 147.44 408.91 0.3019 37200
95/55 12/3.20 7/3.20 13.87 96.51 56.30 266.52 441.13 707.65 0.2992 78110
120/7 18/2.90 1/2.90 16.00 118.89 6.61 327.44 51.52 378.96 0.2422 27570
120/20 26/2.38 7/1.85 14.50 115.67 18.82 319.39 147.44 466.83 0.2496 41000
120/25 7/4.72 7/2.10 15.07 122.48 24.25 336.60 189.98 526.58 0.2345 47880
120/70 12/3.60 7/3.60 15.74 122.15 71.25 337.31 558.30 895.61 0.2364 98870
150/8 18/3.20 1/3.20 18.00 144.76 8.04 398.69 62.73 461.42 0.1989 32860
150/20 24/2.78 7/1.85 16.00 145.68 18.82 401.97 147.44 549.41 0.1980 46630
150/25 26/2.70 7/2.10 16.67 148.86 24.25 411.05 189.98 601.03 0.1939 54110
150/35 30/2.50 7/2.50 17.10 147.26 34.36 406.94 269.24 676.18 0.1962 65020
185/10 18/3.60 1/3.60 17.50 183.22 10.18 504.59 79.39 583.98 0.1572 40880
185/25 24/3.15 7/2.10 18.00 187.04 24.25 516.09 189.98 706.07 0.1542 59420
185/30 26/2.98 7/2.32 18.88 181.34 29.59 500.72 231.87 732.59 0.1592 64320
185/45 30/2.80 7/2.80 19.60 184.73 43.10 510.46 337.74 848.20 0.1564 80190
210/10 18/3.80 1/3.80 19.00 204.14 11.34 562.22 88.46 650.68 0.1411 45140
210/25 24/3.33 7/2.22 19.98 209.02 27.10 576.75 212.31 789.06 0.1380 65990
210/35 26/3.22 7/2.50 20.38 211.73 34.36 584.62 269.24 853.86 0.1363 74250
210/50 30/2.98 7/2.98 20.86 209.24 48.82 578.21 382.56 960.77 0.1331 90830
240/30 24/3.60 7/2.40 21.60 244.29 31.67 674.07 248.13 922.20 0.1181 75620
240/40 26/3.42 7/2.66 21.66 238.85 38.90 659.50 304.81 964.31 0.1209 83370
240/55 30/3.20 7/3.20 22.40 241.27 56.30 666.73 441.13 1107.86 0.1198 102100
300/15 42/3.00 7/1.67 23.01 296.88 15.33 819.66 120.14 939.80 0.09724 68060
300/20 45/2.93 7/1.95 23.43 303.42 20.91 837.99 163.81 1001.80 0.09520 75680
300/25 48/2.85 7/2.22 23.76 306.21 27.10 845.97 212.31 1058.28 0.09433 83410
300/40 24/3.99 7/2.66 23.94 300.09 38.90 828.03 304.81 1132.84 0.09614 92220
300/50 26/3.83 7/2.98 24.26 299.54 48.82 827.11 382.56 1209.67 0.09636 103400
300/70 30/3.60 7/3.60 25.20 305.36 71.25 843.83 558.30 1402.13 0.09460 128000
400/20 42/3.51 7/1.95 26.91 406.40 20.91 1122.04 163.81 1285.85 0.07104 88850
400/25 45/3.33 7/2.22 26.64 391.91 27.10 1082.41 212.31 1294.72 0.07370 95940
400/35 48/3.22 7/2.50 26.82 390.88 34.36 1079.88 269.24 1349.12 0.07389 103900
400/50 54/3.07 7/3.07 27.63 399.73 51.82 1105.06 406.01 1511.07 0.07232 123400
400/65 26/4.42 7/3.44 28.00 398.73 65.06 1101.56 509.78 1611.34 0.07236 135200
400/95 30/4.16 19/2.50 29.14 407.75 93.27 1126.77 733.22 1859.99 0.07087 171300
500/35 45/3.75 7/2.50 30.00 497.01 34.36 1372.67 269.24 1641.91 0.05812 119500
500/45 48/3.60 7/2.80 30.00 488.58 43.10 1349.80 337.74 1687.54 0.05912 128100
500/65 54/3.44 7/3.44 30.96 501.88 65.06 1387.48 509.78 1897.26 0.05760 154000
630/45 45/4.20 7/2.80 33.60 623.45 43.10 1721.88 337.74 2059.62 0.04633 148700
630/55 48/4.12 7/3.20 34.32 639.92 65.06 1767.90 441.13 2209.03 0.04514 164400
630/80 54/3.87 19/2.32 34.82 635.19 43.10 1756.03 631.44 2387.47 0.04551 192900
720/50 45/4.529 7/3.02 50.14 725.1 50.14     2401.00   170600
800/55 45/4.80 7/3.20 38.40 814.30 56.30 2248.99 441.13 2690.12 0.03547 191500
800/70 48/4.63 7/3.60 38.58 808.15 71.25 2232.67 558.30 2790.97 0.03574 207000
800/100 54/4.33 19/2.60 38.98 795.17 100.88 2198.30 793.05 2991.35 0.03635 241100
1000/45 72/4.21 7/2.80 42.08 1002.27 43.10     3055.1 0.0326
1000/125 54/4.84 19/2.90 43.54 993.51 125.49     3580.2 0.0319
1400/120 84/4.60 19/2.80 50.80 1396.00 116.99     4641.2 0.0231
1400/135 88/4.50 19/3.00 51.00 1399.58 134.30     4765.8 0.0229
1440/120 84/4.67 19/2.80 51.36 1438.81 116.99     4759.7 0.0224
1440/135 88/4.56 19/3.00 51.48 1437.15 134.30     4869.8 0.0223



Product model
The models of ACSR are: JL/G1A, JL/G1B, JL/G2A, JL/G2B, JL/G3A
Among them: G1A or G1B refers to ordinary strength steel wire.
G2A or G2B refers to high strength steel wire.
G3A refers to extra high strength steel wire.
Model difference: Take JL/G1A-240/30 ACSR as an example.
It is represented by the current JL/G1A-240/30 in the national standard (GB/T1179-2017);
It is represented by LGJ-240/30 in the national standard (GB/T1179-1983).

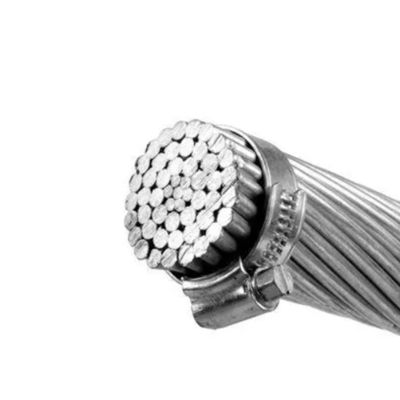

ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N 1

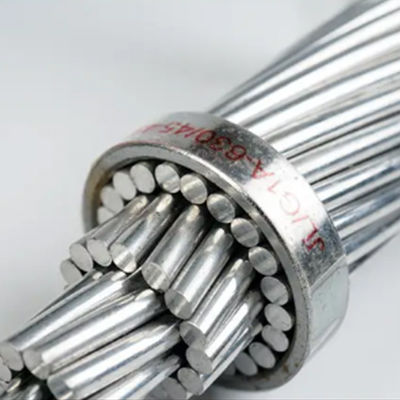

ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N 2

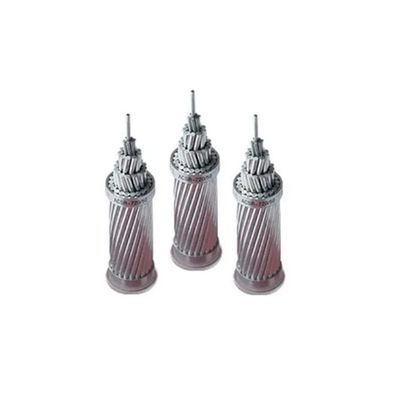

ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N 3
ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N 4
ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N 6
ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N 7
ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N 8
ACSR 25/4 Bare Conductor Cable 6.96mm 69.60kg/Km 1.131Ω/Km 9290N 9
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, we do.
