RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M

  • RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M
  • RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M
  • RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M
  • RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M
  • RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M
  • RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number Coaxial Cable
Minimum Order Quantity 1 Roll
Price $8.00 - $16.00/ roll
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number Rg59/rg6 Place Of Origin Guangdong, China
Number Of Conductors 3 Insulation Foamed PE
Inner Packaging Wooden Reel, Plastic Reel, And Paper Reel Available Shield Al Foil/Bonded Al Foil
Jacket PVC Type COAXIAL
Brand Name ADP/OEM Inner Conductor Solid CCA/CCS/CU
Color Black,white Or Grey Certificate CE/ROHS/ISO9001
Dielectric Foam PE/Solid PE Brand ADP/OEM
Cable Color Varies Cable Gauge Varies
Cable Jacket Color Varies Cable Jacket Material Varies
Cable Length Varies Cable Type Coaxial Power Cable
Connector Contact Plating Varies Connector Finish Varies
Connector Gender Varies Connector Insulation Varies
Connector Material Varies Connector Termination Varies
Connector Type Varies Current Rating Varies
Voltage Rating Varies
High Light

RG58 Coaxial Cable With Power

,

1000M Coaxial Cable With Power

,

RG59 High Power Coaxial Cable
Leave a Message
Product Description
Specification
1.Free sample, short time delivery 2.Good quality, competitive price 3.CE ,ROHS,ISO9001 certificates are available.

Model
Coaxial Cable
Inner Conductor Material
CCA/CCS/CU
Dielectric
SPE/FPE
AL Foil
Bonded, non-bonded, single, double
Braiding wire diameter
0.12mm
Braiding net
48, 64,72,80,96,128 and more
Coverage
40%, 50%, 60%, 80% and more
PVC Degree
65,68,70,75
Color
Black, white or grey
Color
Optional
Electrical properties

Impedance : 75±3Ohms
Capacitance: 52±2(pF/m)
Velocity of propagation: 85%

Attenuation
Frequency
Nominal values
Frequency
Nominal values
[@68°F(20°C)]
MHz
(dB/100m)
MHz
(dB/100m)

5
1.90
750
18.44

55
5.25
870
19.99

211
9.43
1000
21.46

250
10.82
1450
26.25

300
11.25
1750
28.67

400
13.12
2050
31.04

550
16.08
2250
32.81
Product Description
RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M 0
RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M 1
RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M 2
RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M 3
RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M 4
Packing & Delivery
RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M 5
1) Packing Lengths: 100m/roll, other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's requests.

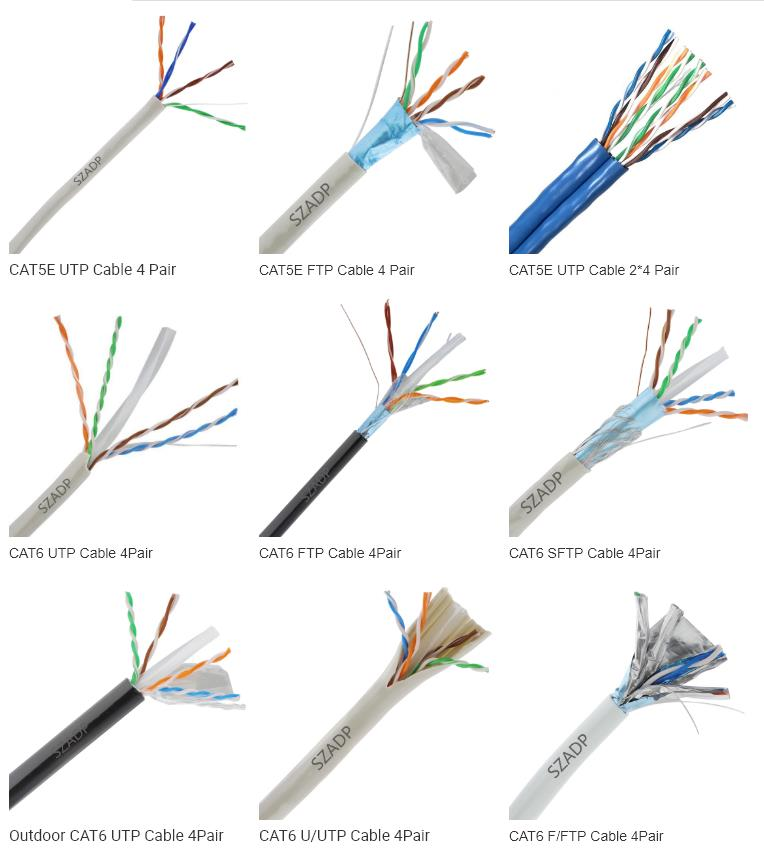

Recommend Products
