FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE, RoHS, CCC,ISO
Model Number RG6、RG11、RG58、RG59、RG179、RG213
Minimum Order Quantity 1 Roll
Price $0.01 - $2.00/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters/7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number RG6, RG11, RG58, RG59, RG179, RG213 Application For The Transmission Of Analog And Digital Signals
Product Name Coxial Cable Shield RG6 Aluminium Foil
Voltage Rating 30v Type Coxial Cable
Conductor Material CU/AL/CCS/CCA/TCW Insulation Material FPE/PE
100 Rolls/Requirement CCS/TCW/CCA/Plain Copper Sheath Colour Black/ Customized
High Light

Video Signal Coaxial Power Cable

,

Coaxial Power Cable RG6

,

Video Signal Copper Coaxial Cable

Leave a Message
Product Description

Factory High Quality Copper FPE/PE Coaxial Cable RG59+2 RG58 RG6 RG11 Composite Cable For Low Power Video Video Signal

FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 0
Products Description

Development Overview
The continuous and rapid growth of China's economy has provided a huge market space for cable products. The strong temptation of the Chinese market has made the world focus on the Chinese market. In just a few decades of reform and opening up, China's cable manufacturing industry The huge production capacity formed has impressed the world. With the continuous expansion of China's electric power industry, data communication industry, urban rail transit industry, automobile industry and shipbuilding industry, the demand for wire and cable will also grow rapidly, and the wire and cable industry still has huge development potential in the future.



Coaxial cables can be divided into two basic types, baseband coaxial cables and broadband coaxial cables

Coaxial Cable
APPLICATION

RG6, RG11, RG58, RG59, RG179, RG213 cables for high quality RG Type Coaxial cables, 50 or 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals.



Coaxial cable

Coaxial cables can be divided into baseband coaxial cables and broadband coaxial cables (that is, network coaxial cables and video coaxial cables) according to their uses. There are two types of coaxial cables: 50Ω baseband cables and 75Ω broadband cables. Baseband cables are further divided into thin coaxial cables and thick coaxial cables. The baseband cable is used for digital transmission only, and the data rate can reach 10Mbps.

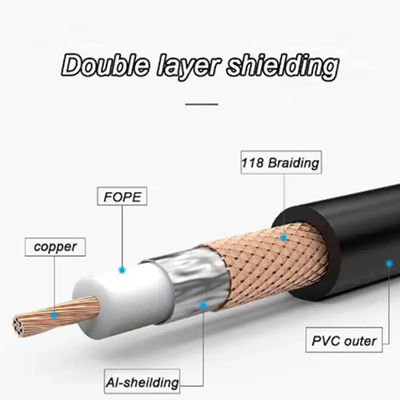

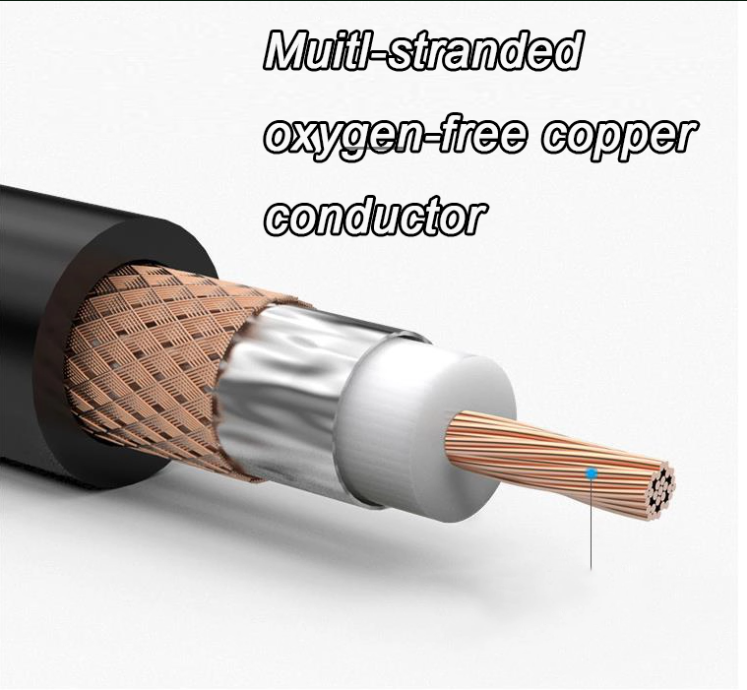

The coaxial cable has a hard copper wire as the core and is covered with a layer of insulating material. This layer of insulation is surrounded by a densely woven mesh of conductors that is covered with a layer of protective material. There are two widely used coaxial cables. One is a 50-ohm cable, which is used for digital transmission. It is also called a baseband coaxial cable because it is mostly used for baseband transmission; the other is a 75-ohm cable, which is used for analog transmission, that is, a broadband coaxial cable. This distinction is due to historical reasons, not technical reasons or manufacturers.

This structure of coaxial cable makes it have high bandwidth and excellent noise suppression characteristics. The bandwidth of a coaxial cable depends on the length of the cable. A 1km cable can achieve a data transfer rate of 1Gb/s~2Gb/s. Longer cables can also be used, but at a reduced transmission rate or with an intermediate amplifier. Currently, coaxial cable is largely replaced by optical fiber, but is still widely used in wired and wireless TV and some local area networks.

RF coaxial cable refers to a cable with two concentric conductors, and the conductor and shield share the same axis. The insulation material of radio frequency coaxial cable is made of radio frequency coaxial cable series (9 pieces) and is composed of physically fired polyethylene isolated copper wire conductor. Outside the inner layer of insulating material is another layer of ring conductor, that is, the outer conductor, and the outer conductor is made of copper tape. Formed, welded, braided; or in aluminum tube construction; or in braided construction, and then the entire cable is surrounded by a poly sheath.

At present, there are two types of commonly used RF coaxial cables: 50Ω and 75Ω RF coaxial cables.

The characteristic impedance 75Ω radio frequency coaxial cable is often used in CATV network, so it is called CATV cable, and the transmission bandwidth can reach 1GHz. At present, the transmission bandwidth of commonly used CATV cable is 750MHz.

The characteristic impedance 50Ω RF coaxial cable is mainly used for baseband signal transmission, the transmission bandwidth is 1-20MHz, the maximum transmission distance of the general characteristic impedance 50Ω thin coaxial cable is 180 meters, and the thick coaxial cable can reach 1000 meters.

Coaxial cable SYV—solid polyethylene insulation, PVC sheath, the national standard code is radio frequency cable—also called video cable. The physical properties of the insulating layer are different: SYV is 100% polyethylene filled, and the dielectric constant ε=2.2-2.4 or so ; And SYWV is also filled with polyethylene. The video cable generally referred to is TV cable, and it can also be used as a surveillance camera cable in the security field.

COAXIAL CABLE
NOMINAL CAPACITANCE
pf/m
IMPEDANCE
ohms
VELOCITY RATIO
%
RG6
54
75
85
RG11
54
75
85
RG59
72
75
66
RG59 SHOTGUN LSZH CCA
70
75
66.6
RG179
54
75
82
RG213 PVC
101
50
81
RG213 LSZH
101
50
81
RG58 PVC
97
50
60
FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 1
FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 2
FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 3
FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 4
FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 5
FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 7
FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 8
FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 9
FPE PE Copper Coaxial Power Cable RG59+2 RG58 RG6 RG11 For Video Signal 10
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, we do.
