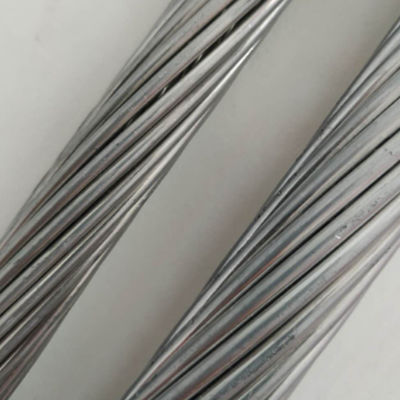

Custom Length ACSR Core Wire Overhead Transmission Line Conductor
Place of Origin | Jiangsu China |
---|---|
Brand Name | Jiangnan |
Certification | CE,CCC,SABS,TUV,RoHS |
Model Number | Bare Cable |
Minimum Order Quantity | 100m |
Price | $0.40 - $4.00/ meter |
Packaging Details | Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters) |
Supply Ability | 50000meters<7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Model Number | ACSR | Sample | Free Supplied |
---|---|---|---|
Certificate | CCC/ROHS/ISO | Length | Custom Length |
Conductor | Alulminum | Voltage | 0.6/1kv |
High Light | Custom Length ACSR Core Wire,Custom Overhead Transmission Line Conductor |
Product Description
Products Description
ACSR cable is a kind of aluminum stranded wire with steel core, which has simple structure, convenient erection and maintenance, low line cost, large transmission capacity, and is convenient for laying across special geographical conditions such as rivers and valleys. It has good electrical conductivity and sufficient mechanical strength. It has the characteristics of high strength, high tensile strength, and the distance between towers and rods can be enlarged. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.
Steel-cored aluminum stranded wire is made of aluminum wire and steel wire and is suitable for AC overhead transmission lines.
Nominal cross-sectional area aluminum/steel mm2 |
structure Roots/diameter mm |
Stranded wire outer diametermm | Calculation section mm2 |
reference weight kg/km |
total weightkg/km | DC Resistance no greater than Ω/km |
Calculate breaking force N |
|||
aluminum | steel | aluminum | steel | aluminum | steel | |||||
10/2 | 6/1.50 | 1/1.50 | 4.50 | 10.60 | 1.77 | 29.09 | 13.78 | 42.87 | 2.706 | 4120 |
16/3 | 6/1.85 | 1/1.85 | 5.55 | 16.13 | 2.69 | 44.62 | 20.97 | 65.23 | 1.779 | 6130 |
25/4 | 6/2.32 | 1/2.32 | 6.96 | 25.36 | 4.23 | 69.60 | 32.97 | 102.57 | 1.131 | 9290 |
35/6 | 6/2.72 | 1/2.72 | 8.16 | 34.86 | 5.81 | 96.67 | 45.32 | 141.99 | 0.8230 | 12630 |
50/8 | 6/3.20 | 1/3.20 | 9.60 | 48.25 | 8.04 | 132.41 | 62.73 | 195.14 | 0.5946 | 16820 |
50/30 | 12/2.32 | 7/2.32 | 11.60 | 50.73 | 29.59 | 140.09 | 231.87 | 371.96 | 0.5692 | 42620 |
70/10 | 6/3.80 | 1/3.80 | 11.40 | 68.05 | 11.34 | 186.72 | 88.46 | 275.18 | 0.4217 | 23390 |
70/40 | 12/2.72 | 7/2.72 | 13.60 | 69.73 | 40.67 | 192.56 | 318.71 | 511.27 | 0.4141 | 58300 |
95/15 | 26/2.15 | 7/1.67 | 24.26 | 94.39 | 15.33 | 260.64 | 120.14 | 380.78 | 0.3058 | 35000 |
95/20 | 7/4.16 | 7/1.85 | 13.61 | 95.14 | 18.82 | 261.47 | 147.44 | 408.91 | 0.3019 | 37200 |
95/55 | 12/3.20 | 7/3.20 | 13.87 | 96.51 | 56.30 | 266.52 | 441.13 | 707.65 | 0.2992 | 78110 |
120/7 | 18/2.90 | 1/2.90 | 16.00 | 118.89 | 6.61 | 327.44 | 51.52 | 378.96 | 0.2422 | 27570 |
120/20 | 26/2.38 | 7/1.85 | 14.50 | 115.67 | 18.82 | 319.39 | 147.44 | 466.83 | 0.2496 | 41000 |
120/25 | 7/4.72 | 7/2.10 | 15.07 | 122.48 | 24.25 | 336.60 | 189.98 | 526.58 | 0.2345 | 47880 |
120/70 | 12/3.60 | 7/3.60 | 15.74 | 122.15 | 71.25 | 337.31 | 558.30 | 895.61 | 0.2364 | 98870 |
150/8 | 18/3.20 | 1/3.20 | 18.00 | 144.76 | 8.04 | 398.69 | 62.73 | 461.42 | 0.1989 | 32860 |
150/20 | 24/2.78 | 7/1.85 | 16.00 | 145.68 | 18.82 | 401.97 | 147.44 | 549.41 | 0.1980 | 46630 |
150/25 | 26/2.70 | 7/2.10 | 16.67 | 148.86 | 24.25 | 411.05 | 189.98 | 601.03 | 0.1939 | 54110 |
150/35 | 30/2.50 | 7/2.50 | 17.10 | 147.26 | 34.36 | 406.94 | 269.24 | 676.18 | 0.1962 | 65020 |
185/10 | 18/3.60 | 1/3.60 | 17.50 | 183.22 | 10.18 | 504.59 | 79.39 | 583.98 | 0.1572 | 40880 |
185/25 | 24/3.15 | 7/2.10 | 18.00 | 187.04 | 24.25 | 516.09 | 189.98 | 706.07 | 0.1542 | 59420 |
185/30 | 26/2.98 | 7/2.32 | 18.88 | 181.34 | 29.59 | 500.72 | 231.87 | 732.59 | 0.1592 | 64320 |
185/45 | 30/2.80 | 7/2.80 | 19.60 | 184.73 | 43.10 | 510.46 | 337.74 | 848.20 | 0.1564 | 80190 |
210/10 | 18/3.80 | 1/3.80 | 19.00 | 204.14 | 11.34 | 562.22 | 88.46 | 650.68 | 0.1411 | 45140 |
210/25 | 24/3.33 | 7/2.22 | 19.98 | 209.02 | 27.10 | 576.75 | 212.31 | 789.06 | 0.1380 | 65990 |
210/35 | 26/3.22 | 7/2.50 | 20.38 | 211.73 | 34.36 | 584.62 | 269.24 | 853.86 | 0.1363 | 74250 |
210/50 | 30/2.98 | 7/2.98 | 20.86 | 209.24 | 48.82 | 578.21 | 382.56 | 960.77 | 0.1331 | 90830 |
240/30 | 24/3.60 | 7/2.40 | 21.60 | 244.29 | 31.67 | 674.07 | 248.13 | 922.20 | 0.1181 | 75620 |
240/40 | 26/3.42 | 7/2.66 | 21.66 | 238.85 | 38.90 | 659.50 | 304.81 | 964.31 | 0.1209 | 83370 |
240/55 | 30/3.20 | 7/3.20 | 22.40 | 241.27 | 56.30 | 666.73 | 441.13 | 1107.86 | 0.1198 | 102100 |
300/15 | 42/3.00 | 7/1.67 | 23.01 | 296.88 | 15.33 | 819.66 | 120.14 | 939.80 | 0.09724 | 68060 |
300/20 | 45/2.93 | 7/1.95 | 23.43 | 303.42 | 20.91 | 837.99 | 163.81 | 1001.80 | 0.09520 | 75680 |
300/25 | 48/2.85 | 7/2.22 | 23.76 | 306.21 | 27.10 | 845.97 | 212.31 | 1058.28 | 0.09433 | 83410 |
300/40 | 24/3.99 | 7/2.66 | 23.94 | 300.09 | 38.90 | 828.03 | 304.81 | 1132.84 | 0.09614 | 92220 |
300/50 | 26/3.83 | 7/2.98 | 24.26 | 299.54 | 48.82 | 827.11 | 382.56 | 1209.67 | 0.09636 | 103400 |
300/70 | 30/3.60 | 7/3.60 | 25.20 | 305.36 | 71.25 | 843.83 | 558.30 | 1402.13 | 0.09460 | 128000 |
400/20 | 42/3.51 | 7/1.95 | 26.91 | 406.40 | 20.91 | 1122.04 | 163.81 | 1285.85 | 0.07104 | 88850 |
400/25 | 45/3.33 | 7/2.22 | 26.64 | 391.91 | 27.10 | 1082.41 | 212.31 | 1294.72 | 0.07370 | 95940 |
400/35 | 48/3.22 | 7/2.50 | 26.82 | 390.88 | 34.36 | 1079.88 | 269.24 | 1349.12 | 0.07389 | 103900 |
400/50 | 54/3.07 | 7/3.07 | 27.63 | 399.73 | 51.82 | 1105.06 | 406.01 | 1511.07 | 0.07232 | 123400 |
400/65 | 26/4.42 | 7/3.44 | 28.00 | 398.73 | 65.06 | 1101.56 | 509.78 | 1611.34 | 0.07236 | 135200 |
400/95 | 30/4.16 | 19/2.50 | 29.14 | 407.75 | 93.27 | 1126.77 | 733.22 | 1859.99 | 0.07087 | 171300 |
500/35 | 45/3.75 | 7/2.50 | 30.00 | 497.01 | 34.36 | 1372.67 | 269.24 | 1641.91 | 0.05812 | 119500 |
500/45 | 48/3.60 | 7/2.80 | 30.00 | 488.58 | 43.10 | 1349.80 | 337.74 | 1687.54 | 0.05912 | 128100 |
500/65 | 54/3.44 | 7/3.44 | 30.96 | 501.88 | 65.06 | 1387.48 | 509.78 | 1897.26 | 0.05760 | 154000 |
630/45 | 45/4.20 | 7/2.80 | 33.60 | 623.45 | 43.10 | 1721.88 | 337.74 | 2059.62 | 0.04633 | 148700 |
630/55 | 48/4.12 | 7/3.20 | 34.32 | 639.92 | 65.06 | 1767.90 | 441.13 | 2209.03 | 0.04514 | 164400 |
630/80 | 54/3.87 | 19/2.32 | 34.82 | 635.19 | 43.10 | 1756.03 | 631.44 | 2387.47 | 0.04551 | 192900 |
720/50 | 45/4.529 | 7/3.02 | 50.14 | 725.1 | 50.14 | 2401.00 | 170600 | |||
800/55 | 45/4.80 | 7/3.20 | 38.40 | 814.30 | 56.30 | 2248.99 | 441.13 | 2690.12 | 0.03547 | 191500 |
800/70 | 48/4.63 | 7/3.60 | 38.58 | 808.15 | 71.25 | 2232.67 | 558.30 | 2790.97 | 0.03574 | 207000 |
800/100 | 54/4.33 | 19/2.60 | 38.98 | 795.17 | 100.88 | 2198.30 | 793.05 | 2991.35 | 0.03635 | 241100 |
1000/45 | 72/4.21 | 7/2.80 | 42.08 | 1002.27 | 43.10 | 3055.1 | 0.0326 | |||
1000/125 | 54/4.84 | 19/2.90 | 43.54 | 993.51 | 125.49 | 3580.2 | 0.0319 | |||
1400/120 | 84/4.60 | 19/2.80 | 50.80 | 1396.00 | 116.99 | 4641.2 | 0.0231 | |||
1400/135 | 88/4.50 | 19/3.00 | 51.00 | 1399.58 | 134.30 | 4765.8 | 0.0229 | |||
1440/120 | 84/4.67 | 19/2.80 | 51.36 | 1438.81 | 116.99 | 4759.7 | 0.0224 | |||
1440/135 | 88/4.56 | 19/3.00 | 51.48 | 1437.15 | 134.30 | 4869.8 | 0.0223 |
Product model
The models of ACSR are: JL/G1A, JL/G1B, JL/G2A, JL/G2B, JL/G3A
Among them: G1A or G1B refers to ordinary strength steel wire.
G2A or G2B refers to high strength steel wire.
G3A refers to extra high strength steel wire.
Model difference: Take JL/G1A-240/30 ACSR as an example.
It is represented by the current JL/G1A-240/30 in the national standard (GB/T1179-2017);
It is represented by LGJ-240/30 in the national standard (GB/T1179-1983).
The models of ACSR are: JL/G1A, JL/G1B, JL/G2A, JL/G2B, JL/G3A
Among them: G1A or G1B refers to ordinary strength steel wire.
G2A or G2B refers to high strength steel wire.
G3A refers to extra high strength steel wire.
Model difference: Take JL/G1A-240/30 ACSR as an example.
It is represented by the current JL/G1A-240/30 in the national standard (GB/T1179-2017);
It is represented by LGJ-240/30 in the national standard (GB/T1179-1983).
