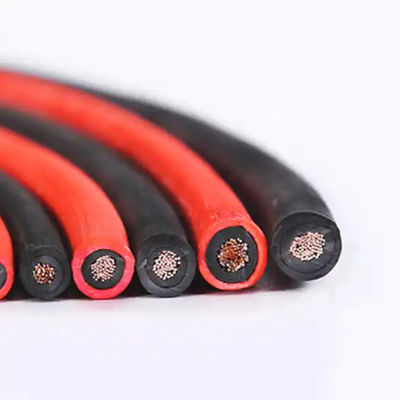

Durable PV1-F Single Double Core Solar Panel Power Cable Photovoltaic Wire

  • Durable PV1-F Single Double Core Solar Panel Power Cable Photovoltaic Wire
  • Durable PV1-F Single Double Core Solar Panel Power Cable Photovoltaic Wire
  • Durable PV1-F Single Double Core Solar Panel Power Cable Photovoltaic Wire
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE, RoHS, CCC,ISO
Model Number Solar Cable
Minimum Order Quantity 1 Roll
Price $0.10 - $3.50/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters/7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Widely Used In Large-scale Photovoltaic Power Stations Model PV1-F, H1Z2Z2-K
Insulation XLPE/XLPO Insulation Type Solar Cable
Conductor Material Tinned Copper Conductor Sample Free Sample
Keyword PV Solar Power Cable Wire For Solar Panel Arrangement Plum Or Word
High Light

Double Core Solar Panel Power Cable

,

PV1-F Photovoltaic Wire

,

Double Core Photovoltaic Wire
Leave a Message
Product Description
SOLAR CABLE H1Z2Z2-K PV1-F

Photovoltaic cables refer to the connecting cables from PV cells (solar cells) to the DC terminals of PV inverters. After various inspections, they meet the performance requirements of the products in different environments.



Product performance characteristics

Working temperature: -40℃～+120℃;

Insulation and sheath are made of cross-linked polyolefin material;

The service life of the cable is not less than 25 years;

The cable has anti-ozone, anti-ultraviolet, anti-water vapor, lead-free, halogen-free, flame retardant, low smoke, oil resistance, chemical corrosion resistance and other properties;

Weather resistance/ultraviolet resistance meets (65±3)℃, tensile strength and elongation at break before and after 720h aging are both ≥ 70%;

Smoke density meets light transmittance ≥ 60%;

The thermal life meets the performance requirements such as T1=120, 20000h, and the elongation at break of the sample reaches 50%;

The products have obtained TUV certification and been recognized by the international market.

Technical characteristics
CPR class
Eca
Test voltage
6.5 kV
Rated voltage
1/1 kV AC, 1.5/1.5 kV DC
Max. voltage
1.8 kV
Sheath material Low Smoke Halogen Free Irradiation Crosslinked Polyolefin
Min. temp. for cable laying
-25°C
Working temperature
-40°C to 90°C
Working temp. of max. 20000h
120°C
Max. short-circuit temperature
250°C
Min. bending radius
4xD
Water Resistant
AD8

Photovoltaic cable is a special cable for solar photovoltaic cables, the models are PV1-F, H1Z2Z2-K. What is the difference between solar photovoltaic wire and ordinary wire? Why can't ordinary wires be applied to solar photovoltaic power generation?

Next, let's compare the conductors, insulation, sheath, and application scenarios of the wires, and analyze the differences between the two.

【conductor】

Photovoltaic cable: copper conductor or tinned copper conductor

Ordinary cable: copper conductor or tinned copper conductor

【insulation】

Photovoltaic cables: Irradiated cross-linked polyolefin insulation

Ordinary cable: Polyvinyl chloride (PVC) or XLPE insulation

【jacket】

Photovoltaic cables: Irradiated cross-linked polyolefin insulation

Ordinary cable: PVC sheath

Through the above introduction, we can find that the conductors of photovoltaic wires and ordinary wires are the same. The difference between them is that the materials of their insulating layers and sheaths are different.



Production Description
Durable PV1-F Single Double Core Solar Panel Power Cable Photovoltaic Wire 0
Quality Guarantee
Durable PV1-F Single Double Core Solar Panel Power Cable Photovoltaic Wire 1
Advantages
Durable PV1-F Single Double Core Solar Panel Power Cable Photovoltaic Wire 2
Our Factory
Durable PV1-F Single Double Core Solar Panel Power Cable Photovoltaic Wire 3
Certifications
Durable PV1-F Single Double Core Solar Panel Power Cable Photovoltaic Wire 4
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, we do.
