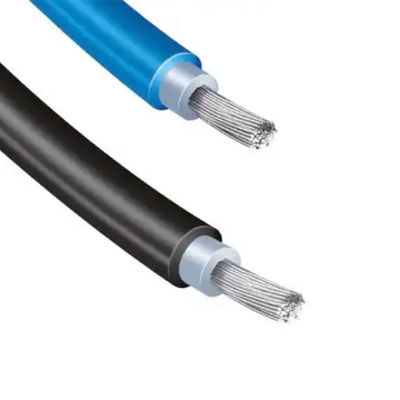

XLPE Insulation Solar Photovoltaic Cable PV1-F-1*4/1*6 Solar Pv Dc Cable
| Place of Origin | Jiangsu China |
|---|---|
| Brand Name | Jiangnan |
| Certification | CE, RoHS, CCC,ISO |
| Model Number | Solar Cable |
| Minimum Order Quantity | 1 Roll |
| Price | $0.10 - $3.50/meter |
| Packaging Details | Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters) |
| Supply Ability | 50000meters/7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Widely Used In Large-scale Photovoltaic Power Stations | Model | PV1-F, H1Z2Z2-K |
|---|---|---|---|
| Insulation | XLPE/XLPO Insulation | Type | Solar Cable |
| Conductor Material | Tinned Copper Conductor | Sample | Free Sample |
| Keyword | PV Solar Power Cable Wire For Solar Panel | Arrangement | Plum Or Word |
| Service Life | 25 Years | Ambient Temperature | -40℃-90℃ |
| High Light | XLPE Insulation Solar Photovoltaic Cable,XLPE Insulation Solar Pv Dc Cable,Solar Photovoltaic Cable PV1-F |
||
Product Description
H1Z2Z2-K/PV1-F-1*4/1*6 Photovoltaic DC Cable and Wire
SOLAR CABLE H1Z2Z2-K PV1-F
H1Z2Z2-K is EN50618:2014 version solar cable model, connecting photovoltaic panels and AC/DC inverters. This product adopts advanced electron beam irradiation technology, and Guangheng adopts low-smoke, halogen-free and flame-retardant materials for production. The product has the characteristics of high temperature resistance, ozone resistance, ultraviolet resistance, strong short-term overload capacity, long life, oil resistance, wear resistance, corrosion resistance and high tensile strength. Rated voltage DC1500V, temperature resistance -40℃~+90℃.
The number of cable cores is generally 2 cores and single core. Single core is used the most. The color of the cable is generally divided into black and red; in the DC line, red generally represents the positive pole of the current, and black represents the negative pole of the current; the conventional cable cross section is 1.5mm²~35mm², and the large square cross section can be customized according to the actual situation.
PV1-F H17272-K solar cable products are suitable for the highest 18kV DC voltage. This product uses advanced electron beam irradiation technology. It is produced with low-smoke, halogen-free and flame-retardant materials. The product has high temperature resistance, ozone resistance and cable resistance. Strong short-time overload capability
Standard: EN50618 Construction
Conductors:Tinned copper conductor, class5
Insulation: Halogen-free cross-linked, flame retardant compound
Sheath: Halogen-free cross-linked, flame retardant compound
Conductors:Tinned copper conductor, class5
Insulation: Halogen-free cross-linked, flame retardant compound
Sheath: Halogen-free cross-linked, flame retardant compound
Model: PV1-F photovoltaic cable
Rated voltage: 0.6/1KV
Conductor: Tinned copper stranded wire
Insulation: LSZH Polyolefin
Sheath: LSZH Polyolefin
Structural features of photovoltaic cable products:
Conductor: Category five stranded tinned copper wire conductor conforms to IEC60228+EN60228, VDE0295.5 level.
Insulation: cross-linked low-smoke halogen-free flame-retardant polyhydrocarbon UL4703.
Outer sheath: cross-linked low-smoke halogen-free flame-retardant polyhydrocarbon UL4703.
Production Description
Quality Guarantee
Advantages
Our Factory
Certifications
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, we do.
We are a professional manufacturer. We can control your order from the first begining to the last.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, we do.
