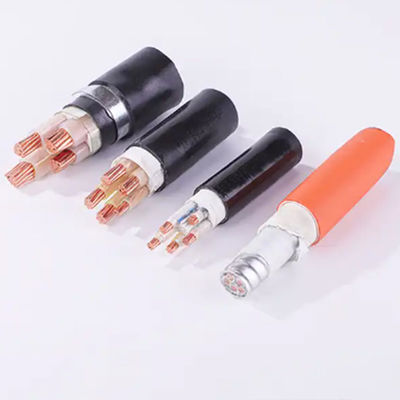

CCC Mineral Insulated Copper Cable High Fire And Corrosion Resistance

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number BBTRZ
Minimum Order Quantity 1000 Meters
Price $0.28/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number BBTRZ MOQ 1000 Meters
Continuous Working Temperature 250°C Brand Jiangnan
Color Customer's Requirement Type Insulated, Fireproof Cable
Conductor Material Copper Insulation Material PVC
Conductor Copper Sheath PVC
High Light

Mineral Insulated Copper Cable Corrosion Resistance

,

CCC Mineral Insulated Copper Cable

Leave a Message
Product Description

Mineral insulated cable Copper core High fire and corrosion resistance

Products Description



Complete range, rest assured to buy



The continuous working temperature of the mineral cable is 250°C, and it can continuously supply power for 3 hours at 950°C-1000°C, and it can work close to the melting point of copper at 1083°C for a short time or in an extraordinary period. It is suitable for lines with a rated voltage below 1000V.

Mineral insulated cable (Mineral insulated cable), a cable that wraps the copper conductor core wire with a copper sheath, and uses magnesium oxide powder as an inorganic insulating material to isolate the conductor and the sheath. The outermost layer can be selected with an appropriate protective sheath.


The outer sheath of the cable protects the inner sheath from mechanical damage and chemical corrosion, and enhances the mechanical strength.

The inner sheath of the cable keeps the insulation layer from contacting with water, air or other objects, prevents the insulation from getting damp and the insulation layer from mechanical damage.

Product model and application
Product structure
Conductor + insulation .Flexible mineral insulated cable is composed of copper stranded wire, mineral compound insulation, and mineral compound sheath.
Certification
CCC
Voltage
Low voltage
Working Temperature
Protocol C Resistance to fire alone 950 °C for 3 h.
Protocol W Resistance to fire with water 650 °C for 15 min.
Protocol Z Resistance to fire with mechanical shock 950 °C for 15 min.
Certification
ISO9001, ROHS, CCC
Packaging
The cables will be packaged in paper/wooden reels /containers or pallet according to customer's requirement.
Application
Domestic outfit distribution, urban power distribution, engineering power distribution
Delivery Port
shenzhen,guangdong,hangzhou
Specifications
Specifications:1-5 cores, 3+1 cores, 3+2 cores, 4+1 cores (2.5 square to 240 square)
Product Details
CCC Mineral Insulated Copper Cable High Fire And Corrosion Resistance 0
CCC Mineral Insulated Copper Cable High Fire And Corrosion Resistance 1
CCC Mineral Insulated Copper Cable High Fire And Corrosion Resistance 2
More Models
CCC Mineral Insulated Copper Cable High Fire And Corrosion Resistance 3
Application
CCC Mineral Insulated Copper Cable High Fire And Corrosion Resistance 4
More Products
CCC Mineral Insulated Copper Cable High Fire And Corrosion Resistance 5
Exhibition
CCC Mineral Insulated Copper Cable High Fire And Corrosion Resistance 6

Application
1. warship, ship
Generator room power transmission lines, fire monitoring system, fire alarm system, smoke exhaust and ventilation lines, kitchen power lines, large power lines
circuit, dual power supply control circuit, emergency lighting, emergency broadcast circuit, computer room control circuit
2. Chemical industry
General lighting, emergency lighting, potentially dangerous explosion lines and other places
3. Subway tunnel
General lighting, emergency lighting, fire monitoring systems, electrical circuits for fire protection, smoke extraction and ventilation circuits
4. Iron and steel metallurgy
Power and control lines in high temperature environment, emergency power supply, large power lines, power supply lines that cannot be cut off, power transmission lines in generator rooms
5. Power plant
Large power lines, general lighting, emergency lighting, fire alarm, fire protection electrical lines
6. Aerospace
General lighting, emergency lighting, computer room control lines, large power lines, high temperature environment power and control lines, potentially hazardous explosion areas
domain line
7. Department store
General lighting, emergency lighting, emergency broadcasting, emergency elevators and lifting equipment lines
8. Libraries, museums, data processing centers
Fire alarm control circuit, fire protection electrical circuit
9. Nuclear Power Plant
General lighting, emergency lighting, computer room control lines, large power lines, high temperature environment power and control lines, potentially hazardous explosion areas
domain line

FAQ
1.When can I get the price? We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority. 2.How can I get a sample to check your quality? After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid. 3.How long can I expect to get the sample? After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
4.What about the lead time for mass production? Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
