| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | SUNWIN |
| Model Number: | PVC insulated copper wire |
| Minimum Order Quantity: | 1000 Mile/Miles |
| Price: | $1.00 - $100.00 / Miles |
| Packaging Details: | 100 meters per roll or iron-wood drum package |
| Supply Ability: | 10000 Meter/Meters per Day |
| Name: | Insulated Electrical Wire | Size: | 240mm2 90mm |
|---|---|---|---|
| Application: | Switching Block | Conductor Material: | Copper |
| Jacket: | PVC | Port: | Guangzhou |
| High Light: | pvc coated electrical wire,electric copper cable |
||

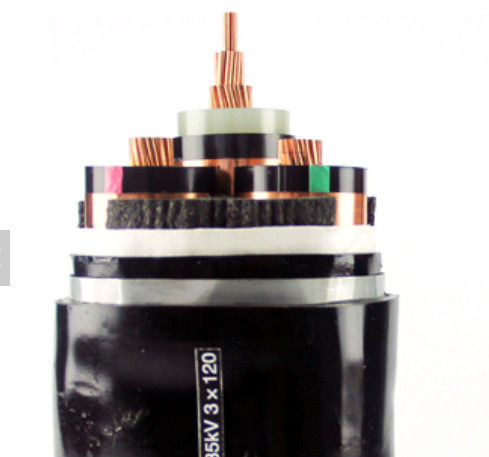

Xlpe Pvc Copper Armoured Insulated Electrical Wire For Switching Blocks 240mm2 90mm
Insulated Electrical Wire Construction
| Conductor: | Cu round aluminum, multi wire stranded compacted (RM), class 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295 |
| Inner screen: | extruded semi-conductive skin on conductor |
| Insulation: | XLPE (cross-linked polyethylene, recent mark: PE-X) compound DIX 8 acc. to HRN HD 620 S1 ili 2XI1 acc. to DIN VDE 0207 dio 22 |
| External screen: | extruded semi-conductive skin on insulation, longitudinally spliced with insulation (+tape of semi-conductive material) |
| Conductorscreen: | copper tape wrapped in counter-helix |
| Filler: | fillers strip, yarn, or paper |
| Wrapping: | non woven wrapping tape or flame retardant or water proof |
| Inner covering: | Extruded PVC |
| Armour: | Aluminum Wire |
| Overall Sheath | polyvinylchloride (PVC) or FR-PVC, PE, LSOH |
| Sheath color | Black, red or customized |
Insulated Electrical Wire Application
Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
| MV(11kv 15kv 33kv) Power Cable | ||
| Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV | No.of Core | Conductor cross-section area(mm2) |
| xlpe insulation | 1 core 3 core | 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm |
| Cu core | ||
| YJV, N2XSY;PVC sheathed power cable | ||
| YJV22;steel tape armoured,PVC sheathed power cable | ||
| YJV32,YJV42;steel wire armoured ,PVC sheathed power cable | ||
| Al Core | ||
| YJLV, NA2XSY; PVC sheathed power cable | ||
| YJLV22;steel tape armoured,PVC sheathed power cable | ||
| YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable | ||
High Tension Armoured Power Cable Power Cable Details
YJ: XLPE insulation
V: PVC sheath
32: Steel wire armoring—3 cores
22: Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant
Insulated Electrical Wire Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
| Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
| 12 / 20 kV | [kV] | 42 / 5 min. | |
| 18 / 30 kV | [kV] | 63 / 5 min. | |
| Temperature range | in motion | -20°C till +90°C | |
| fixed | -20°C till +90°C | ||
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 15 |
| Flammability | standard | EN 50265-2-1 |
*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length
Type Description & Application Occasion
Description |
Application Occsion | GB China Type | |
| Cu | Al | ||
| PVC insulation PVC sheath power cable | To be laid indoors,in tunnel,cable furrow or pipe,the cable couldn't bear mechanical force outside. | VV | VLV |
| PVC insulation,Steel tape armor,PVC sheath power cable | To be laid underground,the cable could bear certain mechanical force. | VV22 | VLV22 |
| PVC insulation,have on the magnetism steel tape armor,PVC sheath power cable | VV62 | VLV62 | |
| PVC insulation,thin steel-wire armor PVC sheath power cable | Be applicable to the well,underwater with the bottom of sea,the cable cable cans bear the bigger pressure with lead to pull the dint. | VV32 | VLV32 |
| PVC insulation,have no the magnetism thicks tell-wirer armor,PVC sheath power cable | VV72 | VLV72 | |
| PVC insulation,thick steel-wire armor,PVC sheath power cable | VV42 | VLV42 | |
| Metallic shielded power cable CU/Al conductor PVC insulation and sheath | It is especially suitable to the places with precidion electronic devices such as computer center,space and aviation supervision center,intellectual buildings etc. | VVP | VLVP |
| Metallic shielded power cable CU/AL conductor PVC insulation,steel tape armor,and PVC sheath | VV22P | VLV22P | |
| Flame-resistant power cable with CU core PVC insulation and sheath | It is used in the environment with high demnd on fire-resisting performance such sa high-rise building,power station,power plant,mine,chemical industry,subway,and so on. | NH-VV | / |
| Flame-resistant power cable with CU core PVC insulation and sheath,steel tape armor | NH-VV22 | / | |
| Power cabal CU/AL conductor PVC insulation,concentric conductor,and PVC sheath |
It is used for power transmission on power lines of rated voltage 0.6/1kv or lower,It is widely used in petrochemical industry,metallurgy,mines and high-rise buildings. | VV-TP | VLV-TP |
| Power cable CU/AL conductor PVC insulation,concentric conductor,steel tape armor,and PVC sheath | VV22-TP | VLV22-TP | |
