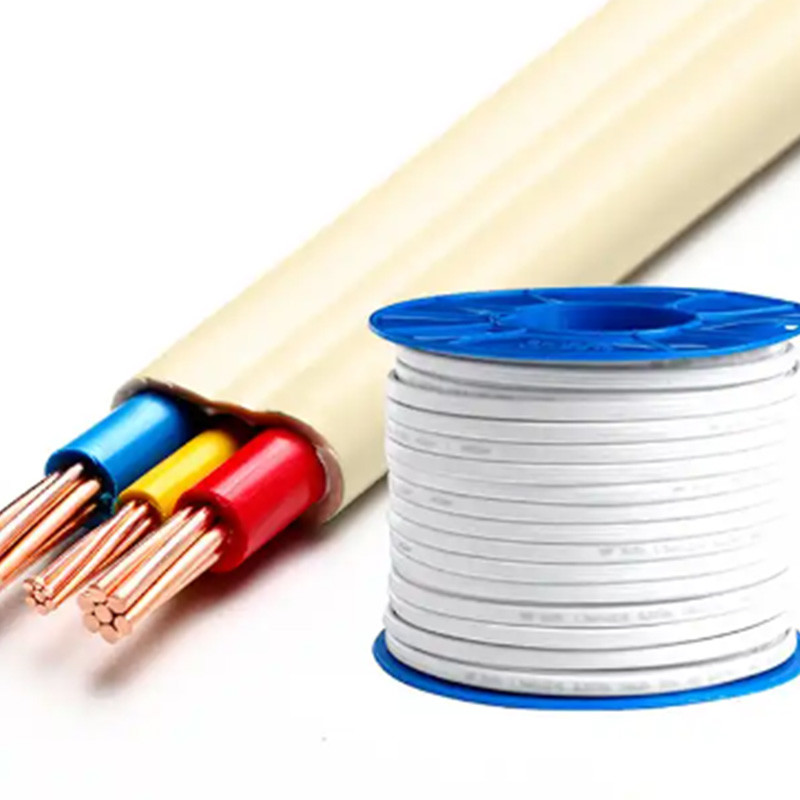

2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V

  • 2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V
  • 2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V
  • 2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V
  • 2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Minimum Order Quantity 100 Meters
Price $0.02 - $0.40/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number BVR Application Truck Parts
Conductor Type Solid Product Name 50/750V Copper Conductor PVC Insulated Unsheathed Wire
Standard JB/T 8734.5-2016 Material 99.995% Pure Copper
Usage Building Wire Home Appliances Size 2.5mm;4mm
Type Insulated, Electrical Cable Wires Copper For House Wiring Conductor Material Copper
Insulation Material PVC Insulation PVC Insulation Cable
MOQ 100meters Packing 100m/roll
Color Customer's Requirement
High Light

2.5mm pvc insulated flexible wire

,

50M pvc insulated flexible wire

,

750V bvr wire
Leave a Message
Product Description



BVR 2.5mm 50M 450/750V Copper Conductor PVC Insulated Lighting Domestic Electric cable wires copper for house wiring

Products Description

Definition
BVR wire is a copper core PVC insulated flexible wire, which is used in occasions where flexibility is required for fixed wiring.
BVR wire is a special flexible wire for power distribution cabinet. Also called secondary line.

This product is suitable for fixed laying of power devices with AC rated voltage 450/750V and below. Such as home improvement lighting. Fixed wiring can be used in indoor surface laying, through pipes and other occasions. In order to facilitate the distinction during installation, it can be divided into seven colors: red, yellow, blue, green, black, white, and double. Since BVR has a soft structure, it is mostly used in soft environments. The only difference between BVR wires and BV wires is that the wire diameter of the R-type wire conductor is annealed copper wire. That is: increase the number of conductors, reduce the diameter of a single conductor, and the diameter of a single conductor is less than 1 mm. In this way, BVR wires are very soft, and the laying angle requirements are greatly reduced compared with BV wires. It is more convenient and fast to thread pipes and wire slots, and greatly improve work efficiency while reducing work intensity. Loved by the majority of electricians and architectural decoration personnel!

2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V 0
2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V 1
2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V 2
Product Name
Copper conductor PVC insulated wire
Material
Copper+PVC
Colour
red/yellow/blue/green/yellow green
Adaptable Voltage (v)
U0/U is 450/750V, 300/500V and 300/300V
Specification
1.5㎟-400㎟
MOQ
100m
Global recruitment of brand agents ,OA Payment acceptable
If you need more Type, You can click"Contact Supplier" or "Send Inquiry"button to contact us.
1. Product use
A)The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.
B)The permissible continuous operating temperature of cables: BV-105 is not more than 150C, others are not more than 70℃
2.Manufacture length:
A)Coil length of cable (wire) is 100m, filled reel length not less than 100m. Short length not less than 10m can be delivered.
B)Any length can be delivered against agreement. Length error not more than +0.5%
3.Product structure, size and reference data
60227 IEC 01( BV) Rated Voltage:450/750V
Nominal
cross-sectional
area mm2
Construction of conductor No.of wire/dia mm
Insulation
thickness
mm
Outer
diameter mm
Max.d.c,
resistance at 20°CQ/km
Min.msulation
resistance at
70°CMQ-km
Current rating in air
at 25 °C A
Approx.cable weight kg/km
0.5
1/0.8
0.6
2.4
36
0.015
13
8.3
0.75
1/0.97
0.6
2.6
24.5
0.012
17
10.9
0.75
7/0.37
0.6
2.8
24.5
0.014
17
11.7
1
1/1.13
0.6
2.8
18.1
0.011
20
13.6
1
7/0.43
0.6
3
18.1
0.013
20
14.7
1.5
1/1.38
0.7
3.3
12.1
0.011
25
19.9
1.5
7/0.52
0.7
3.5
12.1
0.01
25
21
2.5
1/1.78
0.8
3.9
7.41
0.01
34
31.4
2.5
7/0.68
0.8
4.2
7.41
0.009
34
33.1
4
1/2.25
0.8
4.4
4.61
0.0085
44.5
46.3
4
7/0.85
0.8
4.8
4.61
0.0077
44.5
49
6
1/2.76
0.8
4.9
3.08
0.007
58
66
6
7/1.04
0.8
5.4
3.08
0.0065
58
69.4
10
7/1.35
1
6.2
1.83
0.0065
79.5
116
16
7/1.70
1
7.2
1.15
0.005
111
175
25
7/2.14
1.2
8.9
0.727
0.005
146
275
35
7/2.52
1.2
10
0.524
0.004
180
372
50
19/1.78
1.4
11.8
0.387
0.0045
225
496
70
19/2.14
1.4
13.5
0.268
0.0035
280
701
95
19/2.52
1.6
15.9
0.193
0.0035
344
969
120
37/2.03
1.6
17.4
0.153
0.0032
397.5
1202
150
37/2.25
1.8
19.5
0.124
0.0032
455
1478
185
37/2.52
2
21.7
0.0991
0.0032
519
1853
240
61/2,25
2.2
24.9
0.0754
0.0032
541
2417
300
61/2.52
2.4
27.6
0.0601
0.003
636
3024
400
61/2.85
2.6
31.2
0.047
0.0028
721
3825
2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V 3
2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V 4
2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V 7
2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V 8
2.5mm 50M BVR Pvc Insulated Flexible Wire 450/750V 9
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc

2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.

3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.

5.How long is your warranty period?
1 year, and we promise to return or replace the cables within one year if any quality problem is found.
