3x300mm2 Cu Conductor XLPE Insulated Power Cable PVC Sheathed 0.6/1kV Rated
| Place of Origin | Jiangsu China |
|---|---|
| Brand Name | Jiangnan |
| Minimum Order Quantity | 100 Meters |
| Price | $0.35/meter |
| Packaging Details | Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters) |
| Supply Ability | 50000meters<7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | IEC GB | Model Number | YJV |
|---|---|---|---|
| Packing | Customers Customized | Core | 1Core |
| Conductor Type | Stranded | Application | Indoor, Tunnel And Cable Trench And Other Places |
| High Light | 3x300mm2 power cable insulation,Cu Conductor insulated power cable,1kV Rated insulated power cable |
||
Product Description
0.6/1kv YJV 3Core/1.0-400mm2 Cu Conductor XLPE Insulated PVC Sheathed 3x300mm2 Power Cable
Products Description

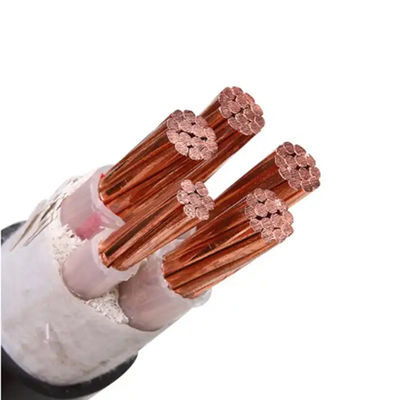

Copper core XLPE insulated PVC sheathed power cable
Executive standard:
National standard: GB/T12706.2-2008 rated voltage 1KV (Um=1.2KV) to 35KV (Um=1.2KV) extruded insulated power cables and accessories
International standard: IEC60502-2:2005 rated voltage 1~30KV extruded insulated power cables and accessories
Additional standard: GB/T 19666-2005 General rules for flame-retardant and fire-resistant cables
Scope of application: It should be used on transmission and distribution lines with 50 Hz AC rated voltage Uo/U of 0.6/1KV and below.
Conductor maximum DC resistance at 20°C
| Conductor Nominal Section mm2 | Conductor maximum DC resistance at 20°C(Ω/km) | |
| copper | aluminum | |
| 1 | 18.1 | -- |
| 1.5 | 12.1 | -- |
| 2.5 | 7.41 | 12.1 |
| 4 | 4.61 | 7.41 |
| 6 | 3.08 | 4.61 |
| 10 | 1.83 | 3.08 |
| 16 | 1.15 | 1.91 |
| 25 | 0.727 | 1.20 |
| 35 | 0.524 | 0.868 |
| 50 | 0.387 | 0.641 |
| 70 | 0.268 | 0.443 |
| 95 | 0.193 | 0.320 |
| 120 | 0.153 | 0.253 |
| 150 | 0.124 | 0.206 |
| 185 | 0.0991 | 0.164 |
| 240 | 0.0754 | 0.125 |
| 300 | 0.0601 | 0.100 |
| 400 | 0.0470 | 0.0778 |
| 500 | 0.0366 | 0.0605 |
| 630 | 0.0283 | 0.0469 |
| 800 | 0.0221 | 0.0367 |
| Power frequency AC voltage test | Test voltage 3.5kV/5min | |
Features
XLPE insulated power cables have electrical properties, mechanical properties, heat aging resistance, environmental stress resistance and chemical corrosion resistance. Large capacity, flame retardant.
YJV
Product model and application
Application
Quality Inspection
Certifications
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc
2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
5. Are you a factory or trading company?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc
2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
5. Are you a factory or trading company?
We are a factory located in Wuxi, Jiangsu, integrating R&D, manufacturing and sales of various wires and cables.
