Aluminum Core Smooth Xlpe Power Cable For House

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number YJLV YJLV22
Minimum Order Quantity 100 Meters
Price $3.5/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number YJV Conductor Type Stranded
Product Name Copper Core PVC Insulation Wire Color Red\blue\white \ Yellow \green\brown\black\grey
Surface Smooth Insulation PVC Insulation Cable
Application Indoor, Tunnel, Cable Trench Test Voltage 3.5kV/5min
High Light

aluminum core power cable insulation

,

smooth xlpe power cable

,

house xlpe power cable

Leave a Message
Product Description

XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable



Product Description

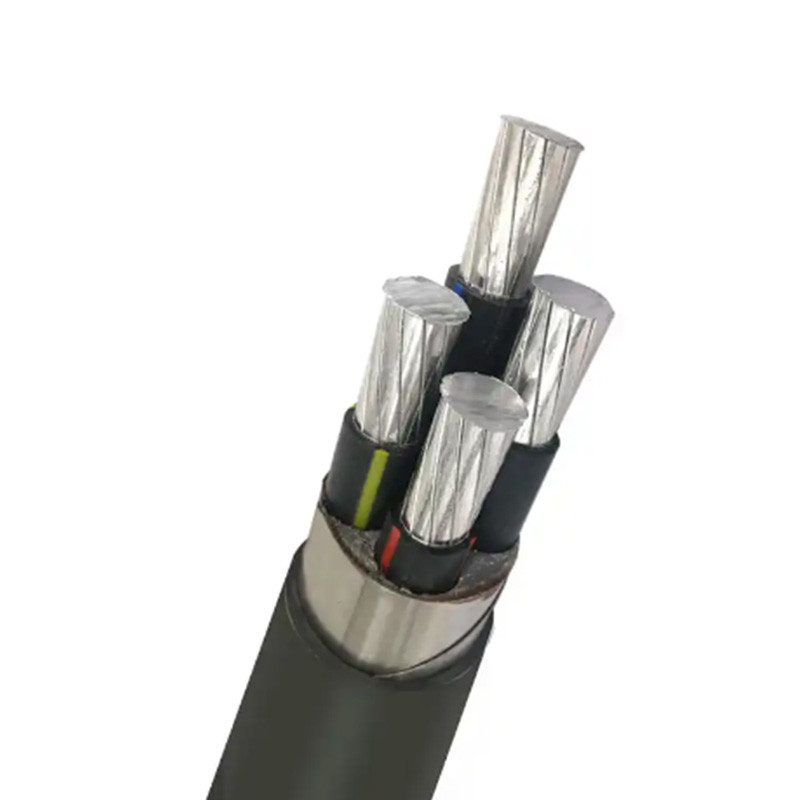

Aluminum core XLPE insulated steel tape armored PVC sheathed power cable.

YJ——XLPE insulation;

L - aluminum core (aluminum conductor);

V——PVC outer sheath;

22——The first 2 means steel tape armor, and the second 2 means PVC inner lining.

We can customize the size according to your requirement
OEM service available based on official & legal authorization.
●Strict quality control system.
●Rapid delivery and feedback.
●Excellent quality with reasonable price.
●Professional teamwork service for you actively.
●Stock available, Free sample is available.
product name:
House wiring/building wiring/ 0.6/1kv YJV SERIES
Product color:
Red/Blue/Yellow/Green/Yellow-Green
product material:
PVC sheath, oxygen-free pure copper
Specifications:
customizable
Certification
CE,CCC,SABS,TUV,RoHS

Stranded Electrical Wires
300/500V:0.5mm~1mm
450/750V: 1.5mm~630mm
600/1000V:1.5mm~630mm
Product length:
50meters/roll ;100 meters/roll; Cut meters according to customer requirements
Standard
GB, IEC, can be customized American standard, European standard, Australian standard
Use range:
Fixed wiring with rated voltage of 450/750V and below and flexible installation wiring
Note:
The special types of fire-retardent,flame-resisting,low-fume and non-halogon as well as acid-alkaliproof for these cables may be supplied upon requests



Operating conditions for cable laying
When laying in the air, the center distance of single-core cables when laying in parallel: 185mm2 and below is twice the diameter of the cable; 240mm2 and above is 90mm.

Ambient air temperature: 30°C

The long-term maximum working temperature of the conductor: 90°C

Aluminum Core Smooth Xlpe Power Cable For House 0

Aluminum Core Smooth Xlpe Power Cable For House 1

Purpose

The cables are used in power transmission and distribution systems with rated voltages 0.6/1, 1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, and 26/35KV.



Features
The allowable long-term maximum operating temperature of the cable conductor is 90°C;

When short-circuited (the longest duration is not more than 5s), the maximum temperature of the cable conductor does not exceed 250°C;

When laying cables, the ambient temperature should not be lower than 0°C;

The bending radius of the cable is not less than 15 times the outer diameter of the cable;
