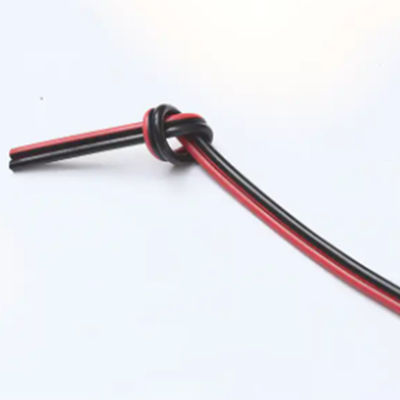

Two Color Parallel Line Speaker Power Cable For Household Appliances

  • Two Color Parallel Line Speaker Power Cable For Household Appliances
  • Two Color Parallel Line Speaker Power Cable For Household Appliances
  • Two Color Parallel Line Speaker Power Cable For Household Appliances
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number Speaker Cable
Minimum Order Quantity 1 Roll
Price $0.01 - $2.00/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature -15℃~+105℃ Conductor Copper 99.995%
Color Red And Black Or Customer's Requirement Voltage 450/750v
Tensile Strength Soft, Resistant To Bending Specification Complete Specifications
USE Household Appliances, Instruments And Meters Number Of Cores 2
High Light

Household Appliances Speaker Power Cable

,

Two Color Speaker Power Cable
Leave a Message
Product Description
Two Color Parallel Line Speaker Power Cable For Household Appliances 0
Products Description
Application:
* Twin Flat Speaker Cable is for the connection of loudspeaker, home theater or audio system.
* For connecting power amplifier and broadcasting systems, transmitting the audio signals amplified by the amplifier.
Name RVB Flame Retardant Broadcasting Parallel Wire
Color Red and black lines
Outer cover Environmentally friendly new material PVC sheath
Meters 100M/roll



Nominal cross-sectional area mm²
Construction of conductor No.of wires/dia mm
Insulation thickness mm
Appros.overall diameter mm
Max.d.c,resistance at 20℃ Ω/km
Min.insulation resistant at
79℃ MΩ.km
Current rating in air at 25℃ A
Approx .cable weight kg/km
2x0.3
16/0.15
0.6
2.3x4.3
69.2
0.016
7.4
12.5
2x0.4
23/0.15
0.6
2.5x4.6
48.2
0.014
9.0
16.0
2x0.5
28/0.15
0.8
3.0x5.8
39.0
0.016
10.0
22.0
2x0.75
42/0.15
0.8
3.2x6.2
26.0
0.014
13.0
28.0
2x1.0
32/0.20
0.8
3.4x6.6
19.5
0.010
16.0
46.0
Two Color Parallel Line Speaker Power Cable For Household Appliances 1
Two Color Parallel Line Speaker Power Cable For Household Appliances 2
Two Color Parallel Line Speaker Power Cable For Household Appliances 3
Two Color Parallel Line Speaker Power Cable For Household Appliances 4
Two Color Parallel Line Speaker Power Cable For Household Appliances 5
Two Color Parallel Line Speaker Power Cable For Household Appliances 7
Two Color Parallel Line Speaker Power Cable For Household Appliances 8
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, we do.
