Cat6a 500MHz 4 Pairs 23AWG 28AWG Fiber Optic Patch Cord 1M 3M 5M
| Brand Name | Jiangnan |
|---|---|
| Certification | CE，CCC，SABS，TUV，RoHS |
| Minimum Order Quantity | 1 Roll |
| Price | $0.38/meter |
| Packaging Details | Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters) |
| Supply Ability | 50000meters<7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Jiangsu China | Model Number | Cat6A |
|---|---|---|---|
| Number Of Conductors | 8 | Length | 0.5m/1m/2m/5m/customized |
| Conductor | Copper | Color | Customized |
| Insulation | HD-PE | Core | 4 Pairs 8 Core |
| High Light | 28AWG Fiber Optic Patch Cord,Cat6a Fiber Patch Cord 500MHz |
||
Product Description
Specification

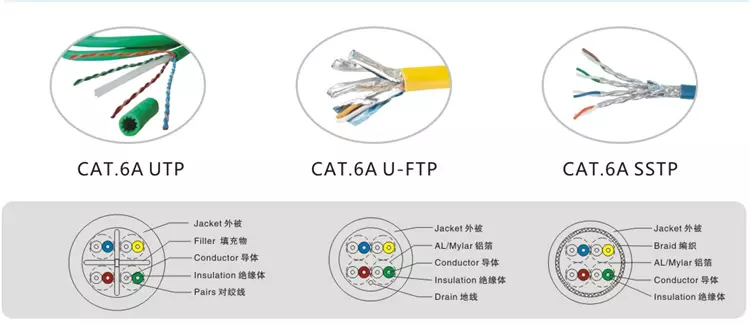

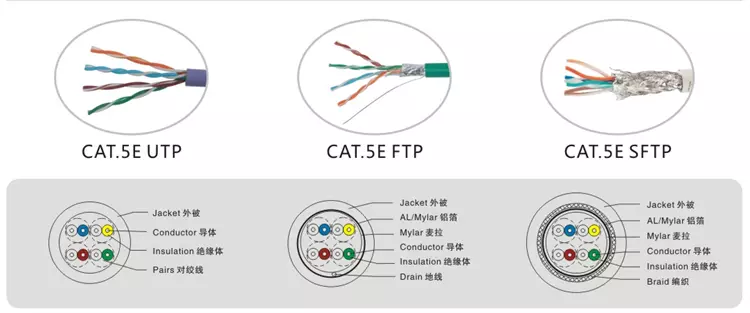

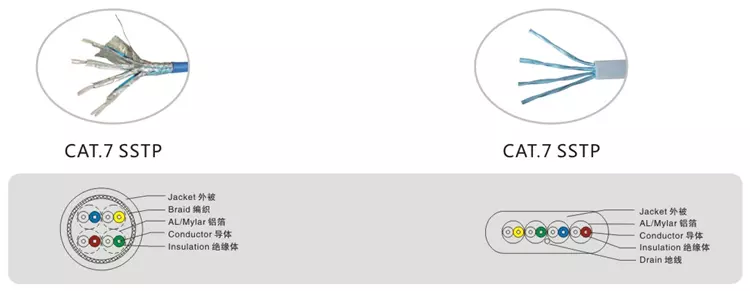

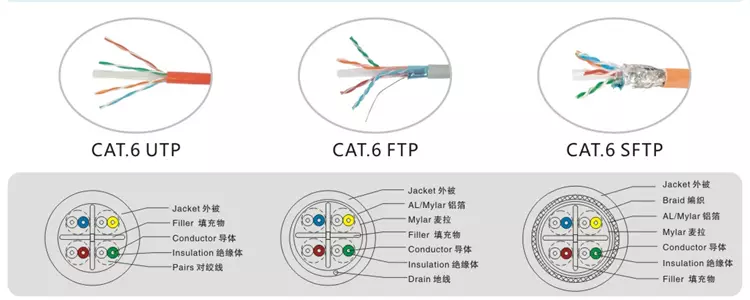

UTP/FTP/SFTP/STP CAT5E/CAT6/CAT6A/CAT7 Patch cord Cable 1M/3M/5M/10M(High Performance)
Specification
1.Conductor:24/26AWG/32AWG copper,CCA,HCCA,8*7*0.12;8*7*0.18;8*7*0.08 etc
2.Insulation:0.92mm+/-0.06HDPE/PE
3.Pairs:4pairs
4.Shield:AL Foil,Braids.
5.Temperature Range:-20 up to +75°
6.Conductor Resistance:Max. 9.38 ohm/100m
7.Resistance Unbalance:Max.2%
8.Insulation Resistance:Max. 150 ohm/Km
9.Mutual Capacitance:Max,5600pF/100m
10.Capacitance Unbalance:Max. 330pF/100m
11.Impedance:100+/-15
12.Spark Test:2000V
13.Velocity of propagation:67%
Applications:
1.LAN Network System
2.Computer Network Distributing System
3.Telecommunication Network System
4.Testing Equipment System
5.CATV System
Specification
1.Conductor:24/26AWG/32AWG copper,CCA,HCCA,8*7*0.12;8*7*0.18;8*7*0.08 etc
2.Insulation:0.92mm+/-0.06HDPE/PE
3.Pairs:4pairs
4.Shield:AL Foil,Braids.
5.Temperature Range:-20 up to +75°
6.Conductor Resistance:Max. 9.38 ohm/100m
7.Resistance Unbalance:Max.2%
8.Insulation Resistance:Max. 150 ohm/Km
9.Mutual Capacitance:Max,5600pF/100m
10.Capacitance Unbalance:Max. 330pF/100m
11.Impedance:100+/-15
12.Spark Test:2000V
13.Velocity of propagation:67%
Applications:
1.LAN Network System
2.Computer Network Distributing System
3.Telecommunication Network System
4.Testing Equipment System
5.CATV System
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance, balance before shipment
1. Any inquiries will be replied within 24 hours.
2. OEM/ODM available
1) Printing your logo on the cable.
2) Printing your logo on the pull our box, make according to your design.
3) Any your idea on cable, packing box are available.
3. High quality, reasonable and competitive price, fast lead time.
4. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
5. Faster delivery
Sample order in stock, and 3-7 days for bulk production.
6. Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.
You also can choose your own shipping forwarders.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance, balance before shipment
1. Any inquiries will be replied within 24 hours.
2. OEM/ODM available
1) Printing your logo on the cable.
2) Printing your logo on the pull our box, make according to your design.
3) Any your idea on cable, packing box are available.
3. High quality, reasonable and competitive price, fast lead time.
4. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
5. Faster delivery
Sample order in stock, and 3-7 days for bulk production.
6. Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.
You also can choose your own shipping forwarders.
