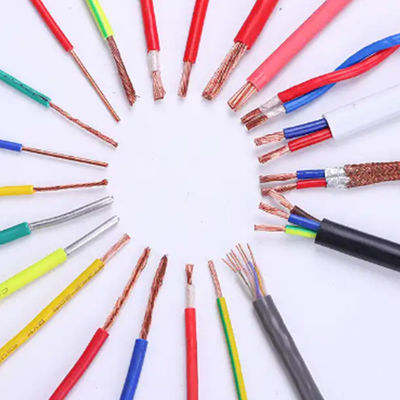

BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m

  • BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m
  • BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m
  • BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number BVR
Minimum Order Quantity 100 Meters
Price $0.02 - $0.40/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 50/750V Copper Conductor PVC Insulated Unsheathed Wire Standard JB/T 8734.5-2016
Material 99.995% Pure Copper Type Insulated, Electrical Cable Wires Copper For House Wiring
Conductor Material Copper Insulation Material PVC
Insulation PVC Insulation Cable MOQ 100meters
Packing 100m/roll Color Customer's Requirement
High Light

BVR 10mm Electrical Wire

,

BVR Insulated Stranded Wire

,

Insulated Stranded Wire 100m
Leave a Message
Product Description

Copper wire BV/BVR 1.5 mm 2.5mm 4mm 6mm 10mm PVC Insulation Electrical Wiring Building House Wiring Cable

Products Description

BVR wire is a special soft wire for power distribution cabinet, also called secondary wire. Insulated flexible wire with copper core polyvinyl chloride, which is used in occasions where flexibility is required for fixed wiring. It is popular among electricians and building decoration personnel.

Copper core insulated flexible wire BVR-450/750V-2.5mm²


What do Bv and Bvr wires mean
1. Bv wire refers to single-core hard copper wire. This type of wire is relatively hard and has a long service life. It can be used as cables and wires for daily appliances and instruments.
2. Bvr refers to a single-core multi-strand flexible wire. This type of wire is made of soft material and is suitable for wearing pipe bends, indoor exposed wiring, and suitable for screw crimping and so on.



Copper core insulated flexible conductor BVR-450/750V-2.5mm² There are various types of wires on the market. When choosing wires, we try to choose fire-resistant and flame-retardant wires. As the name suggests, fire-resistant and flame-retardant wires have good fire-resistant and flame-retardant effects. In case of a fire in the home circuit, this type of wire can prevent the fire from spreading and avoid greater losses in the home. When purchasing products, we can use a lighter to ignite the wire. When we remove the lighter, the wire will automatically turn off, indicating that this type of wire has good flame retardancy.
When purchasing products, we need to pay attention to the quality of the product. For example, we can check whether the copper core of the wire is copper-colored, whether the copper core of the wire is in the middle, whether the thickness of the insulation layer is uniform, whether the wire has a certificate of conformity, and the information on the product surface Whether the logo is completely complete and clear, etc.

BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m 0
BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m 1
BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m 2
Product Name
Copper conductor PVC insulated wire
Material
Copper+PVC
Colour
red/yellow/blue/green/yellow green
Adaptable Voltage (v)
U0/U is 450/750V, 300/500V and 300/300V
Specification
1.5㎟-400㎟
MOQ
100m
Global recruitment of brand agents ,OA Payment acceptable
If you need more Type, You can click"Contact Supplier" or "Send Inquiry"button to contact us.
1. Product use
A)The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.
B)The permissible continuous operating temperature of cables: BV-105 is not more than 150C, others are not more than 70℃
2.Manufacture length:
A)Coil length of cable (wire) is 100m, filled reel length not less than 100m. Short length not less than 10m can be delivered.
B)Any length can be delivered against agreement. Length error not more than +0.5%
3.Product structure, size and reference data
60227 IEC 01( BV) Rated Voltage:450/750V
Nominal
cross-sectional
area mm2
Construction of conductor No.of wire/dia mm
Insulation
thickness
mm
Outer
diameter mm
Max.d.c,
resistance at 20°CQ/km
Min.msulation
resistance at
70°CMQ-km
Current rating in air
at 25 °C A
Approx.cable weight kg/km
0.5
1/0.8
0.6
2.4
36
0.015
13
8.3
0.75
1/0.97
0.6
2.6
24.5
0.012
17
10.9
0.75
7/0.37
0.6
2.8
24.5
0.014
17
11.7
1
1/1.13
0.6
2.8
18.1
0.011
20
13.6
1
7/0.43
0.6
3
18.1
0.013
20
14.7
1.5
1/1.38
0.7
3.3
12.1
0.011
25
19.9
1.5
7/0.52
0.7
3.5
12.1
0.01
25
21
2.5
1/1.78
0.8
3.9
7.41
0.01
34
31.4
2.5
7/0.68
0.8
4.2
7.41
0.009
34
33.1
4
1/2.25
0.8
4.4
4.61
0.0085
44.5
46.3
4
7/0.85
0.8
4.8
4.61
0.0077
44.5
49
6
1/2.76
0.8
4.9
3.08
0.007
58
66
6
7/1.04
0.8
5.4
3.08
0.0065
58
69.4
10
7/1.35
1
6.2
1.83
0.0065
79.5
116
16
7/1.70
1
7.2
1.15
0.005
111
175
25
7/2.14
1.2
8.9
0.727
0.005
146
275
35
7/2.52
1.2
10
0.524
0.004
180
372
50
19/1.78
1.4
11.8
0.387
0.0045
225
496
70
19/2.14
1.4
13.5
0.268
0.0035
280
701
95
19/2.52
1.6
15.9
0.193
0.0035
344
969
120
37/2.03
1.6
17.4
0.153
0.0032
397.5
1202
150
37/2.25
1.8
19.5
0.124
0.0032
455
1478
185
37/2.52
2
21.7
0.0991
0.0032
519
1853
240
61/2,25
2.2
24.9
0.0754
0.0032
541
2417
300
61/2.52
2.4
27.6
0.0601
0.003
636
3024
400
61/2.85
2.6
31.2
0.047
0.0028
721
3825
BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m 3
BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m 4
BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m 7
BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m 8
BV/BVR 1.5mm - 10mm Electrical Wire PVC Insulated Stranded Wire Cable 100m 9

How to choose copper core insulated soft wire BVR-450/750V-2.5mm² home improvement wire
When we choose home improvement wires, we should pay attention to the specifications and models of the wires. The specifications and models of the wires are various, ranging from a few square meters to hundreds of square meters. When we choose the wires, we should choose according to the power of the electrical appliances in the home. For example, 3 kilowatt appliances can use 2.5 square meters of wires and so on. If the wire is used as the main line, then we need to choose the appropriate specification wire according to the power of all the electrical appliances on the wire loop.

FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc

2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.

3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
