Waterproof Pvc Wire Power Jiangnan Cable For Building

  • Waterproof Pvc Wire Power Jiangnan Cable For Building
  • Waterproof Pvc Wire Power Jiangnan Cable For Building
  • Waterproof Pvc Wire Power Jiangnan Cable For Building
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number BLVVB
Minimum Order Quantity 1 Roll
Price $1.4/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Delivery Time 3-7work days
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Building Conductor Type Stranded
Product Name Aluminum Core PVC Insulation Wire MOQ 1 Roll
Delivery Time 7-30 Days Packing Pallet
Insulation PVC Insulation Cable Type Insulated
Conductor Material Aluminum Insulation Material PVC
Jacket PVC Jacket Color Customer's Requirement
Length Customers Customized Sample Freely Sample
Certification ISO9001/CCC/ROHS/GB
High Light

waterproof jiangnan cable

,

building jiangnan cable
Leave a Message
Product Description

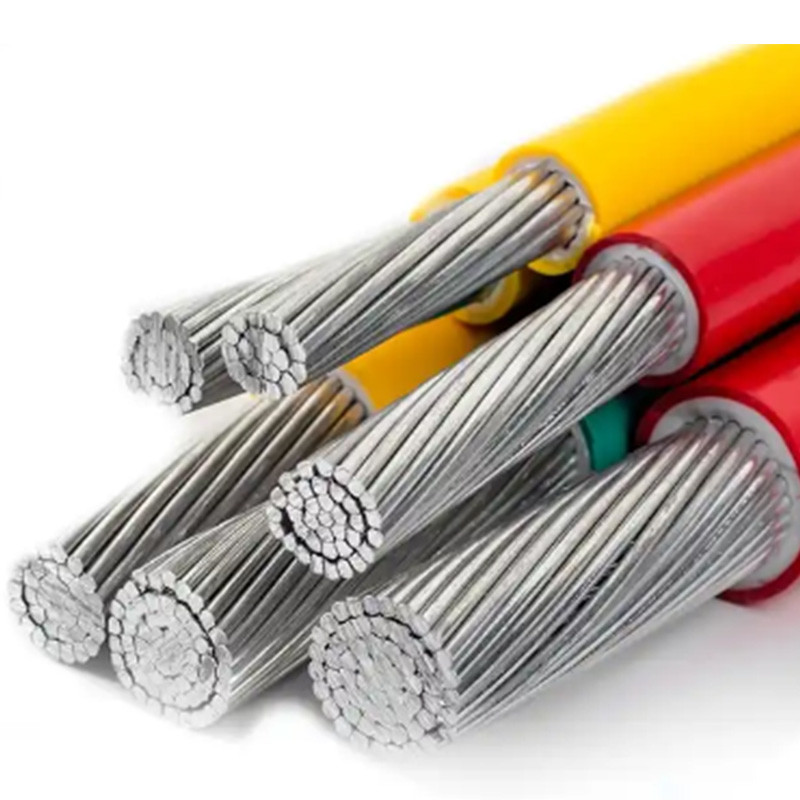

Architectural Lighting 300V BLVV/BLVVB Pure Aluminum Electrical Jiangnancable Waterproof Cable Pvc Wire Power Cables

Global recruitment of brand agents ,OA Payment acceptable
We can customized the size according to your requirement
● OEM service available based on official & legal authorization.
●Strict quality control system.
●Rapid delivery and feedback.
●Excellent quality with reasonable price.
●Professional teamwork service for you actively.
●Stock available, Free sample is available.

● Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
● Main of cables features
1.Uo/U is 450/750V,300/500,
2.Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable
temperature of other models should not exceed 70℃.
● Application:
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant, householdelectrical applance,insurment and telecommunication equipment
Product model:
Electrical Wire BLV/BLVV/BLVVB 450/750V Aluminum Cable
Product color:
Red/Blue/Yellow/Green/Yellow-Green
product material:
PVC sheath, oxygen-free pure copper
Specifications:
customizable
Certification
CE,CCC,SABS,TUV,RoHS

Stranded Electrical Wires
300/500V:0.5mm~1mm
450/750V: 1.5mm~400mm
600/1000V:1.5mm~300mm
Product length:
50meters/roll ;100 meters/roll; Cut meters according to customer requirements
Standard
GB, IEC, can be customized American standard, European standard, Australian standard
Use range:
Fixed wiring with rated voltage of 450/750V and below and flexible installation wiring
Note:
The special types of fire-retardent,flame-resisting,low-fume and non-halogon as well as acid-alkaliproof for these cables may be supplied upon requests



The difference between bv wire and bvr wire

1. The bv wire is a single-core copper wire, while the bvr wire is a multi-strand wire, and it is generally a soft wire. Generally speaking, bv wires are composed of one wiring, while bvr wires are composed of multiple conductors plus insulating layers, which are mainly suitable for occasions where the layout is relatively soft.

2. The bv wire is relatively hard. Generally speaking, it is suitable for relatively hidden places. It has a relatively long service life and is not easy to oxidize. However, it is more difficult to bend, and it is easy to be damaged once it is bent. The bvr wire is relatively soft, it can wear a tube, the service life is relatively short, and it is easy to oxidize.

3. The price is different. If you choose bvr wire, the cost is relatively higher. If a roll is 100 meters, the market price is about 300-500 yuan. If it is a bv wire, a roll is about 100-200 yuan.

Waterproof Pvc Wire Power Jiangnan Cable For Building 0
Waterproof Pvc Wire Power Jiangnan Cable For Building 1
Waterproof Pvc Wire Power Jiangnan Cable For Building 2
Waterproof Pvc Wire Power Jiangnan Cable For Building 3
Application
Waterproof Pvc Wire Power Jiangnan Cable For Building 4
Company Information
Waterproof Pvc Wire Power Jiangnan Cable For Building 5
Certifications
Waterproof Pvc Wire Power Jiangnan Cable For Building 6
Product packaging
Waterproof Pvc Wire Power Jiangnan Cable For Building 7
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes ,we do.
