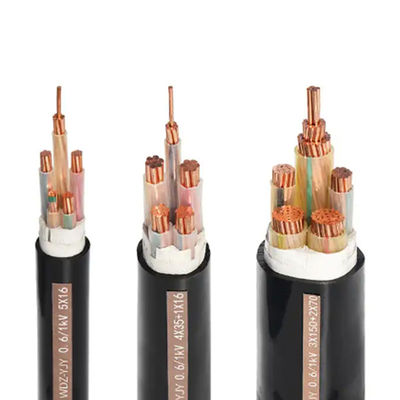

VV Copper Core Pvc Jacket Insulated Electrical Cable For Indoors / Tunnels / Ducts
| Place of Origin | Jiangsu China |
|---|---|
| Brand Name | Jiangnan |
| Certification | CE，CCC，SABS，TUV，RoHS |
| Model Number | VV |
| Minimum Order Quantity | 100 Meters |
| Price | $0.3/meter |
| Packaging Details | Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters) |
| Supply Ability | 50000meters<7days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | VV | Application | Underground |
|---|---|---|---|
| Conductor Type | Solid | Product Name | Copper Core PVC Insulation Wire |
| Conductor | Copper | Jacket | Pvc Jacket |
| Material | Standard Copper | Usage | Industrail Usage |
| Type | Insulated | Conductor Material | Copper |
| Insulation Material | Other | Color | Requirement |
| Insulation | PVC Insulation Cable | Standard | GB\CCC\IEC\UL |
| Core | 1/2/3/4/5 Cores | ||
| High Light | Tunnels power cable insulation,pvc Jacket insulated electrical cable,Ducts insulated electrical cable |
||
Product Description
Products Description
1.Standards
The cable is manufactured according to the standard GB 12706-91 or IEC60502.
It is suitable to be installed in the power transmission and distribution lines with rated voltage below(including) 0.6/1KV (U0/U).
2.Application
For laying indoors, in tunnels and in ducts, unable to bear external mechanical forces.
3.Operation Characteristic
The maximum operating temperature of the cable for long period use shall not exceed 70 ℃,the circuit temperature for 5 seconds not exceed 160 ℃. The cable is not limited by the difference of level when installed and the ambient temperature shall not be below 0℃. The minimum bending radius for single core cable is 40(D+d)mm, for multi core cable is 30(D+d)mm, (D and d are nominal outer diameter of main conductor of cable respectively if the main conductor is not round d=1.13 /s.S is the moninal cross sectional area of the main conductor ductor in mm).The single core armoured cable are only suitable for D.C.lines.
Cable model and name
| Model | Name | Scope of application |
| VV | Copper core PVC insulated PVC sheathed power cable | Indoors, tunnels and cable trenches, etc., do not need to bear external mechanical force. Single-core cables are not permitted to be laid in magnetic conduits. |
| VLV | Aluminum core PVC insulated PVC sheathed power cable | |
| VY | Copper core PVC insulated PE sheathed power cable | |
| VLY | Aluminum core PVC insulated PE sheathed power cable |
Application
Quality Inspection
Company Profile
Certifications
Product packaging
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 35KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc
2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 35KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc
2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
