IEC Rated PVC Insulated Power Cable for 3.6/6KV Transmission

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number VV
Minimum Order Quantity 100 Meters
Price $0.35/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number VV Application Underground
Conductor Type Solid Product Name Copper Core PVC Insulation Wire
Usage Industrail Usage Type Insulated
Conductor Material Copper Insulation PVC Insulation Cable
Standard GB\CCC\IEC\UL Core 1/2/3/4/5 Cores
Leave a Message
Product Description

Product Description

The PVC insulated power cables produced by our factory adopt IEC standards and are suitable for power transmission and distribution systems up to 3.6/6KV.
Executive standard: GB/T 12706-2002 (equivalent to IEC502), flame-retardant cables and fire-resistant cables also comply with IE332-3, IEC331, and can also be produced according to the technical requirements of users. PVC cables include vv cables, vv22 cables, vlv cables, vlv22 cables, zrvv cables, nhvv cables, zrvv22 cables, nhvv22 cables, sheathed wires.



Operating conditions for cable laying
● laying in air

1. When the single-core cables are laid in parallel, the center distance: 185mm2 and below is twice the cable diameter; 240mm2 and above is 90mm.

2. Ambient air temperature: 40°C

3. The long-term maximum working temperature of the conductor: 70°C



● direct burial laying

1. When the single-core cable is laid without contact, the cable center distance is twice the cable diameter.

2. Soil temperature: 25°C.

3. The long-term maximum working temperature of the conductor: 70°C.

4. Soil thermal resistance coefficient: 1.0℃.m/W.

5. Direct burial depth: 0.7m.

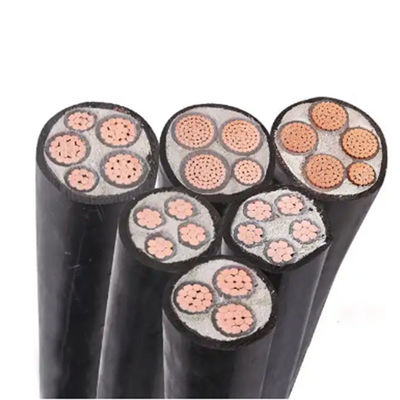

IEC Rated PVC Insulated Power Cable for 3.6/6KV Transmission 0

IEC Rated PVC Insulated Power Cable for 3.6/6KV Transmission 1





Scope of use

Copper core aluminum core VVVLV PVC insulated and PVC sheathed power cables are laid indoors, in pipelines and tunnels VYVLY PVC insulated and polyethylene sheathed power cables are laid indoors, in pipelines and in pipelines VV22VLV22 PVC insulated Steel tape armored PVC sheathed power cables are laid underground and can withstand external mechanical forces VV23VLV23 PVC insulated steel tape armored PE sheathed power cables.



Use characteristics

The long-term allowable working temperature of the cable conductor should not exceed 70°C, and the maximum temperature should not exceed 160°C when short-circuited (the longest duration is 5S).

The finished cable can withstand AC 50HZ, 3.5KV withstand voltage test at room temperature (without breakdown for 5 minutes).

The ambient temperature when laying the cable should not be lower than 0°C, the laying is not limited by the drop, and the maintenance is easy.

When laying the cable, the minimum bending radius should not be less than 10 times the outer diameter of the cable, the minimum bending radius of the armored cable should not be less than 12 times the cable, and the minimum bending radius of the five-core cable should not be less than 15 times the outer diameter of the cable.
