PVC/LSZH SC APC To SC APC Fiber Optic Patch Cord Simplex Fiber Jumper G652D

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number Patch Cord Cable
Minimum Order Quantity 1 Roll
Price $0.38/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model Number Fiber Optic Sc Connector, Single&Multi Fiber Type G652D/G657A1/G657A2
Network None End Face PC/UPC
Length Customized Lengths (1m/2m/3m/5m/10m) Connector FC / LC/SC/ST
Diameter 3.0mm,2.0mm,0.9mm Product Name Patch Cord
High Light

LSZH Fiber Optic Patch Cord


LSZH sc apc sc apc patch cord


Simplex Fiber Jumper G652D

Leave a Message
Product Description

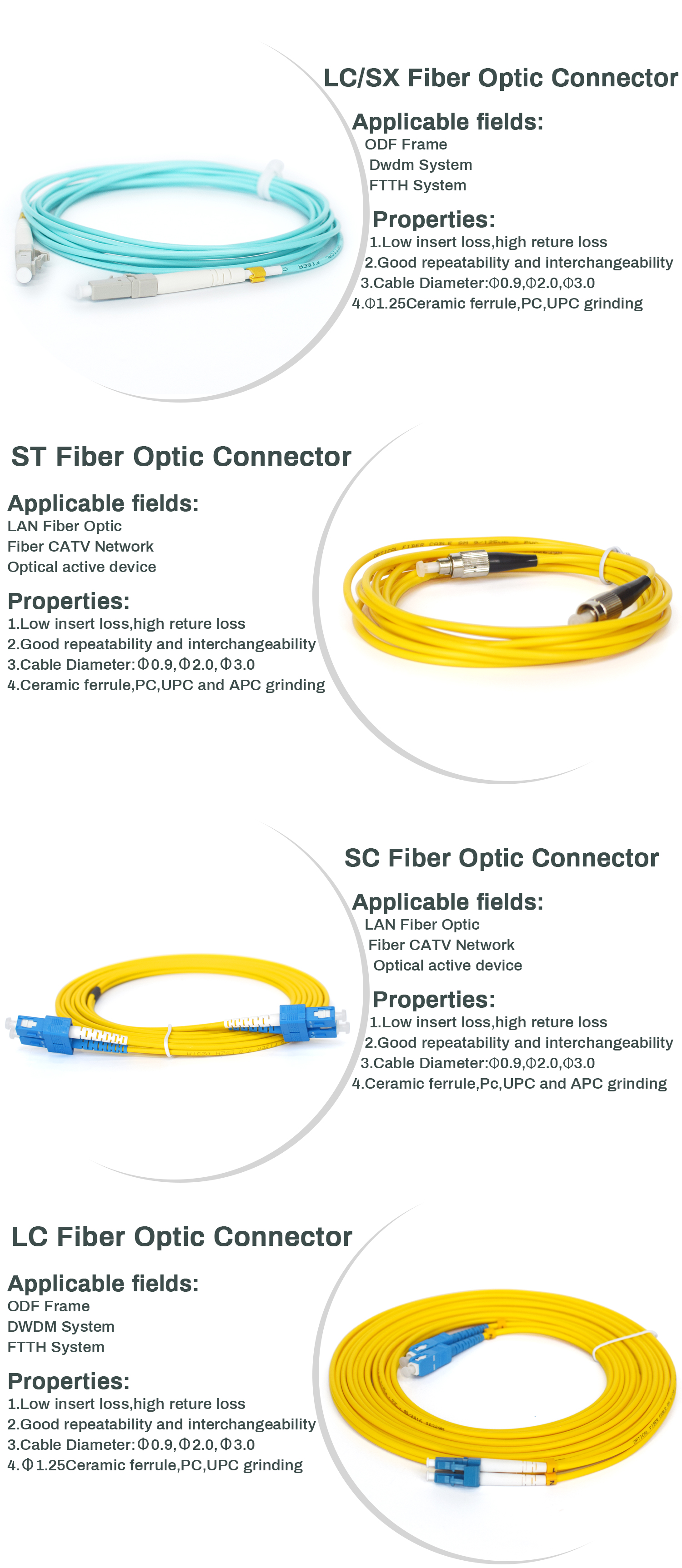

FC/SC/LC/ST Fiber Patch cord SM/MM Simplex/duplex cable 0.5M/1M/2M

1) Meets TUV, ISO9001, TLC, EIA / TIA, IEC NTT and bell core GR 326-core standards
2) Superior qualified standard: PC / UPC / APC polishing
3) Φ0.9mm, Φ2.0mm and Φ3.0mm cables are available
4) Single mode (9 / 125) or multimode (50 / 125 or 62.5 / 125) fiber available
5) Simplex / duplex connector available
6) 100% optic test (insertion loss and return loss)
7) Insertion loss: ≤0.2dB (PC), ≤0.2dB (UPC), ≤0.3 (APC)
8) Return loss: ≥45dB (PC), ≥50dB (UPC), ≥65dB (APC), ≥35dB
9) Operation temperature: -40~+85C
10) Customized specifications welcomed
Access network and local network in high electromagnetic interfering places.


Optical fiber jumper FC LC ST SC single-mode single-core yellow and white optical fiber pigtail

Optical fiber jumper is used as a jumper from the equipment to the optical fiber wiring link. It has a thicker protective layer and is generally used for the connection between optical transceivers and terminal boxes. It is used in some fields such as optical fiber communication systems, optical fiber access networks, optical fiber data transmission, and local area networks.

Optical fiber jumper (also known as optical fiber connector) means that both ends of the optical cable are equipped with connector plugs to realize the active connection of the optical path; one end with a plug is called a pigtail. Optical Fiber Patch Cord/Cable is similar to coaxial cable, except that there is no mesh shield. In the center is the glass core for light propagation. In a multimode fiber, the diameter of the core is 50 μm to 65 μm, roughly equivalent to the thickness of a human hair. The single-mode fiber core has a diameter of 8 μm to 10 μm. The core is surrounded by a glass jacket with a lower refractive index than the core to keep the fiber inside the core. On the outside is a thin plastic jacket to protect the envelope.

Connector Type: SC-SC
Mode: single mode
Polishing: PC
Insertion Loss: ≤0.2 dB
Return Loss: ≥52dB
Exchangeability: ≤0
Repeatability: ≤0.2dB/1000times
Operation Wavelenghth: 850nm,1310nm,1550nm
Operating Temperature: -30 °C +75 °C
Storage Temperature: 40 °C ~ +85 °C
Cable OD: 3.0mm/2.0mm
Cable Material: OFNR,LDZH&Polarization maintaining
Mode: 9/125
Fiber Cable Type: PVC 3.0mm
CE/Rohs/FCC: yes
Insertion Loss
Typical ≤0.2dB
Maximum ≤0.3dB
Return Loss
≤0.2dB (1000 times)
≤0.2dB (550Hz 1.5mm)
≤0.2dB (-40+85 sustain 100 hours)
≤0.2dB (+25+65 93 R.H.100 hours)
Product Description

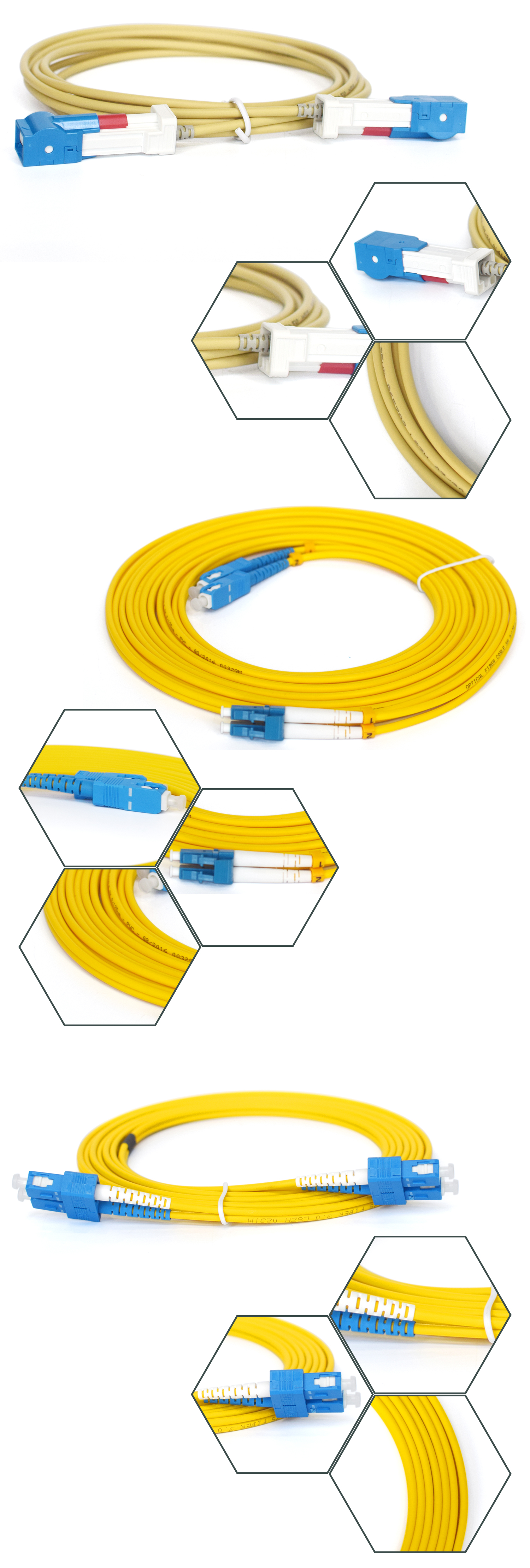

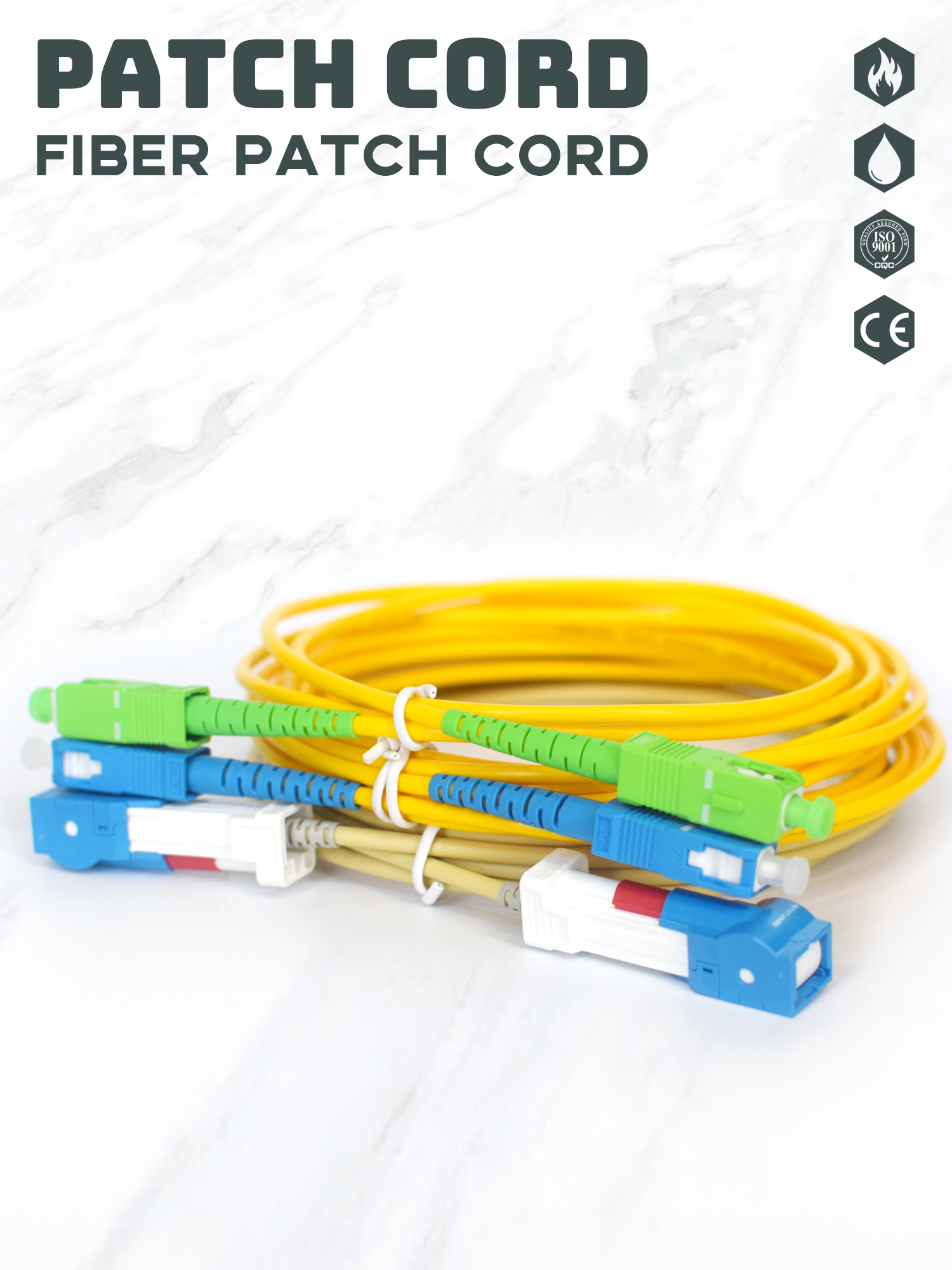

PVC/LSZH  SC APC To SC APC  Fiber Optic Patch Cord Simplex Fiber Jumper G652D 0
PVC/LSZH  SC APC To SC APC  Fiber Optic Patch Cord Simplex Fiber Jumper G652D 1
PVC/LSZH  SC APC To SC APC  Fiber Optic Patch Cord Simplex Fiber Jumper G652D 2
PVC/LSZH  SC APC To SC APC  Fiber Optic Patch Cord Simplex Fiber Jumper G652D 3
Packing & Delivery
PVC/LSZH  SC APC To SC APC  Fiber Optic Patch Cord Simplex Fiber Jumper G652D 4
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
