0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire

  • 0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire
  • 0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire
  • 0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire
  • 0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire
  • 0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number Coaxial Cable
Minimum Order Quantity 1Roll
Price $0.20 - $1.00/ meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 1000M/2000M MOQ 100Roll
Application Transmission Of CATV Signal And Large-capacity Communication Network Signal Product Name CCA
Size 0.03---8mm Type Solid ( Also Have Stranded)
High Light

8mm Copper Clad Aluminium Wire

,

0.03mm CCA Power Wire
Leave a Message
Product Description
Product Description

WE NOT ONLY CAN SUPPLY CABLE MACHINE FOR YOU, WE ALSO SUPPLY YOU THE ONE-STOP SUPPLY FOR CABLE MATERIAL,
SUCH AS :PVC,HDPE,LDPE,PP,LSZH,PBT,FRP,STEEL TAPE,STEEL WIRE,OIL JELLY,CCA WIRES
COPPER WIRES....



Properties Physical properties
AC conductivity greater than 5 MHz - equal to copper
DC conductivity 62.9% min, 65.0% calibrated
Aluminum volume percentage (10A-10H)90% (1-15H)85%
The percentage of aluminum by weight (10A-10H)73.2% (1-15H)63%
Copper volume percentage (10A-10H) 10% (1-15H) 15%
The percentage of copper by weight (10A-10H)26.8% (1-15H)37%
Tensile strength after annealing 11.2 kg per square millimeter
Ridge tensile strength 19.7 kg per square millimeter
Coefficient of thermal expansion 22.9PPM per degree Celsius (percentage)



It is suitable for electric power and electrical appliances industry, and the category level is international and domestic.



Copper Clad Aluminum Magnesium Wire 0.12mm 0.18mm 0.6mm Stranded Raw Material CCAM CCA Wire
Technical Characteristics
Clad type
Plated type
15H
15A
Hard(H)
Anneal(A)
Size range(mm)
0.12-8.00
0.12-8.00
0.12-8.00
0.12-8.00
Copper content(%) by weight
36-40
36-40
6-15
6-15
Conductivity(%)at 20℃
55
55
35-43
35-43
DC Resistivity(Ωmm2/m)
0.03085
0.03085
0.04718
0.04718
Tensile strength (Mpa)
≥220
≥160
≥250
≥180
Elongation(%)
≥1
≥8
≥1
≥8
Density(g/cm3)
3.63
3.63
2.85
2.85
AS A CABLE MANUFACTURE, WE NOT ONLY CAN SUPPLY CABLE MACHINE FOR YOU, WE ALSO SUPPLY YOU THE ONE-STOP SUPPLY FOR CABLE MATERIAL
SUCH AS :PVC ,HDPE ,LDPE,PP ,LSZH ,PBT,FRP,STEEL TAPE,STEEL WIRE ,OIL JELLY,CCA WIRES,COPPER WIRES.....


Application:
In high frequency signal transmission field, it is applied to:
* Standard Material of Conductor in CATV Coaxial Cable;
* 50 Ohm Radio Frequency Aerial;
* Leaky Cable;
* Soft Coaxial Radio Frequency Cable;
* Data Cable

In power transmission field, it can be applied to:
* Stranded wire;
* Power Cable;
* Control Cable;
* automotive cable;
* Building distribution wire;
* Busbar;
* Radio Frequency shielding;

In special electromagnetic wire, it can be applied to:
* Coils in motor and fans, mahjong machine, Loudspeakers
* Voice coils (e.g. in Headphone, Headset, …)
* Windings
Conductor
Characteristic
COPPER WIRE
(Annealed)
CCAM IRE
(Annealed)
ALUMINUM WIRE
(Annealed)
Copper Percent in Volume(%)
100
15
0
Density(g/cm3)
8.89
3.5
2.70
Length Comparison based on same Diameter and same weight
1:1
2.5:1
3.29:1
Resistivity(ohm.mm2/m)
0.01724
0.035
0.02740
Tensile strength(Mpa)
215-265
≥160
68-107
Elongation(%)
≥20
≥10
≥15
0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire 0
0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire 1

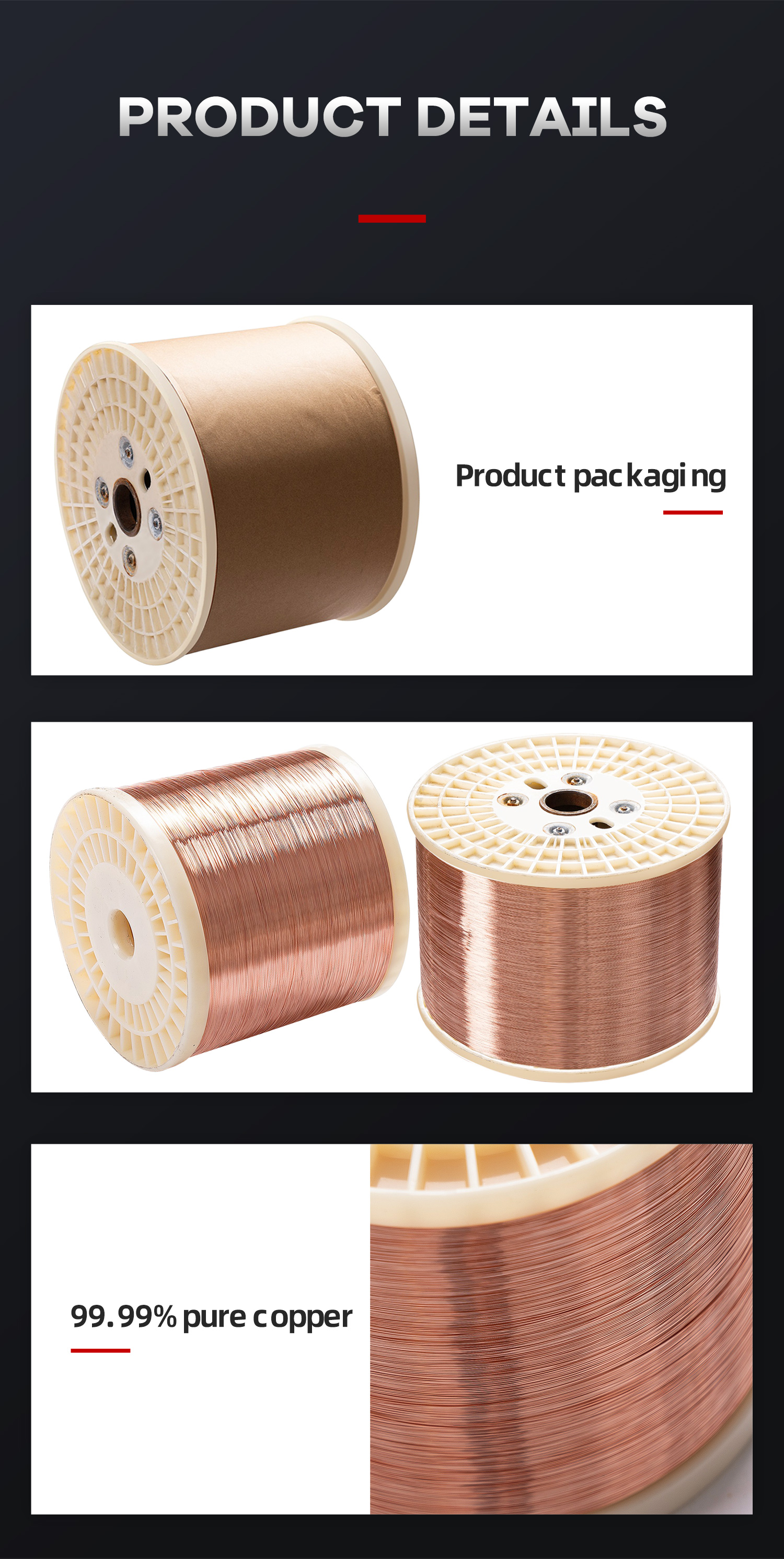

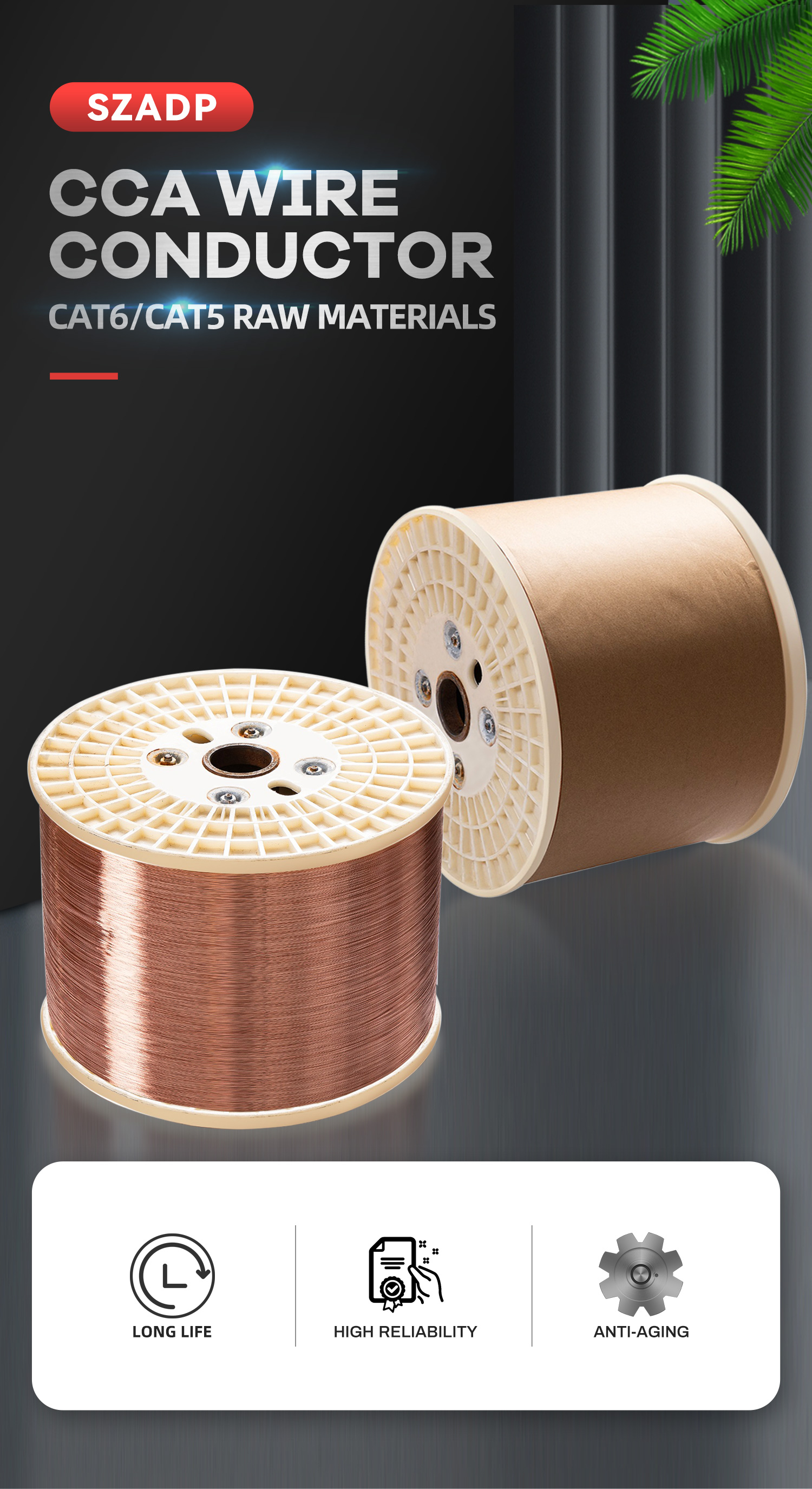

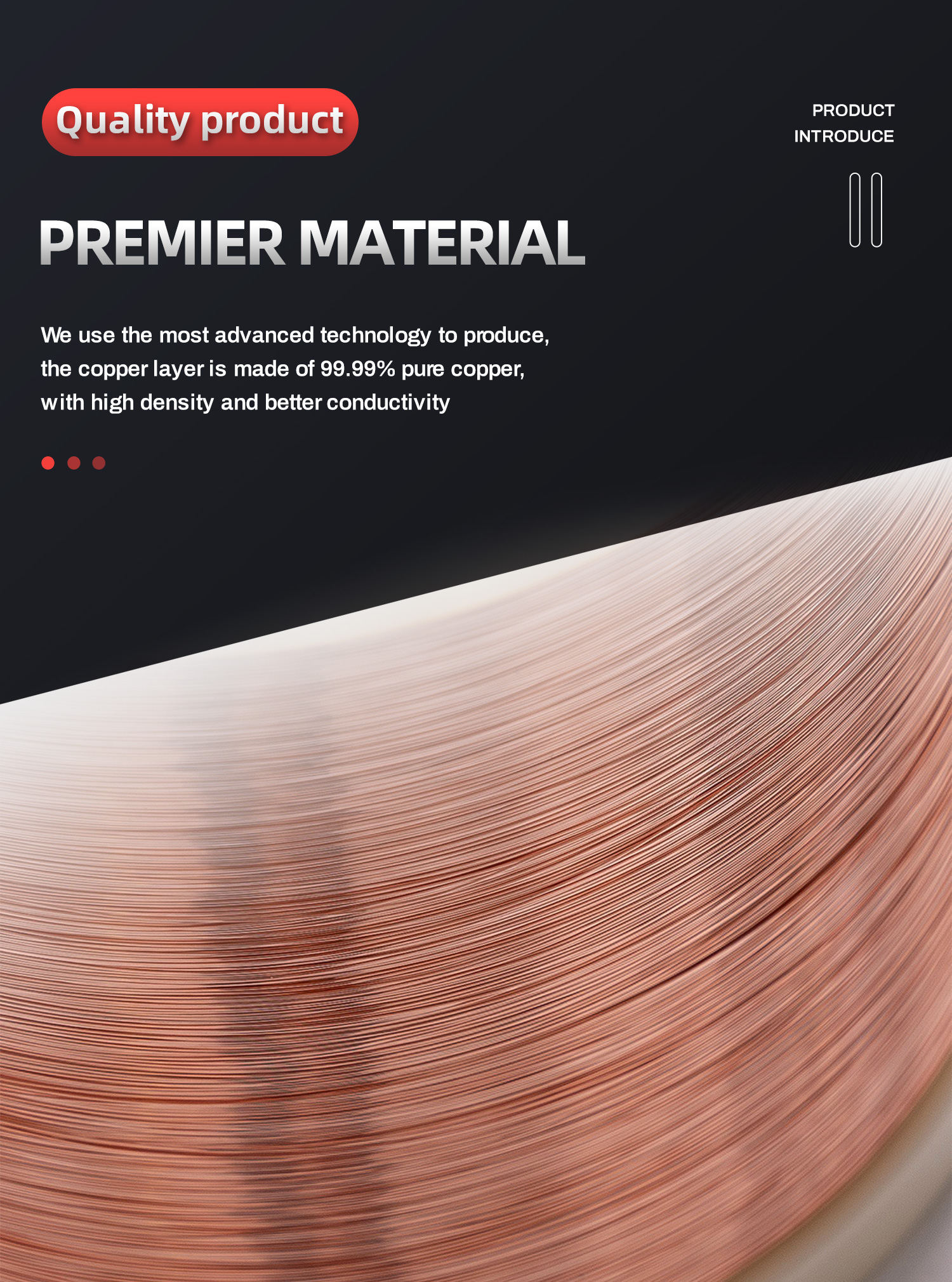

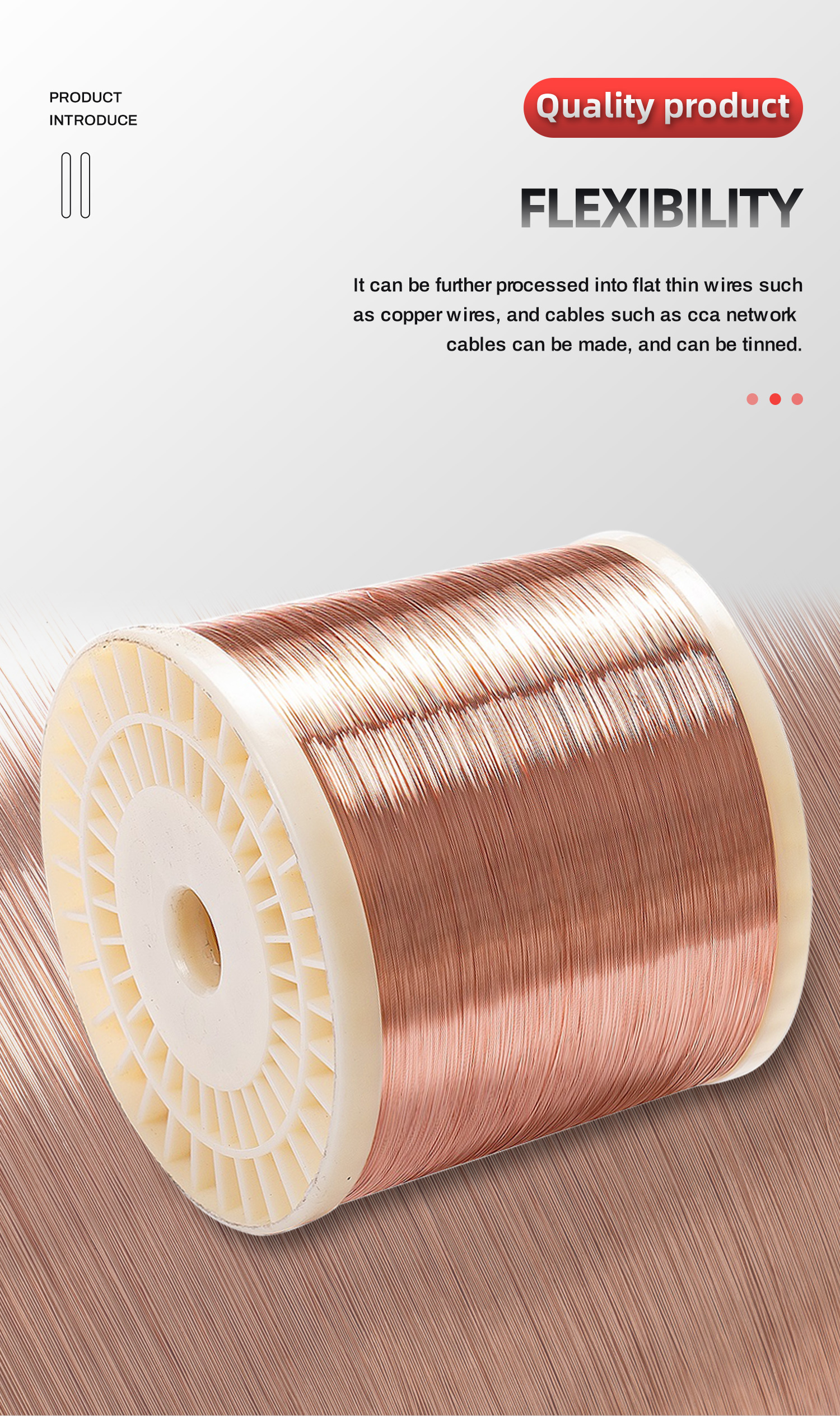

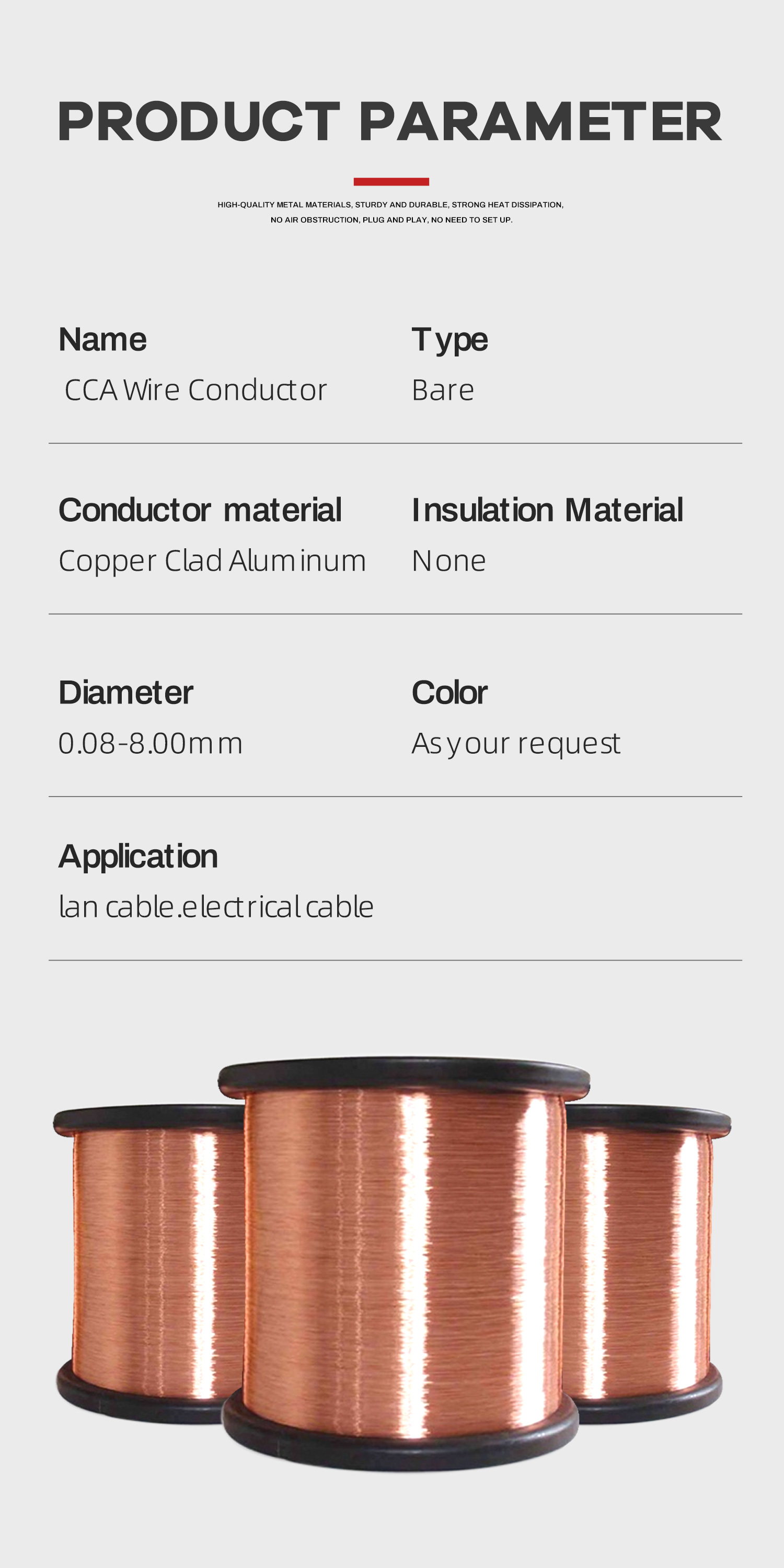

Product Show
0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire 2
0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire 3
0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire 4
0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire 5
0.03mm-8mm Solid Copper Clad Aluminium Wire CCA Power Wire 6
