SAA Approval 2 3 Core PVC Flat Cable 1.5MM 4MM 10MM Customized Length

Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE,CCC,SABS,TUV,RoHS
Model Number Flat Cable
Minimum Order Quantity 1 Roll
Price $0.25/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Delivery Time 3-7work days
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Twin Flat Earth Cable Packing Pallet
Sample Freely Sample Sheath Material Pvc
Type PVC Insulated Conductor Material Copper
Color Customer's Requirement MOQ 1 Roll
Length Customized Length Service OEM ODM Accept
High Light

Customized Length PVC Flat Cable


3 Core Flat Cable 1.5MM


SAA PVC Flat Cable

Leave a Message
Product Description

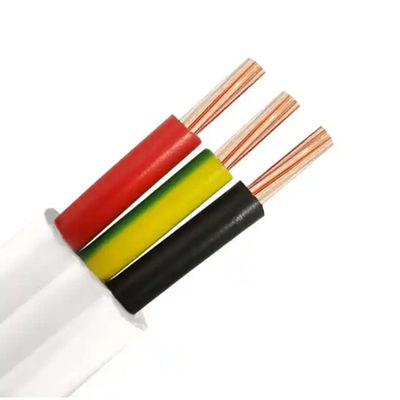

SAA Approval 2 3 Core Cable 1.5MM 2.5MM 4MM 6MM 10MM PVC Insulated Twin & Earth TPS Flat Cable Electrical Cord Wire

Products Description
Flexible annealed copper
PVC V-90
Outer sheath
3V-90PVC,generally white(customizable)
Generally black,green/yellow,red(customizable)
Rated voltage
Rated temperature
Mobile installation:-5℃ to +90℃,fixed installation:-40℃


TPS two-core or two-core PVC insulated sheathed flat cable with ground wire SAA certified cable is suitable for household, commercial and industrial direct buried or underground transmission pipelines, and will not damage the conductor and PVC. It is especially suitable for the internal installation of mobile homes, containers, refrigerators and RVs exported to Australia.


TPS two cores or two cores with ground wire PVC insulated sheathed flat cable SAA certified cable

7 bundled or single bare copper conductors complying with AS1125

Special PVC V-90 core wire insulation, generally black, green/yellow, red

When there are three cores, the green/yellow core wires are placed in the middle, and the multi-core wires are arranged in parallel

Special PVC 3V-90 outer sheath, usually white

(colors can be customized according to customer requirements)

*2.5mm²-6mm² The cross-sectional area of the ground wire is 2.5mm²

*10mm² The cross-sectional area of the ground wire is 4mm²

*16mm² The cross-sectional area of the ground wire is 6mm²

It can also be produced uniformly for the same cross-sectional area.


Flat cables are suitable for lifting equipment, cable tracks, trolleys, transmission machinery, elevators, driving, tower cranes, telescopic machinery and other mobile electrical power transmission lines and control, lighting, communication channels in special places, and can also be used in closed indoor environments Connection and installation of moving mechanical parts, etc. Compared with round cables, flat cables have the advantages of saving installation space and cost, and their bending radius is smaller than that of round cables when the number of core wires is the same.

Product Details
SAA Approval 2 3 Core  PVC Flat Cable 1.5MM 4MM 10MM Customized Length 0
More Products
SAA Approval 2 3 Core  PVC Flat Cable 1.5MM 4MM 10MM Customized Length 1
Our Factory
SAA Approval 2 3 Core  PVC Flat Cable 1.5MM 4MM 10MM Customized Length 2
SAA Approval 2 3 Core  PVC Flat Cable 1.5MM 4MM 10MM Customized Length 3
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight.
Pls kindly contact us.

5. Does your company accept OEM production?
Yes, we do.
