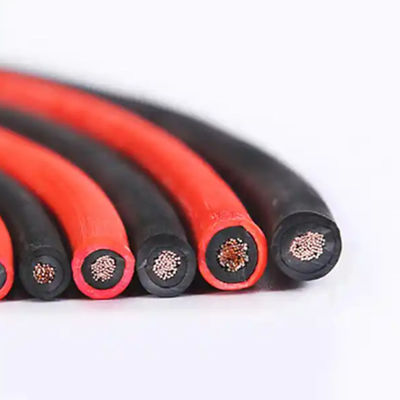

Standard EN50618 Solar System Cable 8mm 4mm Solar Cable 100m

  • Standard EN50618 Solar System Cable 8mm 4mm Solar Cable 100m
  • Standard EN50618 Solar System Cable 8mm 4mm Solar Cable 100m
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE, RoHS, CCC,ISO
Model Number Solar Cable
Minimum Order Quantity 1 Roll
Price $0.10 - $2.50/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters/7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number Solar Cable; H1Z2Z2-K/PV1-F Application Power Station
Conductor Type Stranded/solid Product Name Solar Cable
Insulation XLPE/XLPO Insulation Color Customer's Requirement
Temperature Range -40'C~ +90 'C Advantage 27 Years Production Experiences
Insulation Material XLPE/XLPO Conductor Tinned Copper Conductor
Sample Free Sample Keyword PV Solar Power Cable Wire For Solar Panel
High Light

EN50618 Solar System Cable

,

EN50618 4mm Solar Cable

,

Solar System Cable 8mm
Leave a Message
Product Description
SOLAR CABLE H1Z2Z2-K PV1-F

Solar technology is one of the development directions of green energy, and solar cables (special cables for photovoltaic power generation) are widely used in photovoltaic power supply systems and similar applications, such as free hanging, movable, fixed installation and buried underground building covering systems, and Indoors, outdoors, hazardous explosion areas, industry and agriculture, play an integral role in the development of sustainable energy. The company focuses on the production, R&D and sales of photovoltaic and special cables. The products have been sold to more than 100 countries and regions around the world, and have been widely recognized by customers.



PV1-F double core photovoltaic cable
Pv1-F photovoltaic cable is a special cable for solar photovoltaic modules in the system. It has the characteristics of weather resistance, high temperature resistance, friction resistance, etc., and has a long service life.



Standard: EN50618 Construction
Conductors:Tinned copper conductor, class5
Insulation: Halogen-free cross-linked, flame retardant compound
Sheath: Halogen-free cross-linked, flame retardant compound

Application: *For free and stationary or for freely suspended outdoor and indoor cabling between the solar modules, or between the module strings and the DC/AC inverter, for example in line with HD 60364-7-712 on PV systems, and EN 50618 on H1Z2Z2-K cable type,etc....;
*Short circuit and earth fault protected per EN 50618, Annex A, and per HD 60364-5-52Photovoltaic systems with DC system voltage up to 1800 V to ground.
* As per EN 50618, Annex A, inside electrical installation pipe/ duct/ channel, plaster, and appliance, as well as inside or connected to double insulated/ protected appliance or system of protection class II.
Technical characteristics
CPR class
Eca
Test voltage
6.5 kV
Rated voltage
1/1 kV AC, 1.5/1.5 kV DC
Max. voltage
1.8 kV
Min. temp. for cable laying
-25°C
Working temperature
-40°C to 90°C
Working temp. of max. 20000h
120°C
Max. short-circuit temperature
250°C
Min. bending radius
4xD
Water Resistant
AD8
Production Description
Standard EN50618 Solar System Cable 8mm 4mm Solar Cable 100m 0
Quality Guarantee
Standard EN50618 Solar System Cable 8mm 4mm Solar Cable 100m 1
Advantages
Standard EN50618 Solar System Cable 8mm 4mm Solar Cable 100m 2
Our Factory
Standard EN50618 Solar System Cable 8mm 4mm Solar Cable 100m 3
Certifications
Standard EN50618 Solar System Cable 8mm 4mm Solar Cable 100m 4
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, we do.
